991072 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Steering Controls Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki

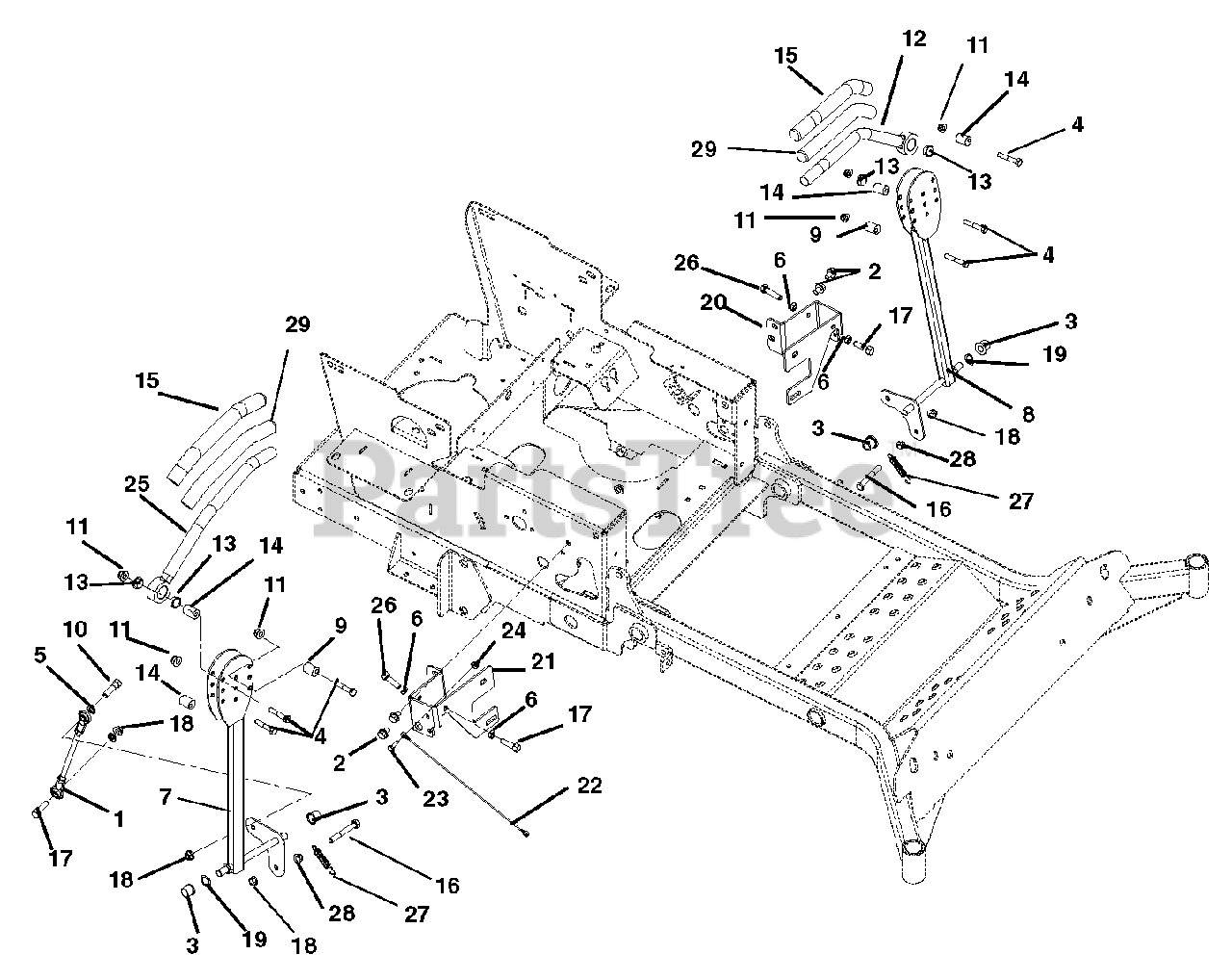

Steering Controls Parts Diagram

  • Title

1

Gravely 03251700

Assembly, Steering Linkage

$

$

Not available

2

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00 Nylon

$2.49

$

In Stock, only 3 left!

0

4

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

5

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03773551

Weldment, RH Control Arm

$134.99

$

Usually ships in 4-12 days

0

8

Gravely 03773651

Weldment, LH Control Arm

$134.99

$

Usually ships in 4-12 days

0

9

Gravely 05500932

Eccentric

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

11

Gravely 06545400

Nut, Nyloc Flange .375-16
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

Handle Weldment Left-Hand

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 05525200

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05501517)

$

$

Not available

14

Gravely 09235400

Spacer

$

$

Not available

15

Gravely 03929100

Grip, Handlebar

$14.99

$

In Stock, only 1 left!

0

16

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03704900

Wave Washer

$2.49

$

In Stock, only 4 left!

0

20

Gravely 03754753

Stop, Steering-Left Hand

$72.99

$

Usually ships in 4-12 days

0

21

Gravely 03752753

Stop, Steering-Right Hand

$77.99

$

Usually ships in 4-12 days

0

22

Gravely 06900317

Cable, 12.0 LANYARD, Nylon

$3.49

$

In Stock, only 2 left!

0

23

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06500012

Nut, Nyloc Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

25

Gravely 09235600

Handle Weldment Right-Hand

$93.99

$

In Stock, only 1 left!

0

26

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 08300516

Spring, External,.061 x .50 x 3.0

$14.99

$

In Stock, only 2 left!

0

28

Gravely 06534900

Nut-Spin Lock-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 03988300

Tube, .88ID x 1.00OD x 10.75

$14.99

$

In Stock, only 2 left!

0
