991072 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Hydro Drive Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki

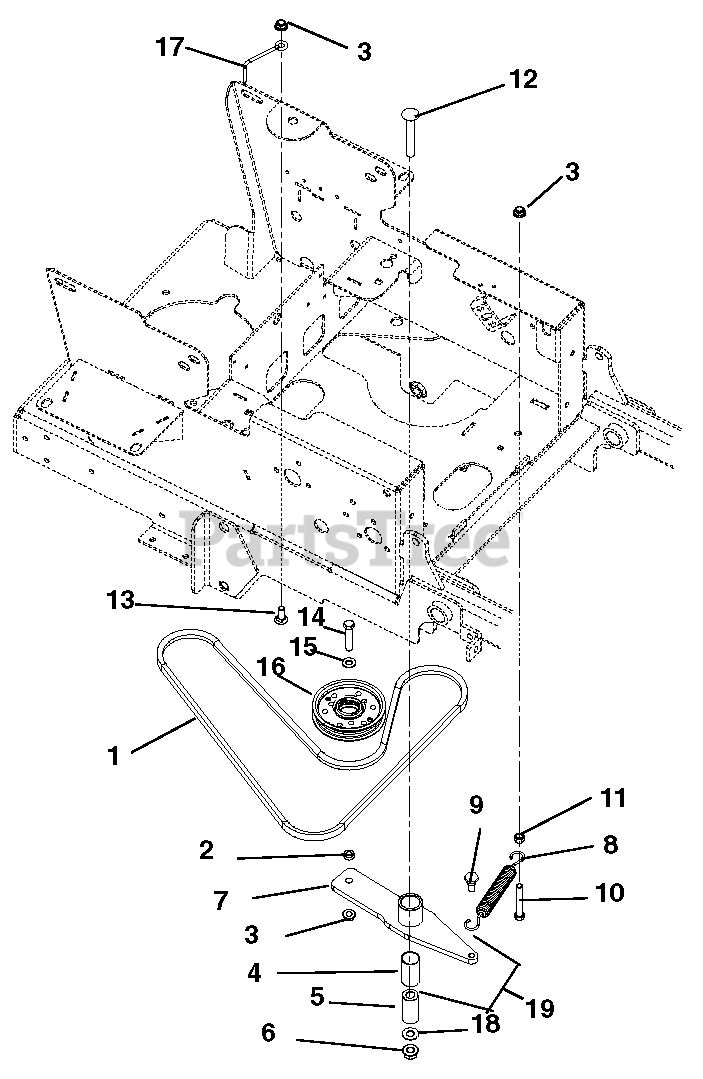

Hydro Drive Parts Diagram

  • Title
1

Gravely 07211500

Belt, 4L 67.47 Wrapped

$50.99

$

In Stock, only 3 left!

0

2

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

3

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 01581700

Bushing, Spacer .502 x .997 x 2.03

$5.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03792900

Weldment, Hydro Drive Idler Arm
(Superseded to 03792951)

$77.99

$

Usually ships in 4-12 days

0

8

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

9

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06529400

Nut, Locking-Center .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

14

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

15

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07312500

Assembly, 4" Idler
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

17

Gravely 00391900

Belt Finger

$20.99

$

In Stock, only 2 left!

0

18

Gravely 06436400

Washer, Flat-STL.511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 03796200

Assembly, Idler Pivot Arm (Includes item 4 and 7)

Note: (Includes item 4 and 7)

$74.99

$

In Stock, only 1 left!

0
