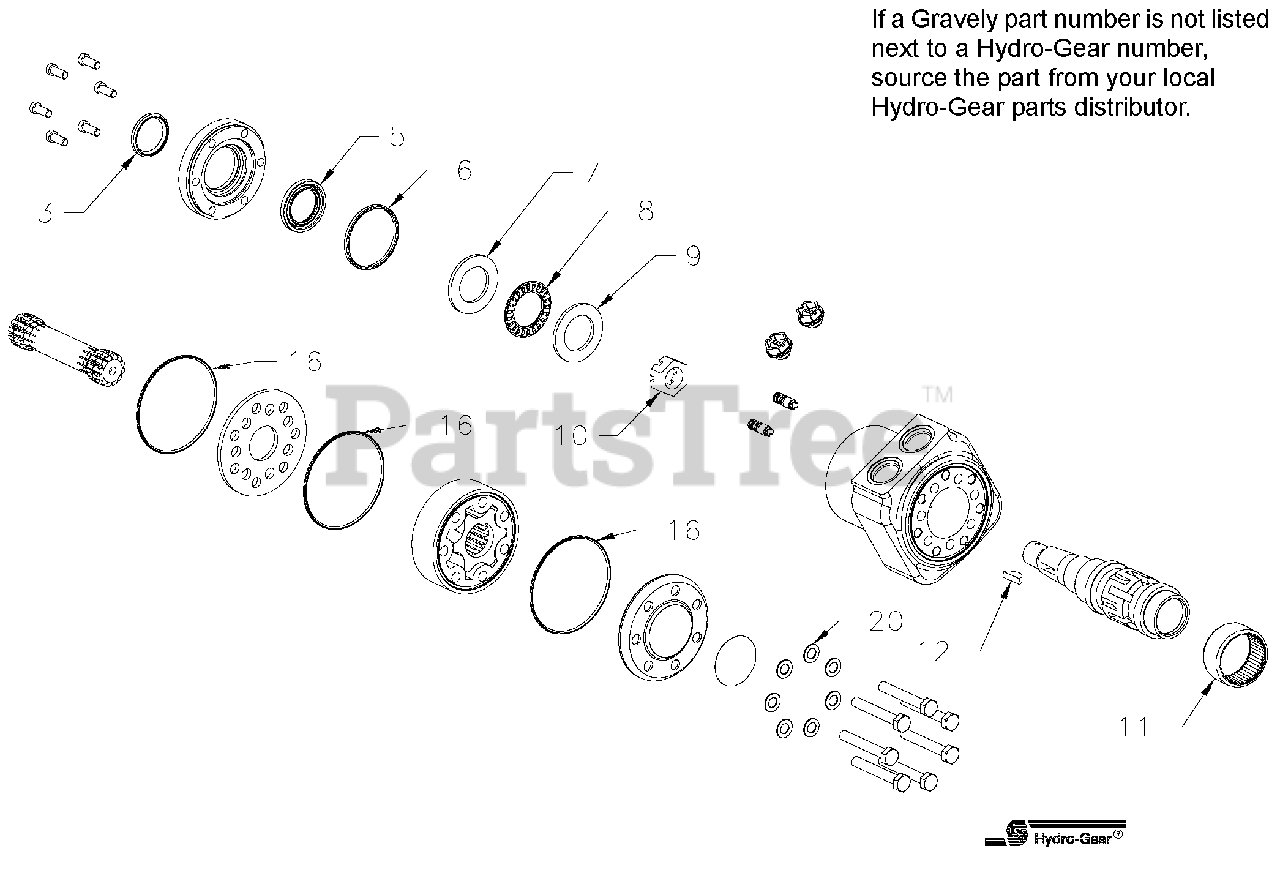

991071 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 & Above) HydroGear_Wheel Motor Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

HydroGear_Wheel Motor Parts Diagram

  • Title

10

Nut, Castle .75-20 Slotted Hex

Nut, Castle .75-20 Slotted Hex

Note: 51869

$

$

Not available

12

Key, Woodruff .1875 x .75

Key, Woodruff .1875 x .75

Note: 51871

$

$

Not available

NS

Seal Kit (Serial No. 5146M10001 and below)(includes 3, 5, 6, 16 and 20)

Seal Kit (Serial No. 5146M10001 and below)(includes 3, 5, 6, 16 and 20)

Note: 70626-1

$

$

Not available

NS

Seal Kit (Serial No. 5146M10001 and up)(includes 3, 5, 6, 16 and 20)

Seal Kit (Serial No. 5146M10001 and up)(includes 3, 5, 6, 16 and 20)

Note: 70626-2

$

$

Not available

NS

Kit, Axial Needle Bearing HGM P-Series (includes 7, 8, 9 and 11)

Kit, Axial Needle Bearing HGM P-Series (includes 7, 8, 9 and 11)

Note: 71501

$

$

Not available
