991071 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 & Above) Deck Lift Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

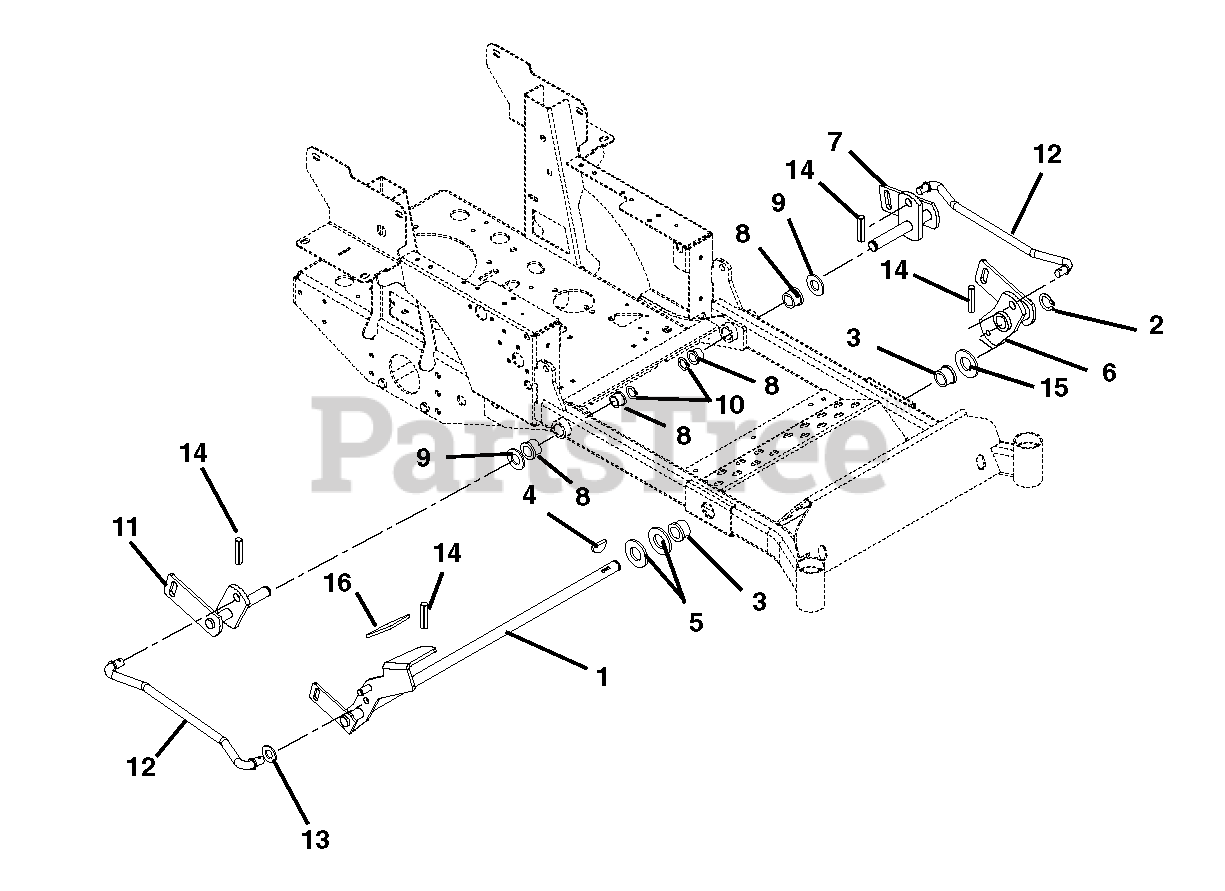

Deck Lift Parts Diagram

  • Title

1

Gravely 00668000

Weldment, Mechanical Deck Lift

$150.99

$

Usually ships in 4-12 days

0

2

Gravely 05707300

Ring, Retaining External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

3

Gravely 05520100

Bushing, Flange Nylon 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 18

0

4

Gravely 06608900

Key, Woodruff .25 x 1.00

$3.99

$

In Stock, Qty 18

0

5

Gravely 06443000

Washer, Flat Steel 1.062 x 2.0 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 00441000

Weldment, Left Hand Mower Lift Arm

$99.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

Weldment, Left Hand Rear Mower Lift Arm

$66.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

Bushing, Flange Nylon .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

Washer, Hardened Steel .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05714600

Ring, Retaining External .689 x .077

$2.49

$

In Stock, Qty 5

0

11

Gravely 00481500

Weldment, Right Hand Rear Mower Lift Arm

$83.99

$

Usually ships in 4-12 days

0

12

Gravely 00164700

Rod, Lift Assist
(Superseded to 04063000)

$

$

Not available

13

Gravely 06445100

Washer, Flat Steel .630 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0

14

Gravely 05800001

Pin, Roll .25 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 3 left!

0

16

Gravely 00270100

Grip, Pedal

$3.49

$

In Stock, Qty 5

0
