991069 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Wheels Parts Diagram

52" Zero-Turn Mower, Kawasaki

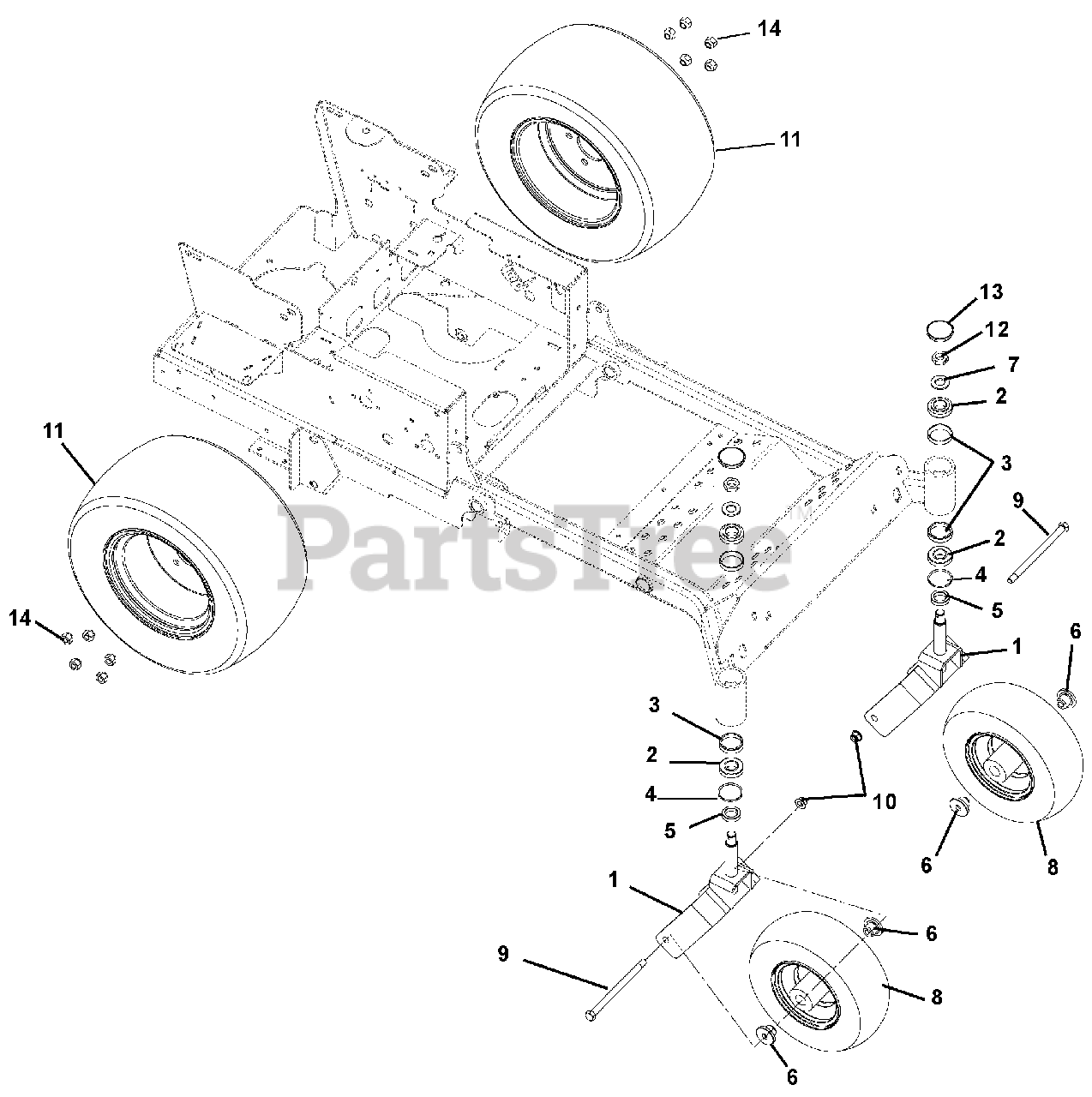

Wheels Parts Diagram

  • Title

1

Gravely 00490253

Weldment, Front Fork

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

Bearing, Cone with Grease, 1.0 x .58
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 3 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 6

0

6

Gravely 00675300

Spacer, Wheel

$7.99

$

In Stock, Qty 20+

0

7

Gravely 06439000

Washer, Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07100218

Tire/Wheel Assembly, 13 x 5.00-6
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

Gravely 07100219

Tire/Wheel Assembly 4.80-8
(Superseded to 07101609)

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 05978200

Bolt, Hex .50-13 x 7.50 Grade 5
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

10

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100837

Tire/Wheel Assembly, 20 x 10.00-10
(Superseded to 59103000)

$465.99

$

Usually ships in 4-12 days

0

Gravely 07100215

Wheel

$125.99

$

Usually ships in 4-12 days

0

12

Gravely 06536900

Nut, Center Lock Jam .75-16

$5.99

$

In Stock, only 3 left!

0

13

Gravely 00456800

Cap, Dust

$18.99

$

In Stock, Qty 6

0

14

Gravely 06517600

Wheel Nut .50-20
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05435700

Bearing, 25MM ID x 52MM OD x 15MM

$22.99

$

In Stock, Qty 15

0
