991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Steering Controls Parts Diagram

48" Zero-Turn Mower, Kawasaki

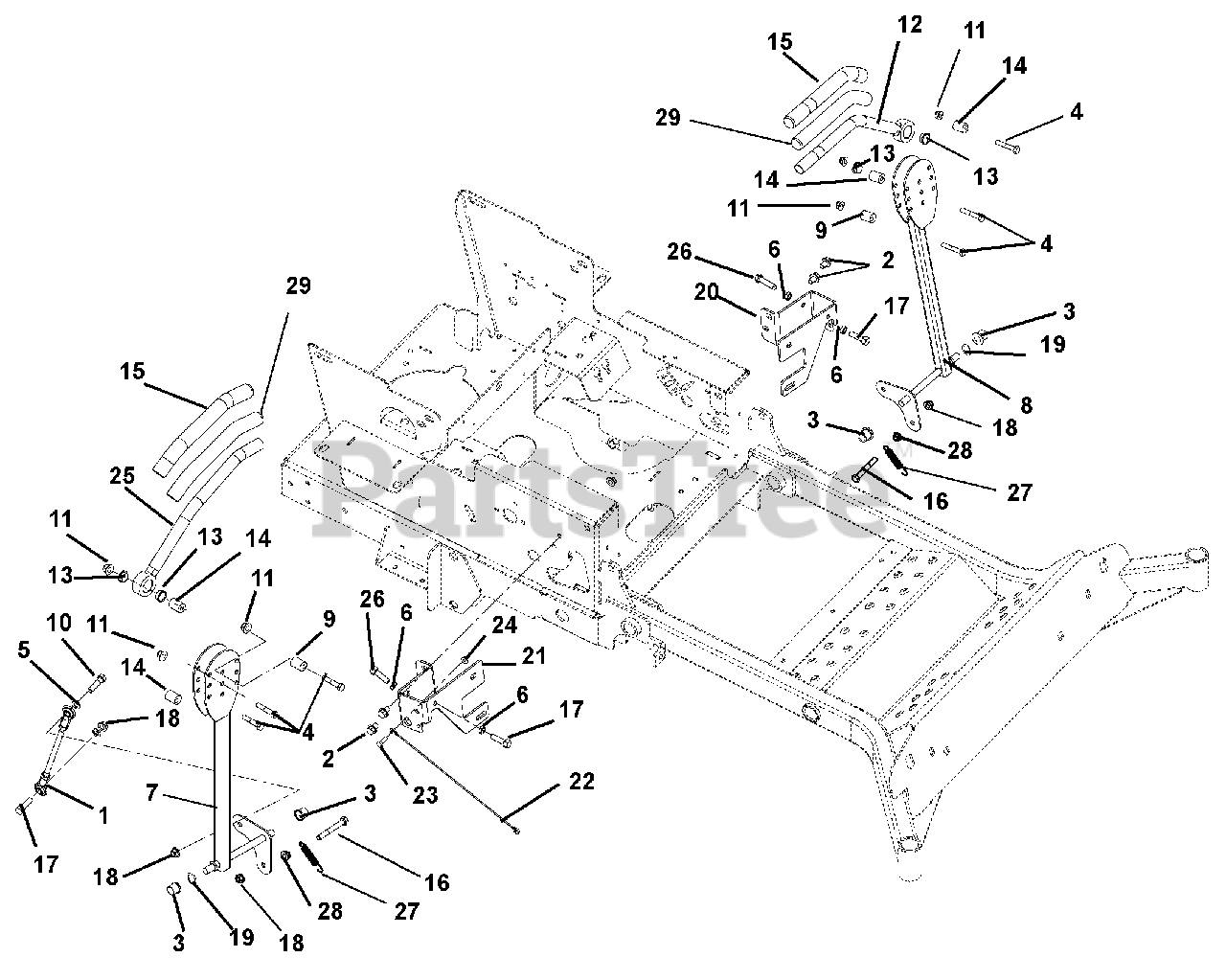

Steering Controls Parts Diagram

  • Title
1

Gravely 03251700

ASM, STEERING LINKAGE

$

$

Not available

2

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

4

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

5

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03773551

WMT, RH CONTROL

$134.99

$

Usually ships in 4-12 days

0

8

Gravely 03773651

WMT, LH CONTROL

$134.99

$

Usually ships in 4-12 days

0

9

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

11

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

HANDLE WLDMT LH

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

14

Gravely 09235400

SPACER .328 X .76 X 1.01

$

$

Not available

15

Gravely 00675200

GRIP, HANDLEBAR

$9.49

$

In Stock, only 1 left!

0

16

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

In Stock, only 4 left!

0

20

Gravely 03754753

LH STEERING STOP BRACKET - RED

$72.99

$

Usually ships in 4-12 days

0

21

Gravely 03752753

RH STEERING STOP BRACKET - RED

$77.99

$

Usually ships in 4-12 days

0

22

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

23

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

25

Gravely 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

26

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 08300516

SPRING,EXT,.061X.50X3.0

$14.99

$

In Stock, only 2 left!

0

28

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$14.99

$

In Stock, only 2 left!

0
