991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Mounting Arms Parts Diagram

48" Zero-Turn Mower, Kawasaki

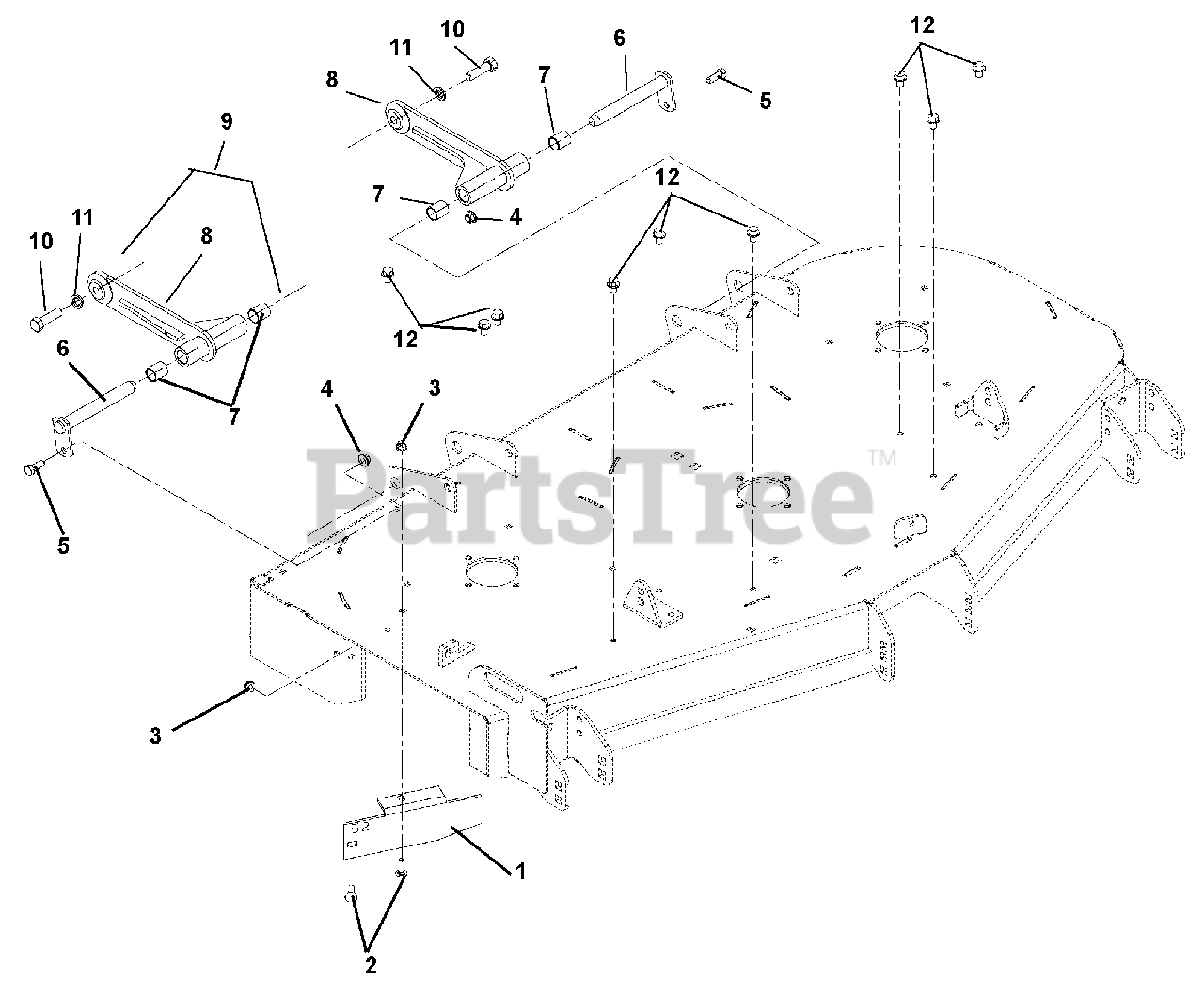

Mounting Arms Parts Diagram

  • Title

1

Gravely 00440853

52" DISCHARGE BAFFLE - RED

Note: (069)

$37.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60" DISCHARGE BAFFLE - RED

Note: (070)

$28.99

$

In Stock, only 1 left!

0

Gravely 00451653

44"-48" SIDE DISCH BAFFLE -RED

Note: (068)

$41.99

$

Usually ships in 4-12 days

0

2

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

7

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 4 left!

0

8

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 03251800

DECK PUSHER ARM ASSEMBLY

Note: (Contains items 7 and 8)

$125.99

$

In Stock, only 2 left!

0

11

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
