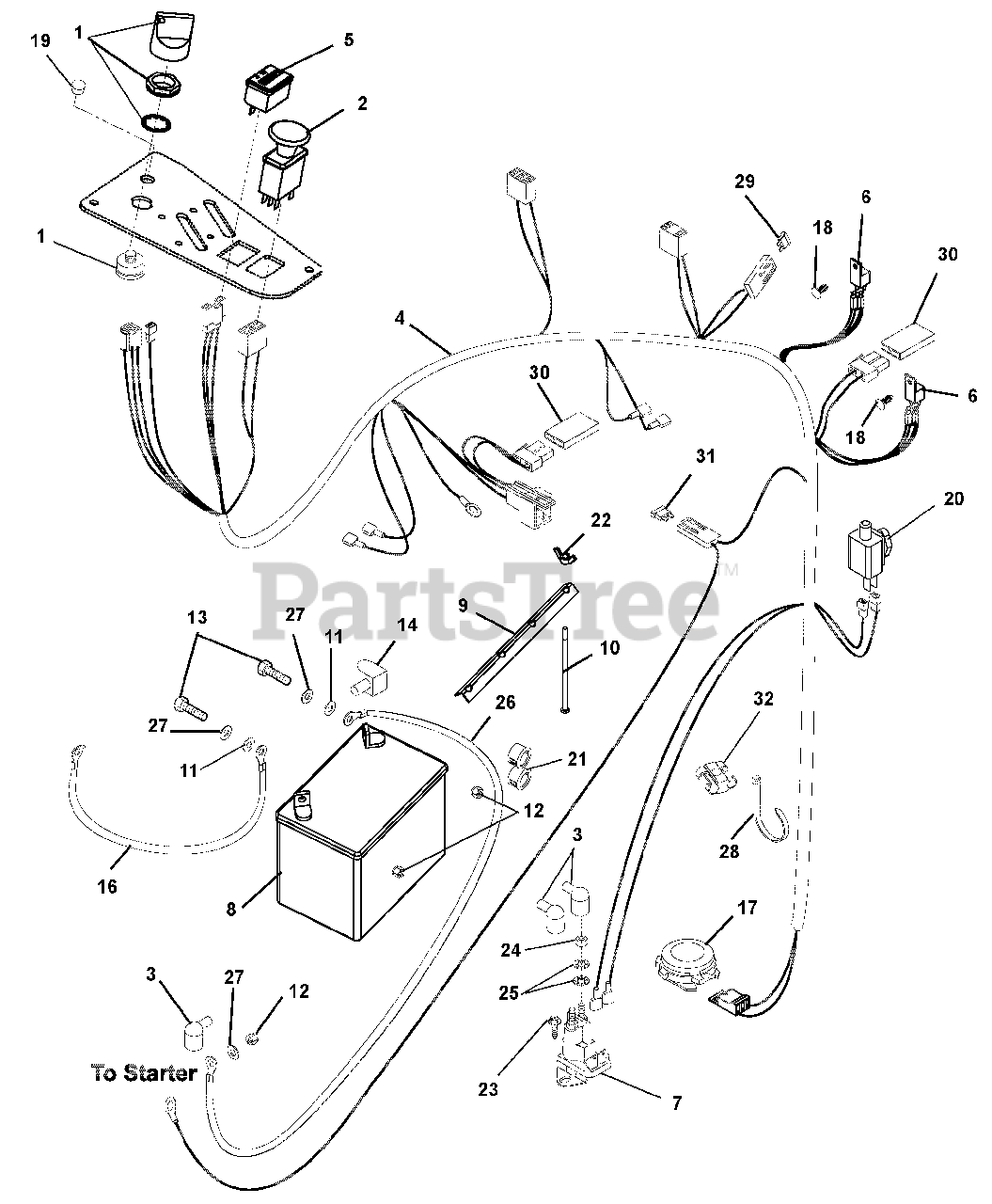

991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

48" Zero-Turn Mower, Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

2

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

3

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

4

Gravely 03288500

HARNESS - CZ REMOTE SOL.
(Superseded to 04762400)

$155.99

$

In Stock, only 1 left!

0

5

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 1 left!

0

6

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

7

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

8

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

10

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 03286000

CABLE-POSITIVE BATTERY 9.00"

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

17

Gravely 03654200

SWITCH- SEAT

$

$

Not available

18

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 18

0

19

Gravely 07527800

PLUG-HOLE .50 DIA

$

$

Not available

20

Gravely 03252300

SWITCH, SINGLE POLE N.O.

Note: (N.O.)

$13.99

$

In Stock, only 1 left!

0

21

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

25

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

26

Gravely 03492500

CABLE, STARTER .31X23.00X.31

$21.99

$

Usually ships in 4-12 days

0

27

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

29

Gravely 00580600

FUSE 20AMP

$5.99

$

In Stock, Qty 12

0

30

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, Qty 5

0

31

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

32

Gravely 07001622

CLIP,T,.31-.38,

$3.99

$

Usually ships in 4-12 days

0
