991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

48" Zero-Turn Mower, Kawasaki

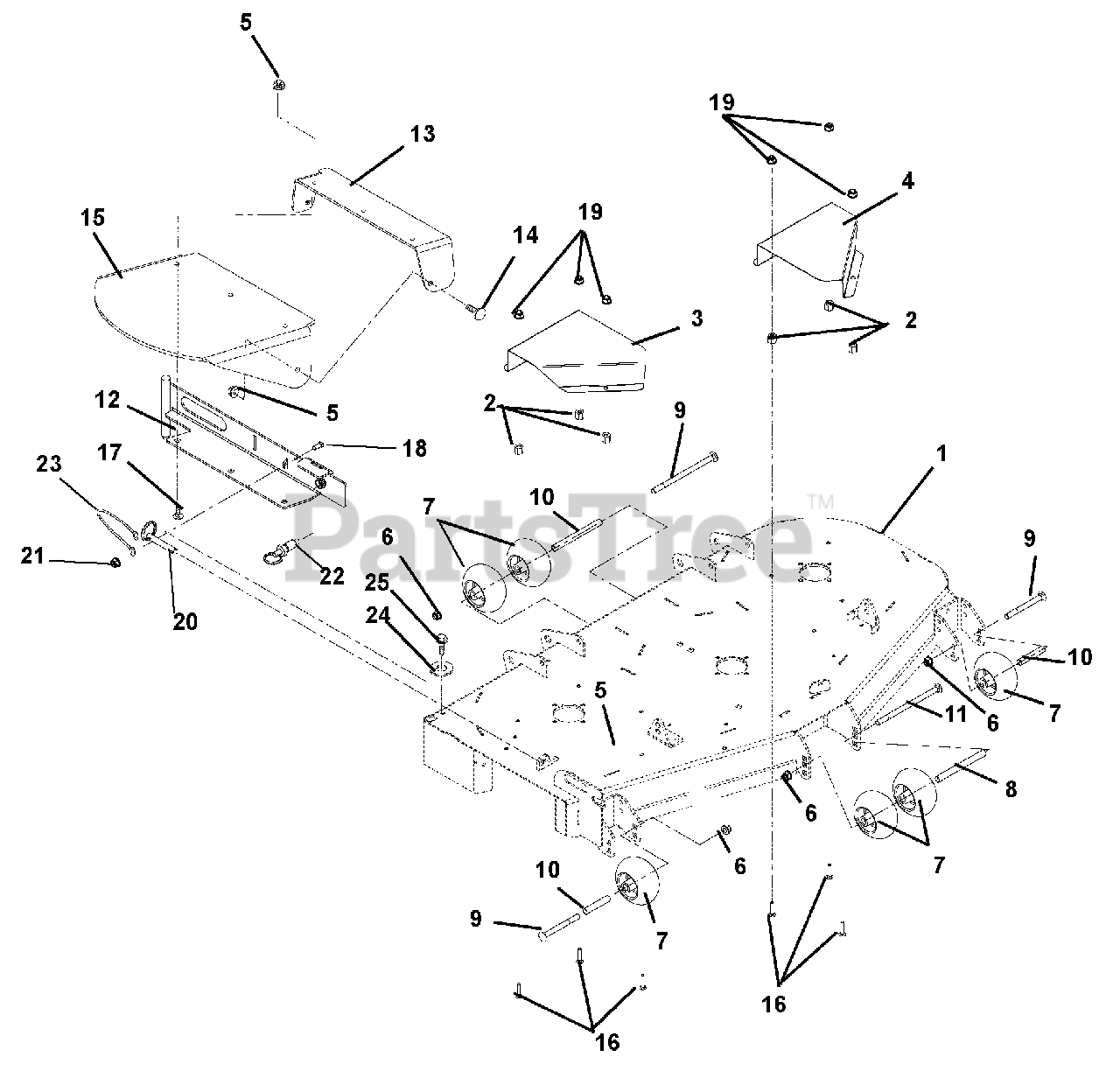

Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

  • Title

1

Gravely 04077653

WMT,60" SIDE DISCH DECK,10GA
(Superseded to 59102300)

Note: (070)

$1293.99

$

Usually ships in 4-12 days

0

1

Gravely 04077553

WMT,52" SIDE DISCH,10GA,RED
(Superseded to 59102400)

Note: (069)

$1293.99

$

Usually ships in 4-12 days

0

1

Gravely 04077453

WMT,48" SIDE DISCH,10GA,RED
(Superseded to 59102500)

Note: (068)

$1099.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03982253

60"-66" RH DECK BELT GUARD-RED

Note: (070)

$50.99

$

In Stock, only 1 left!

0

3

Gravely 04051253

GUARD-44-52 RH SPINDLE SHEAVE

Note: (068, 069)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 03977253

GUARD, 60" LH DECK BELT - RED

Note: (070)

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 03977153

44"-52"LH DECK BELT GUARD -RED

Note: (068, 069)

$91.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (068)

$11.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (069, 070)

$11.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

SPACER, .510X.625X6.50

Note: (068)

$21.99

$

In Stock, Qty 20+

0

8

Gravely 00473700

SPACER, .510X.625X3.35

Note: (069, 070)

$18.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (068)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (069, 070)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 00473700

SPACER, .510X.625X3.35

Note: (068)

$18.99

$

In Stock, Qty 20+

0

10

Gravely 00473700

SPACER, .510X.625X3.35

Note: (069, 070)

$18.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (068)

$6.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (069, 070)

$6.99

$

In Stock, Qty 20+

0

12

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (070)

$129.99

$

In Stock, only 2 left!

0

12

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

Note: (068)

$112.99

$

Usually ships in 4-12 days

0

13

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$110.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 4 left!

0

16

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 0700037

Pull Pin

$

$

Not available

23

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$5.99

$

In Stock, only 1 left!

0

24

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

In Stock, only 1 left!

0

25

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0
