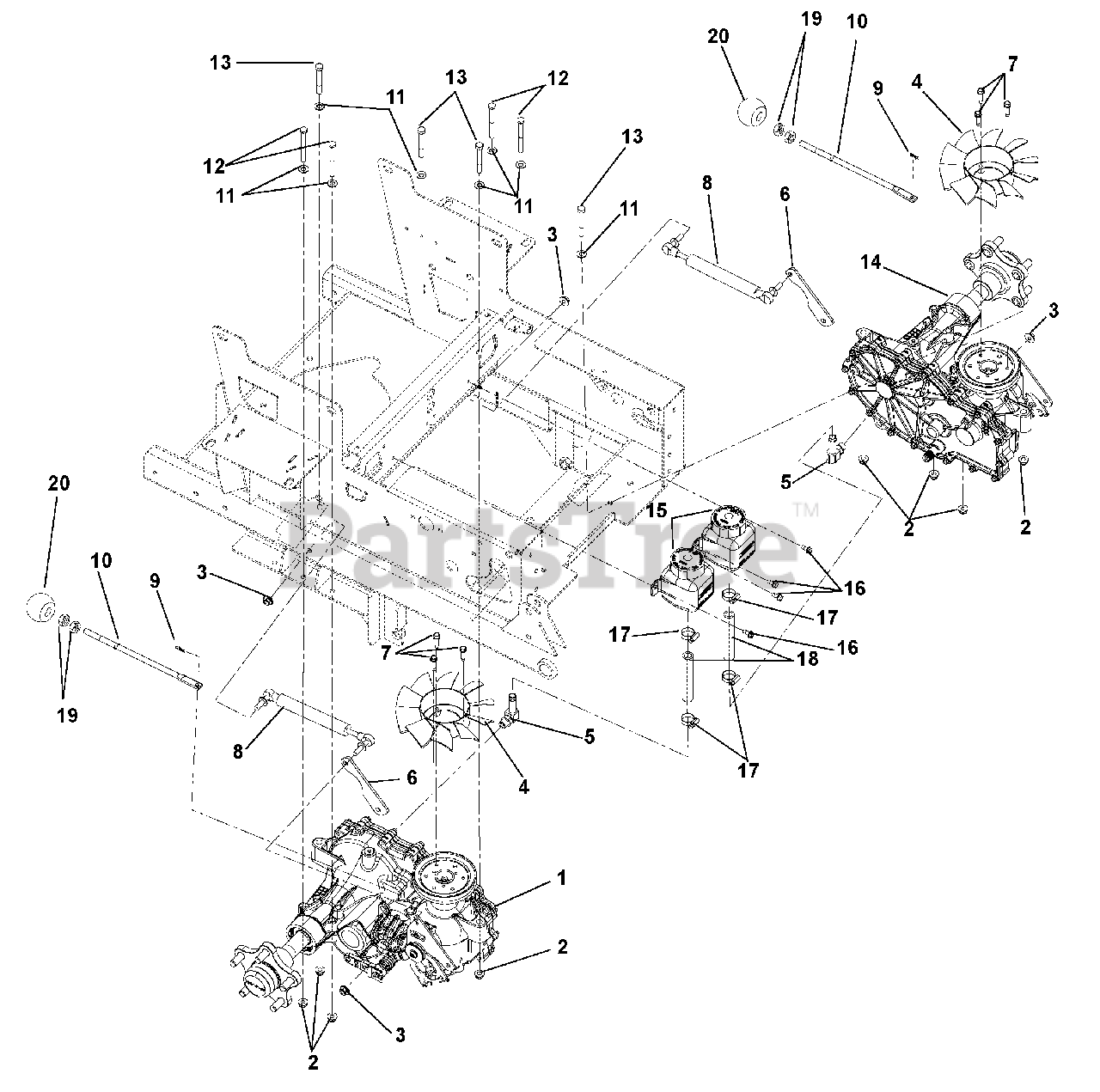

991067 (PM 160i) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Transmission (Serial 002000 - ) Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

Transmission (Serial 002000 - ) Parts Diagram

  • Title
1

Gravely 03776400

TRANSAXLE, RH 3400
(Superseded to 09184700)

Note: (Serial No. 002000 & up)

$1706.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06500623

NUT, M8-1.25 WHIZ LOCK YWZC
(Superseded to 803-220C)

$

$

Not available

4

Gravely 03283500

FAN, 2800 SERIES COOLING

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 07001528

FITTING, HYD (90 DEG)

Note: (90 DEG)

$

$

Not available

6

Gravely 03855000

PLATE, CONTROL REINFORCEMENT

$

$

Not available

7

Gravely 07412400

SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

8

$97.99

$

In Stock, only 2 left!

0

9

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

10

Gravely 03911900

LEVER, PT100 DUMP VALVE

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03776500

TRANSAXLE, LH 3400
(Superseded to 09184600)

Note: (Serial No. 002000 & up)

$1706.99

$

Usually ships in 4-12 days

0

15

Gravely 03860200

TANK, EXPANSION ZT2800
(Superseded to 02970200)

Note: (Serial No. 001000 & up)

$34.99

$

In Stock, only 2 left!

0

16

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

18

Gravely 03832300

HOSE, 100I HYDRO OVERFLOW

$5.99

$

In Stock, only 2 left!

0

19

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07539800

KNOB-BALL-BLACK .312-18 X 1.00

$5.99

$

Usually ships in 4-12 days

0

Gravely 21545100

OIL FILTER, TRANSMISSION

$

$

Not available

21

Gravely 03367200

SPCR,.406 ID X .630 OD X 7.724

Note: NOT SHOWN

$14.99

$

In Stock, only 1 left!

0

22

Gravely 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

Note: NOT SHOWN

$7.99

$

In Stock, only 1 left!

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: NOT SHOWN

$1.49

$

In Stock, Qty 20+

0
