991067 (PM 160i) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Hydraulic Drive Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

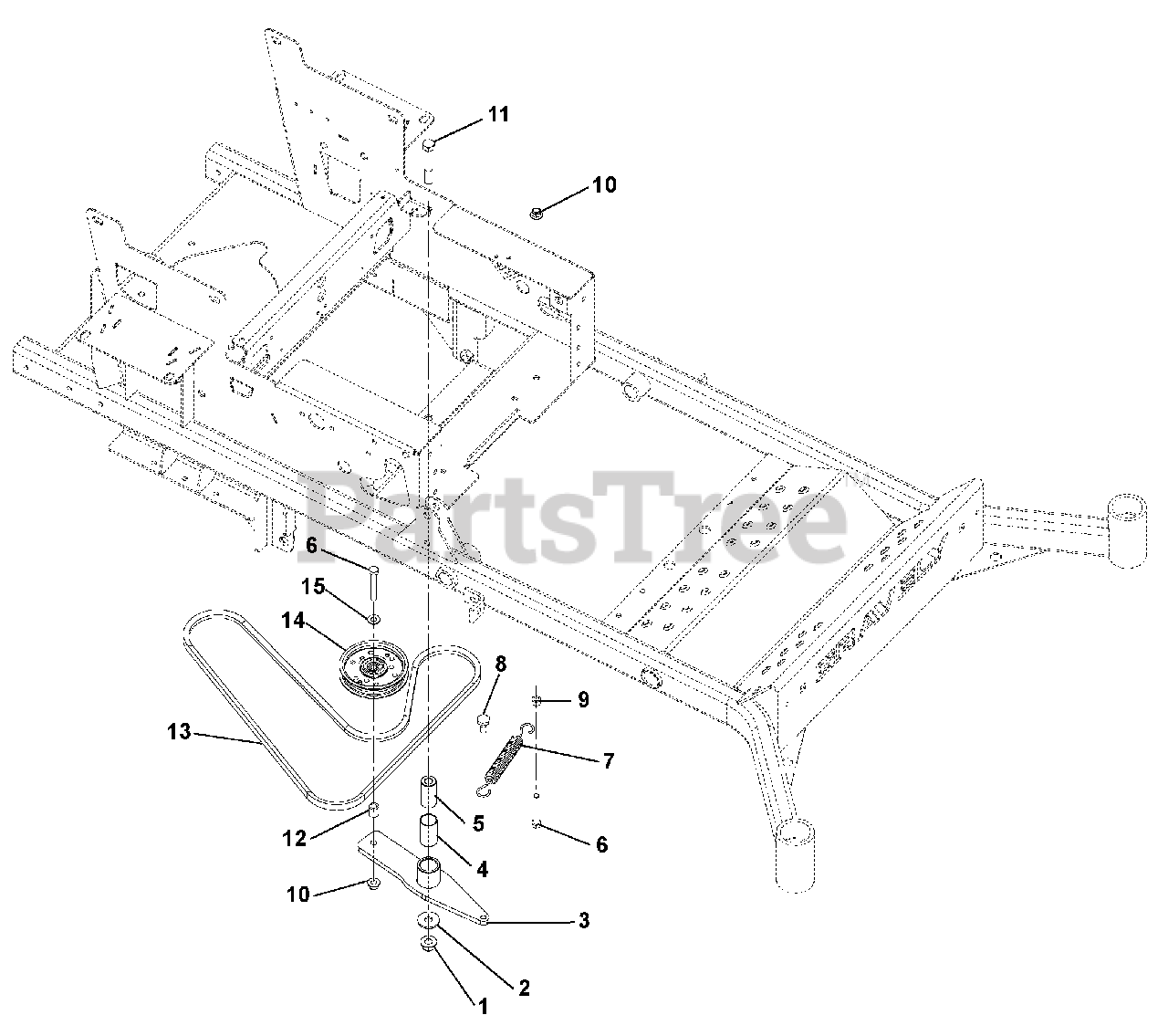

Hydraulic Drive Parts Diagram

  • Title

1

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 02988600

WMT, HYDRO DRIVE IDLER ARM
(Superseded to 02988651)

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

6

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 08300433

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

8

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

9

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05525700

BSHG-SLV .407X.625X.750 PL

$7.49

$

In Stock, only 1 left!

0

13

Gravely 07226400

V-BELT, A-COGGED

$52.99

$

In Stock, Qty 9

0

14

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
