991067 (PM 160i) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Electrical (000101 - 000999) Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

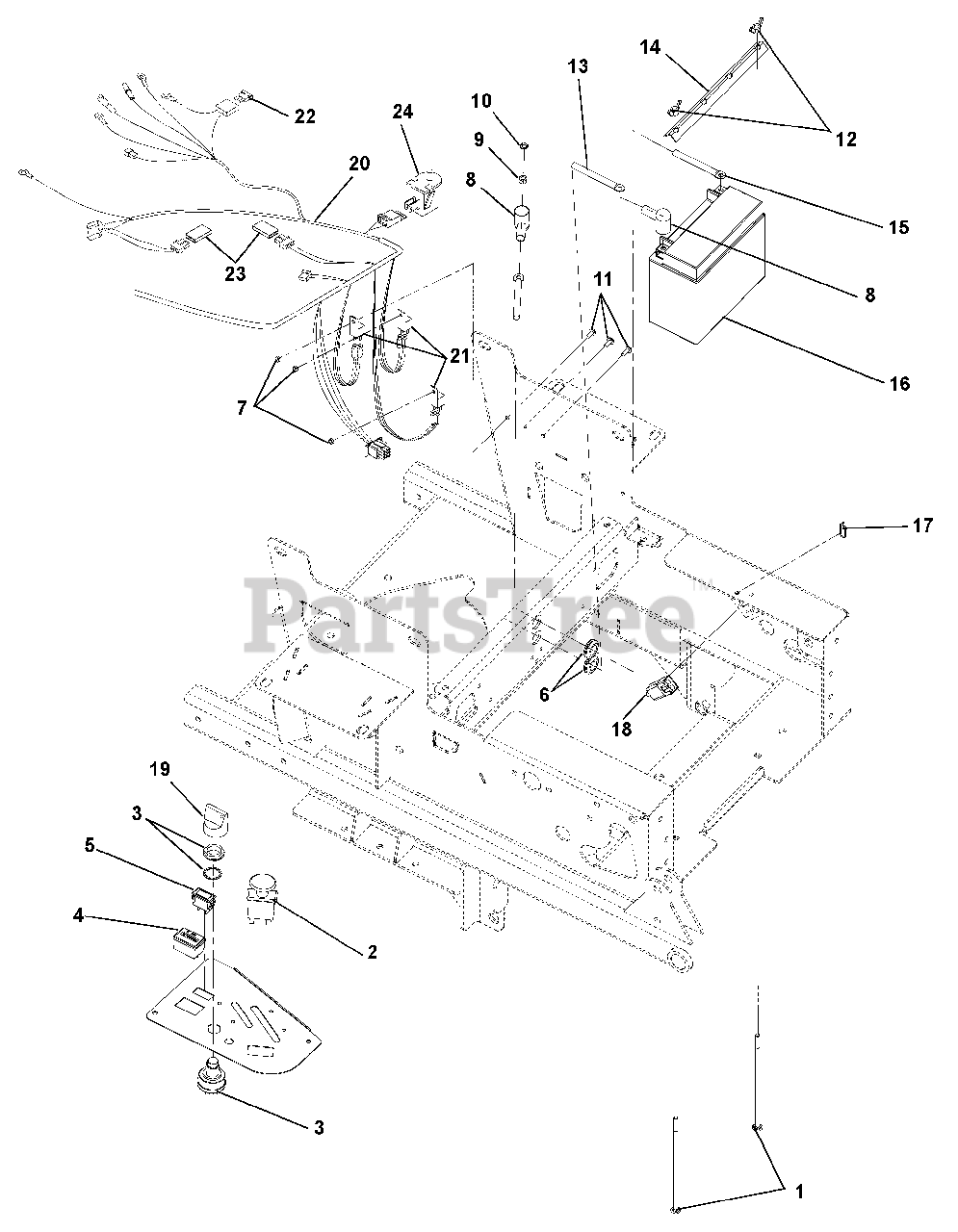

Electrical (000101 - 000999) Parts Diagram

  • Title
1

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

3

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

4

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

9

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

10

Gravely 06306800

WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

13

Gravely 03288400

CABLE-POSITIVE BATTERY 26.00"

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

15

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 02970100

BATTERY, 12 VOLT SEALED AGM

$

$

Not available

17

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

18

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

19

Gravely 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

20

Gravely 03287300

HARNESS - IZ, CZ, 100I
(Superseded to 04244800)

$305.99

$

In Stock, only 1 left!

0

21

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

22

Gravely 00524600

FUSE, 30 AMP.

$

$

Not available

23

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

24

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0
