991067 (PM 160i) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Deck and Mounting Arms Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

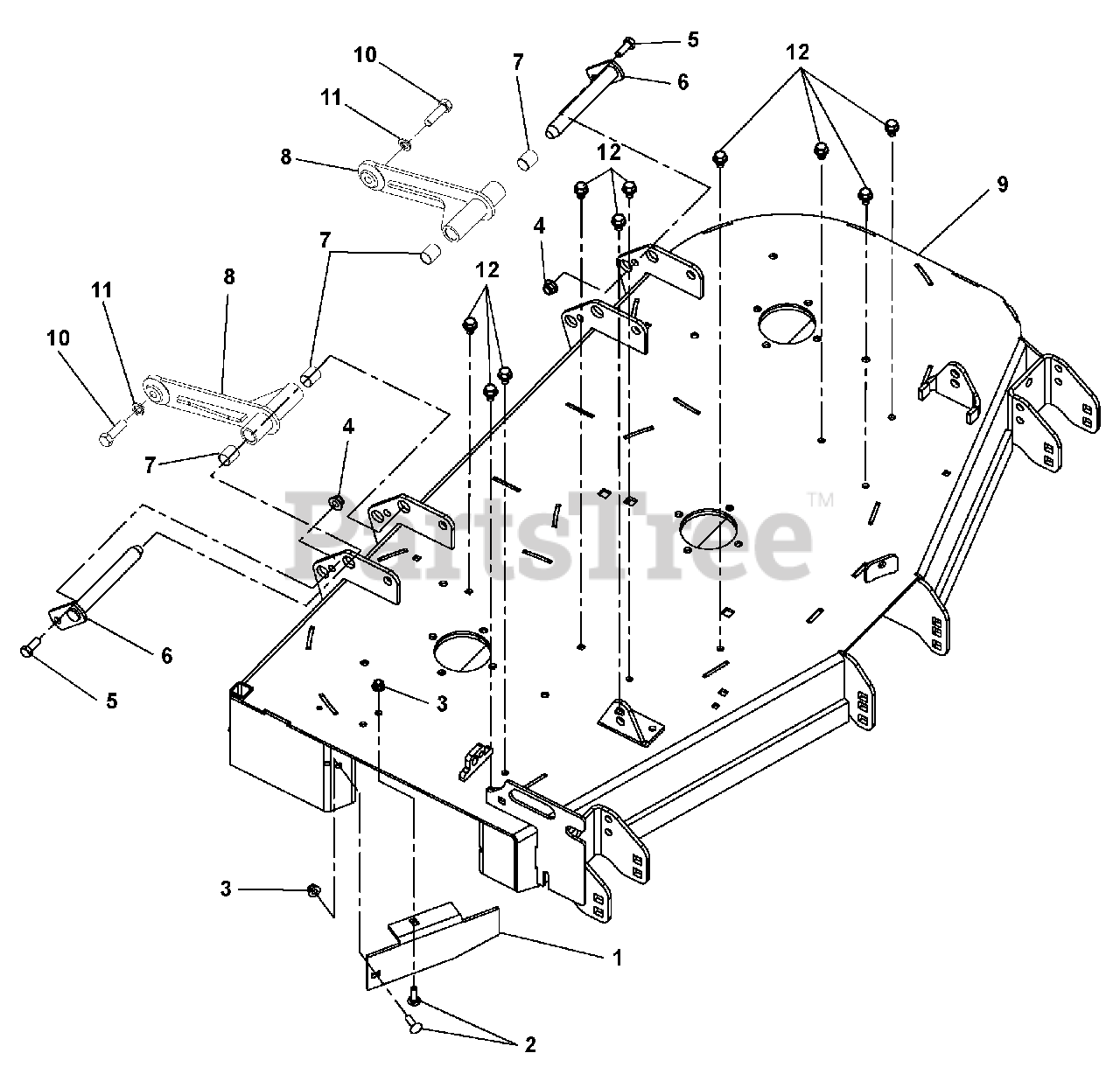

Deck and Mounting Arms Parts Diagram

  • Title

1

Gravely 00451653

44"-48" REAR DISCH BAFFLE -RED

Note: (060)

$41.99

$

Usually ships in 4-12 days

0

Gravely 00440853

52" DISCHARGE BAFFLE - RED

Note: (061)

$37.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60" DISCHARGE BAFFLE - RED

Note: (067)

$28.99

$

In Stock, only 1 left!

0

2

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

7

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

8

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 03841153

48" 100I SIDE DISCH DECK - RED

Note: (060)

$

$

Not available

Gravely 03841253

52" 100I SIDE DISCH DECK - RED

Note: (061)

$

$

Not available

Gravely 03841353

60" 100I SIDE DISCH DECK - RED
(Superseded to 03980553)

Note: (067)

$

$

Not available

10

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
