991064 (PM 160i) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Tire Assembly Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

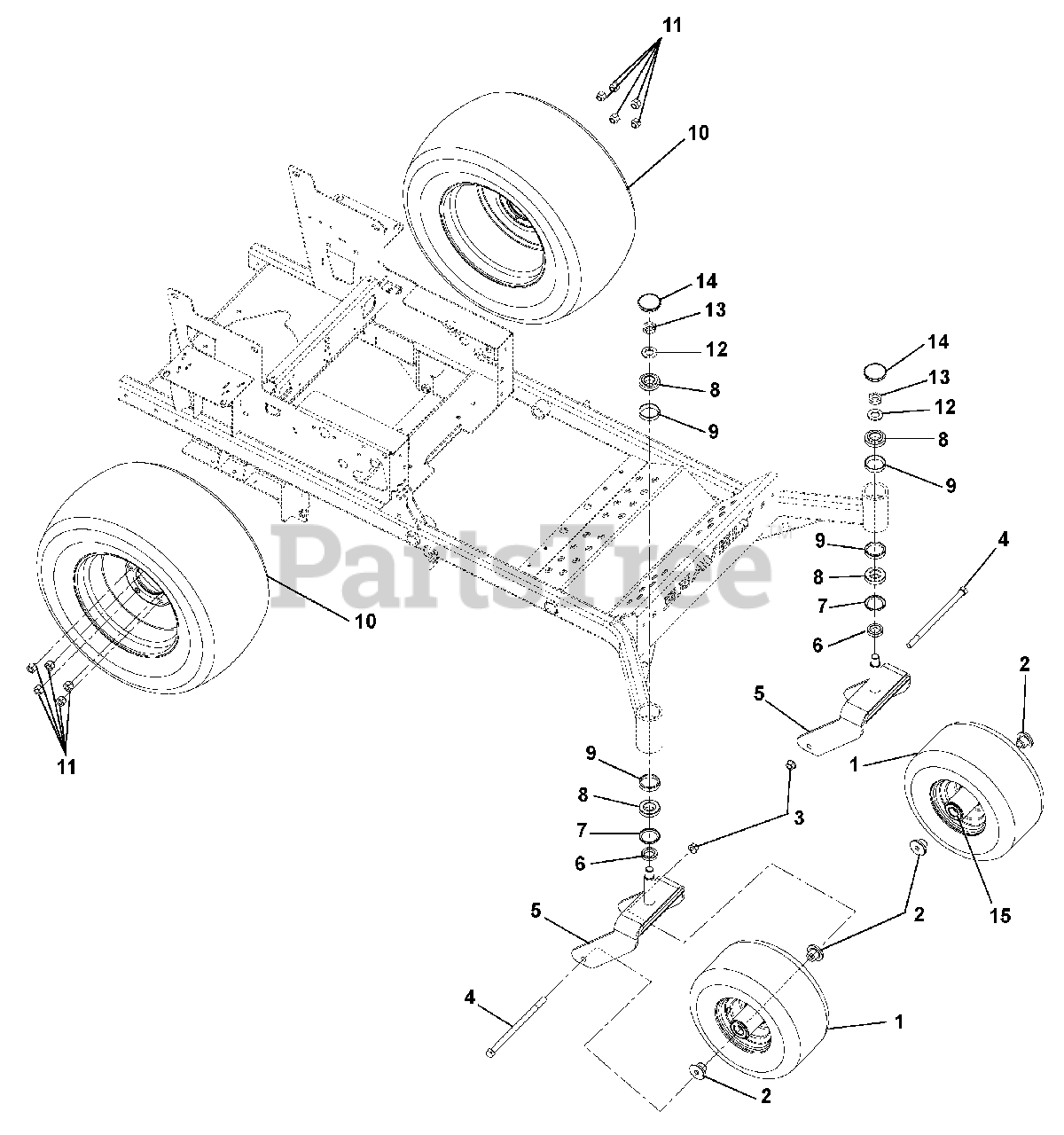

Tire Assembly Parts Diagram

  • Title

1

Gravely 07100235

Tire/Wheel Assembly, 13 x 6.50-6
(Superseded to 59103400)

$193.99

$

Usually ships in 4-12 days

0

Gravely 07100236

Tire, 13 x 6.50-6
(Superseded to 59103400)

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 00675300

Spacer, Front Wheel

$7.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05961200

Bolt, Hex .50-13 X 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 09282451

Fork
(Superseded to 59208600)

$

$

Not available

6

Gravely 00531500

Spacer 1.005 x 1.5075 x .375

$7.99

$

In Stock, Qty 7

0

7

Gravely 00531400

Bearing Seal 1.5 x 2 x .18 Transcom

$10.99

$

In Stock, only 4 left!

0

8

Gravely 05406900

Bearing, Cone 1.0 x .58 Pre-Greased

$18.99

$

In Stock, Qty 20+

0

9

Gravely 05407000

Bearing, Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

10

Gravely 07100209

Tire/Wheel Assembly, 23 x 10.00-12
(Superseded to 07101116)

$290.99

$

In Stock, only 2 left!

0

Gravely 07100210

Tire, 23 x 10.00-12
(Superseded to 07101043)

$

$

Not available

11

Gravely 06517600

Nut, Wheel .50-20 13/16 Across Flats Automotive Type
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06536900

Nut, Jam Center-Lock .75-16

$5.99

$

In Stock, only 3 left!

0

14

Gravely 00456800

Cap, Dust

$18.99

$

In Stock, Qty 9

0

15

Gravely 05435700

Bearing, 25MM ID x 52MM OD x 15MM

$22.99

$

In Stock, Qty 19

0
