991062 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Belts, Spindles, Idlers, Blades Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

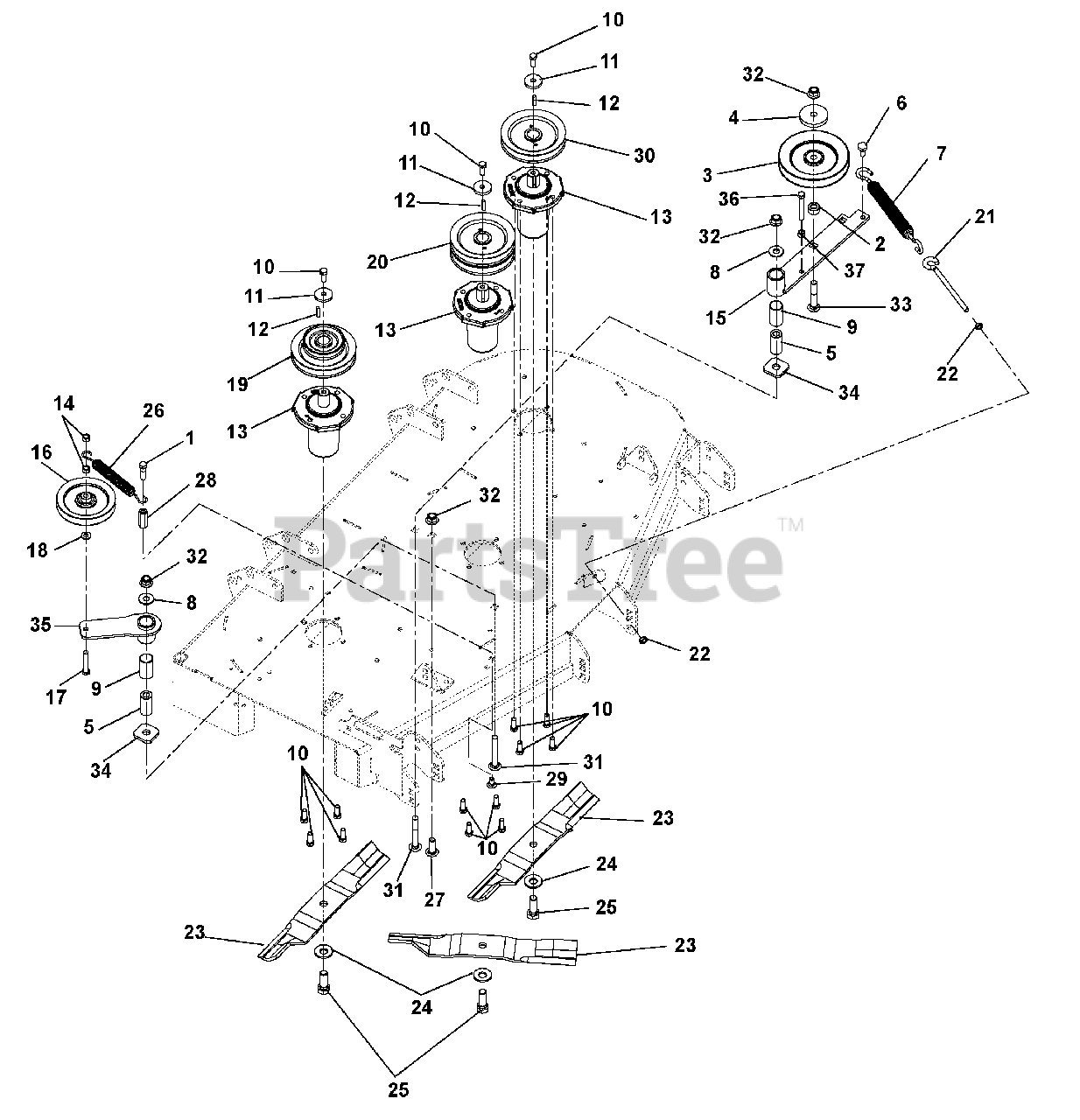

Belts, Spindles, Idlers, Blades Parts Diagram

  • Title

1

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

2

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

0

3

Gravely 07300429

Pulley, V 6.0 x .500 ID Single Bearing
(Superseded to 07300527)

$53.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

5

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

6

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

7

Gravely 08300030

Spring, Extension (Deck Idler)
(Superseded to 08300505)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

8

Gravely 06430200

Washer, Flat Steel .531x 1.250 x.100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06611200

Key, Square .25 x .25 x 1 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Gravely 69219700

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

14

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03774200

Weldment, Idler Arm
(Superseded to 03774251)

$68.99

$

In Stock, only 1 left!

0

16

Gravely 07300015

Sheave, .38" ID x 5" OD
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

17

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07300029

Sheave, 44-48 Bagger Drive (062)
(Superseded to 07329467)

Note: (062)

$100.99

$

In Stock, only 1 left!

0

Gravely 07300025

Sheave, 1" ID x 6.00" OD and 3.50" OD (063)
(Superseded to 07332267)

Note: (063)

$79.99

$

In Stock, only 1 left!

0

Gravely 07300026

Sheave, Double 1.0' ID x 6.75" x 4.35" OD (064)
(Superseded to 07329167)

Note: (064)

$84.99

$

In Stock, Qty 7

0

20

Gravely 07300031

Sheave, Double 1.0" ID x 5.50" OD (062)
(Superseded to 07329267)

Note: (062)

$80.99

$

In Stock, only 1 left!

0

Gravely 07300020

Sheave, Double 1"ID x 6.00" OD (063)
(Superseded to 07332367)

Note: (063)

$77.99

$

In Stock, Qty 16

0

Gravely 07300021

Sheave, Double 1"ID x 6.75"OD (064)
(Superseded to 59211500)

Note: (064)

$91.99

$

In Stock, Qty 20+

0

21

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 00450200

Blade, 16.19" Mower (062)

Note: (062)

$29.99

$

In Stock, Qty 20+

0

Gravely 00273000

Blade, Mulch 16.25" Mower (062)
(Superseded to 05244100)

Note: (062)

$27.99

$

In Stock, Qty 20+

0

Gravely 00450300

Blade, 18.00" Mower (Hi-Lift) (063)

Note: (Hi-Lift) (063)

$29.99

$

In Stock, Qty 20+

0

Gravely 09081200

Blade, 20.50" Mower (064)

Note: (064)

$29.99

$

In Stock, Qty 20+

0

24

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, only 3 left!

0

25

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 08300433

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

27

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

28

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

29

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 07300030

Sheave, Single 1.0" ID x 5.50" OD (062)
(Superseded to 07329367)

Note: (062)

$68.99

$

In Stock, Qty 16

0

Gravely 07300019

Sheave, Single 1"ID x 6.00" OD (063)
(Superseded to 59211700)

Note: (063)

$82.99

$

In Stock, only 1 left!

0

Gravely 07300022

Sheave, Single 1"ID x 6.75"OD (064)
(Superseded to 59211600)

Note: (064)

$82.99

$

In Stock, Qty 8

0

31

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

32

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 16

0

34

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

35

Gravely 03774100

Weldment, Idler Arm
(Superseded to 03774151)

$51.99

$

In Stock, only 1 left!

0

36

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

37

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

PTO Belt

Gravely 07200024

Belt, BB 118.00 Wrapped Hex (062)

Note: (062)

$136.99

$

In Stock, only 2 left!

0

PTO Belt

Gravely 07200509

Belt, BB 123.50 Wrapped Hex (063)

Note: (063)

$133.99

$

Usually ships in 4-12 days

0

PTO Belt

Gravely 07200510

Belt, 133.00 Wrapped Hex (064)

Note: (064)

$150.99

$

In Stock, only 2 left!

0

RH Deck Belt

Gravely 07200035

Belt, B 51.18 Raw Cogged (062)

Note: (062)

$54.99

$

In Stock, only 4 left!

0

RH Deck Belt

Gravely 07200036

Belt, B 56.00 Raw Cogged (063)

Note: (063)

$62.99

$

In Stock, Qty 14

0

RH Deck Belt

Gravely 07200038

Belt, B 63.00 Raw Cogged (064)

Note: (064)

$67.99

$

In Stock, Qty 20+

0
