991061 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Transmission LH - 03776500 Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

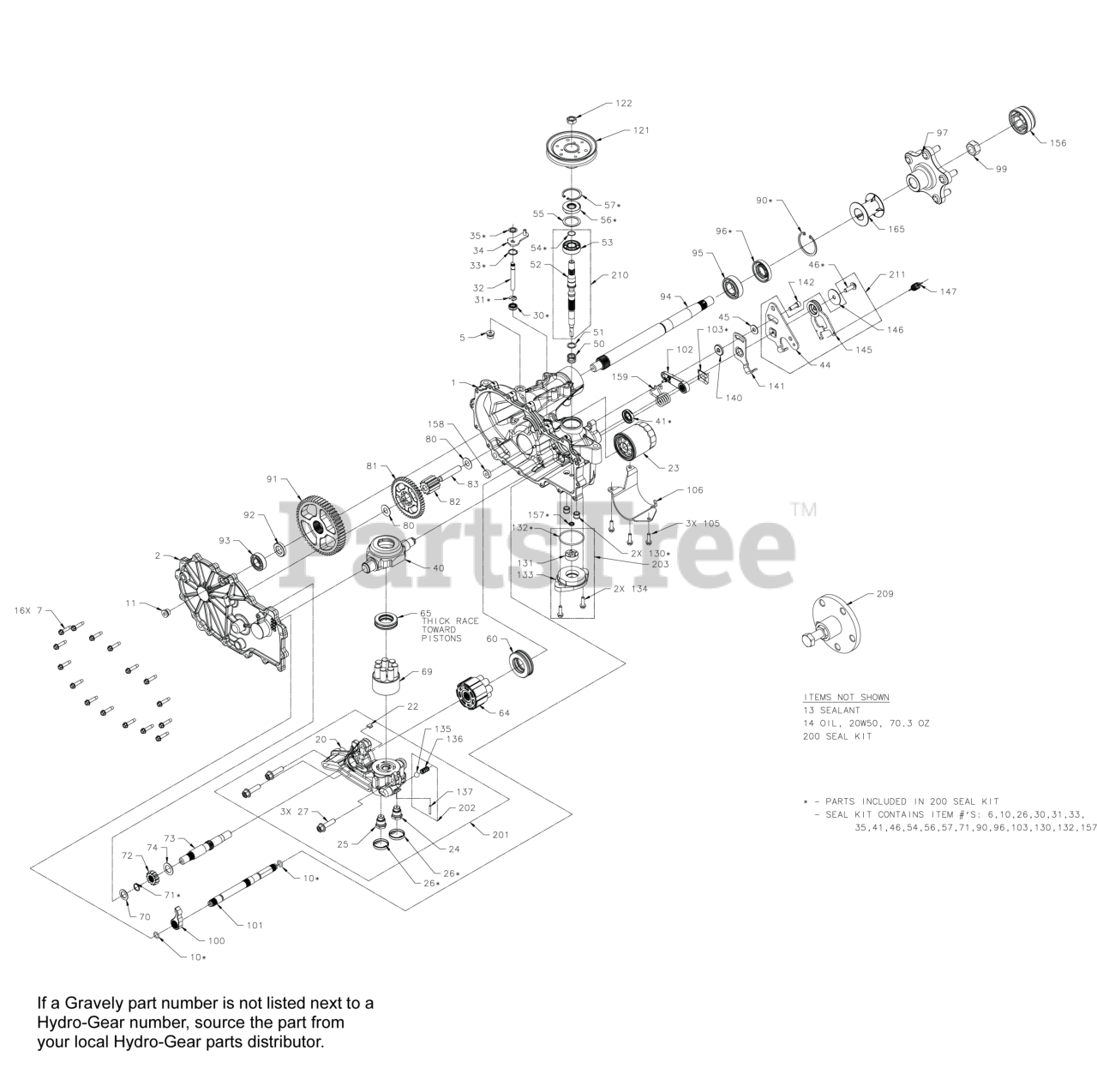

Transmission LH - 03776500 Parts Diagram

  • Title

1

KIT, HOUSING,MAIN,LH,CHRG,CNTL

Note: Hydro-Gear Part 71986

$

$

Not available

2

KIT, COVER, SIDE, LH

Note: Hydro-Gear Part 71992

$

$

Not available

5

Gravely 21500029

PLUG, 9/16 18 METAL
(Superseded to 08613700)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.49

$

In Stock, only 3 left!

0

10

O-RING - 111 .103 X 424

Note: Hydro-Gear Part 51804

$

$

Not available

11

Gravely 21500029

PLUG, 9/16 18 METAL
(Superseded to 08613700)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Recommended Approximately 72 oz

$14.99

$

In Stock, Qty 20+

0

14

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Optional Approximately 72 oz

$

$

Not available

20

Note: Not Available Separate Order Item 201

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

$

$

Not available

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$

$

Not available

24

Note: Not Available Separate Order Item 201

$

$

Not available

25

Note: Not Available Separate Order Item 201

$

$

Not available

26

Gravely 21544047

SEAL, PLUG 1.375 X .250

$7.49

$

Usually ships in 4-12 days

0

27

HFHCS 3/8-16X1.5 (PATCH)

Note: Hydro-Gear Part 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 14

0

32

ROD, BYPASS

Note: Hydro-Gear Part 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21548901

HG BYPASS ARM (52370)

$

$

Not available

35

Gravely 21543848

RING, RTNG .

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$9.49

$

Usually ships in 4-12 days

0

44

Note: NOT Available Separate Order Item Number 211

$

$

Not available

45

Gravely 08611200

WASHER

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

$2.99

$

Usually ships in 4-12 days

0

50

Gravely 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

51

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

52

Note: Not Available Separate Order Item Number 210

$

$

Not available

53

Note: Not Available Separate Order Item Number 210

$

$

Not available

54

Note: Not Available Separate Order Item Number 210

$

$

Not available

55

Gravely 21543773

WASHER 1.23X1.56X.04

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

Note: Hydro-Gear Part 71579

$77.99

$

Usually ships in 4-12 days

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

$86.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

$

$

Not available

71

Gravely 21543704

RING, RET 62 EXT

$

$

Not available

72

GEAR, 13T, STEEL

Note: Hydro-Gear Part 52342

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear Part 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR, 46T

Note: Hydro-Gear Part 52343

$

$

Not available

82

GEAR 11 TOOTH STEEL

Note: Hydro-Gear Part 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$9.49

$

Usually ships in 4-12 days

0

91

Gravely 21500035

GEAR, 54T

$68.99

$

Usually ships in 4-12 days

0

92

SPACER

Note: Hydro-Gear Part 53336

$

$

Not available

93

BEARING, BALL, .75 X 40 X 12

Note: Hydro-Gear Part 44121

$

$

Not available

94

Gravely 21500039

SHAFT, AXLE

$146.99

$

Usually ships in 4-12 days

0

95

BRG, BALL 25.4 X 52 X 15

Note: Hydro-Gear Part 50771

$

$

Not available

96

SEAL, LIP 1.000 X 2.049 X .375

Note: Hydro-Gear Part 50772

$

$

Not available

97

Gravely 21544023

HUB, HYDROGEAR P/N 71691

$90.99

$

In Stock, only 2 left!

0

99

NUT, HEX LOCK 3/4-16

Note: Hydro-Gear Part 50863

$

$

Not available

100

PAWL, BRAKE

Note: Hydro-Gear Part 52776

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear Part 52640

$

$

Not available

102

Gravely HG 51979

KIT HANDLE, ACTUATING

Note: Hydro-Gear Part 51979

$

$

Currently unavailable

103

CLIP, RETAINING

Note: Hydro-Gear Part 52027

$

$

Not available

105

SCREW, HEX FLANGE 1/4-20X.625

Note: Hydro-Gear Part 53464

$

$

Not available

106

Gravely HG52247

GUARD, FILTER, LH

Note: Hydro-Gear Part 52247

$

$

Currently unavailable

121

Gravely 21544051

PULLEY, 4.5 INCH
(Superseded to 21544079)

$64.99

$

In Stock, only 2 left!

0

122

Gravely 21543703

NUT, HEX 1/2-20 PATCH

$4.99

$

In Stock, only 4 left!

0

130

TUBE, CONNECTING

Note: Hydro-Gear Part 52157

$

$

Not available

131

Gravely 08611500

GEROTOR

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING HYDROGEAR 52250

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

Note: Hydro-Gear Part 53468

$

$

Not available

134

SCREW, HEX FLANGE 1/4-20X.625

Note: Hydro-Gear Part 53464

$

$

Not available

135

Note: Not Available Separate Order Item 201

$

$

Not available

136

Note: Not Available Separate Order Item 201

$

$

Not available

137

Note: Not Available Separate Order Item 201

$

$

Not available

140

SPACER .320 X 1.005 X .179

Note: Hydro-Gear Part 52527

$

$

Not available

141

Gravely 21543867

ARM, NEUTRAL LEFT

$12.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

145

Note: Not Available Separate Order Item Number 211

$

$

Not available

146

Gravely 21543871

WASHER

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

$

$

Not available

156

Note: Not Used On This Model

$

$

Not available

157

SEAL, LIP 8 X 12 X 3 VC

Note: Hydro-Gear Part 53456

$

$

Not available

158

Gravely 21543799

MAGNET, RING

$2.49

$

Usually ships in 4-12 days

0

159

Gravely 21500036

SPRING, TORSION, CW

$10.99

$

Usually ships in 4-12 days

0

165

Gravely 21500037

TUBE, AXLE 2.03

$

$

Not available

200

KIT, SEAL

Note: Hydro-Gear Part 71976

$

$

Not available

201

Gravely 21548909

HG CENTER SECTION KIT (71973)

$

$

Not available

202

KIT CHARGE RELIEF

Note: Hydro-Gear Part 71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

$109.99

$

Usually ships in 4-12 days

0

207

Note: Not Available As Kit Order Item Number 121 and 122

$

$

Not available

209

Gravely 21544008

HUB PULLER 5 BLT

Note: Optional Service Tool

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544039

INPUT SHAFT HG 71978

$

$

Not available

211

Gravely 21544003

TRN KIT HRDROGEAR P/N 71599

$35.99

$

Usually ships in 4-12 days

0
