991061 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Tire Assembly Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

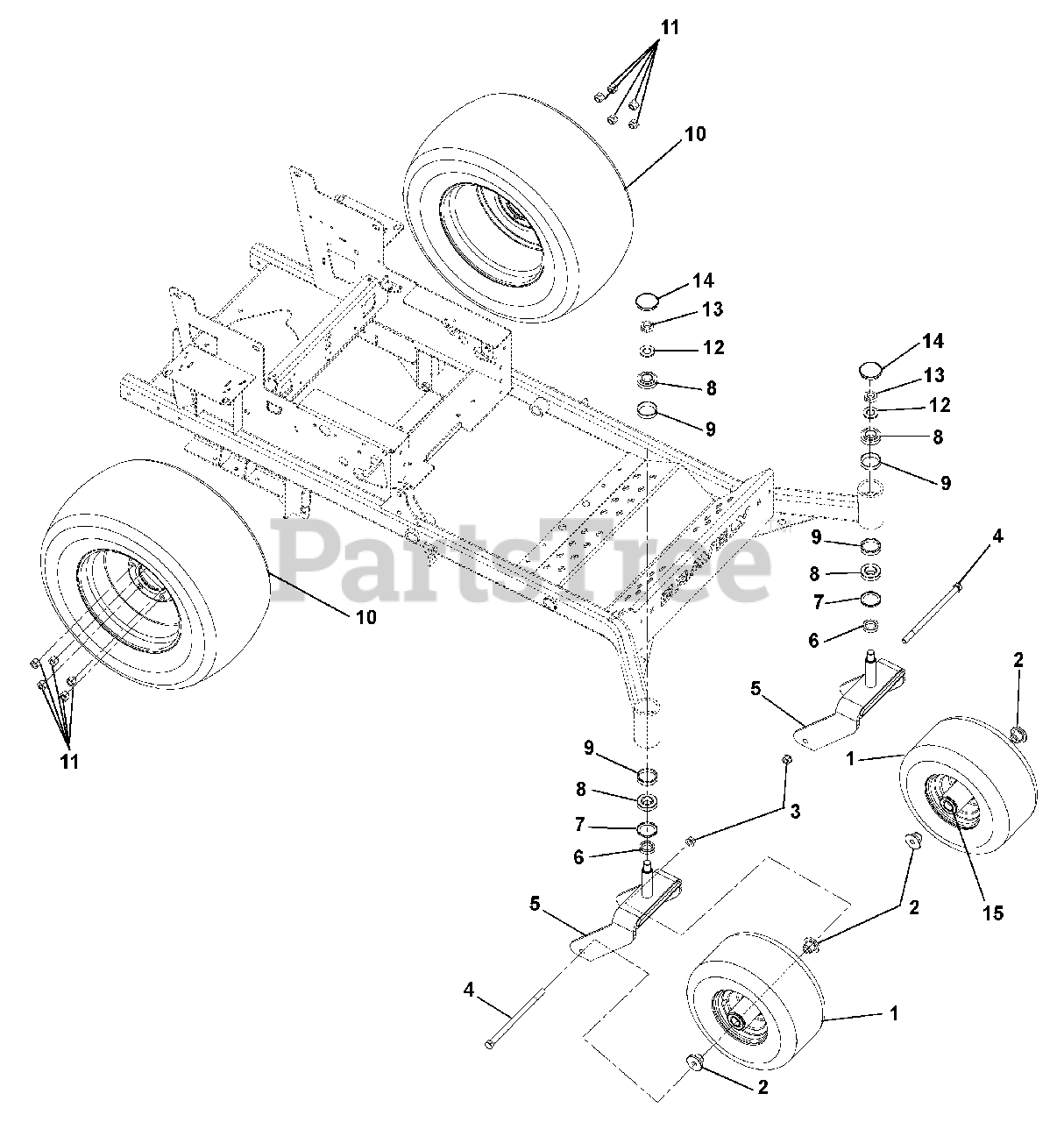

Tire Assembly Parts Diagram

  • Title

1

Gravely 07100235

TIRE/WHEEL ASM, 13X6.50-6
(Superseded to 59103400)

$193.99

$

Usually ships in 4-12 days

0

Gravely 07100236

TIRE, 13X6.50-6
(Superseded to 59103400)

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 09282451

FORK - BLACK
(Superseded to 59208600)

$

$

Not available

6

Gravely 00531500

SPACER 1.005X1.5075X.375

$7.99

$

In Stock, Qty 7

0

7

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 6

0

8

Gravely 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

9

Gravely 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

10

Gravely 07100209

TIRE/WHEEL ASSY, 23X10.00-12
(Superseded to 07101116)

$290.99

$

In Stock, only 2 left!

0

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

$

$

Not available

11

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

14

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 9

0

15

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 19

0
