991061 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Discharge Chute & Belt Covers Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

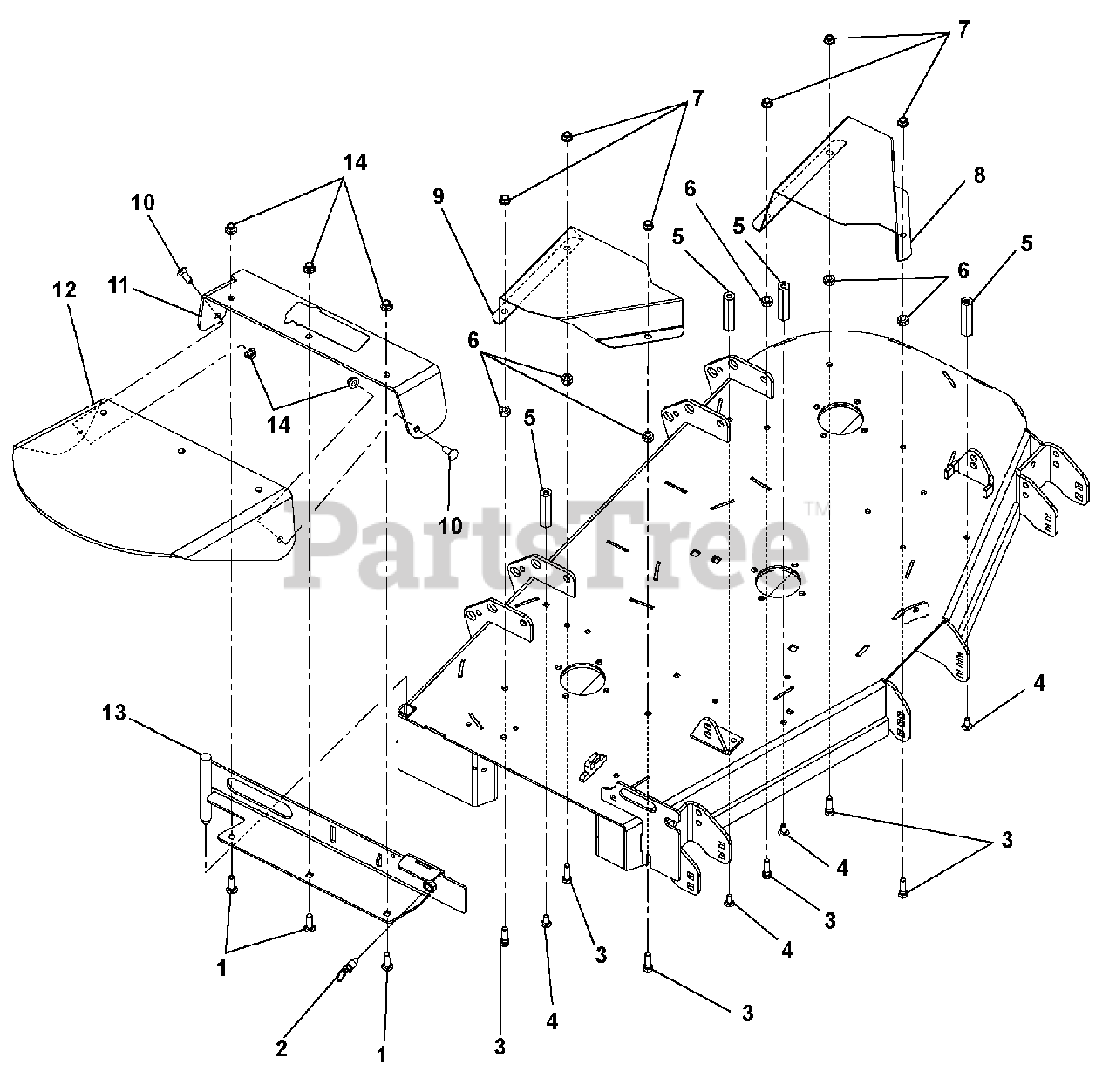

Discharge Chute & Belt Covers Parts Diagram

  • Title
1

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0

3

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

6

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03781153

GUARD, 44-52 LH SPINDLE SHEAVE

Note: (060, 061)

$70.99

$

Usually ships in 4-12 days

0

Gravely 03777853

GUARD, 60 LH SPINDLE SHEAVE

Note: (067)

$81.99

$

Usually ships in 4-12 days

0

9

Gravely 03781253

GUARD, 48-52 SPINDLE SHEAVE

Note: (060, 061)

$51.99

$

Usually ships in 4-12 days

0

Gravely 03777953

GUARD, 60 RH SPINDLE SHEAVE

Note: (067)

$72.99

$

Usually ships in 4-12 days

0

10

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

11

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$110.99

$

Usually ships in 4-12 days

0

12

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 4 left!

0

13

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

Note: (060)

$112.99

$

Usually ships in 4-12 days

0

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (061, 067)

$129.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
