991061 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Transmission (Serial 000101 - 001999) Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

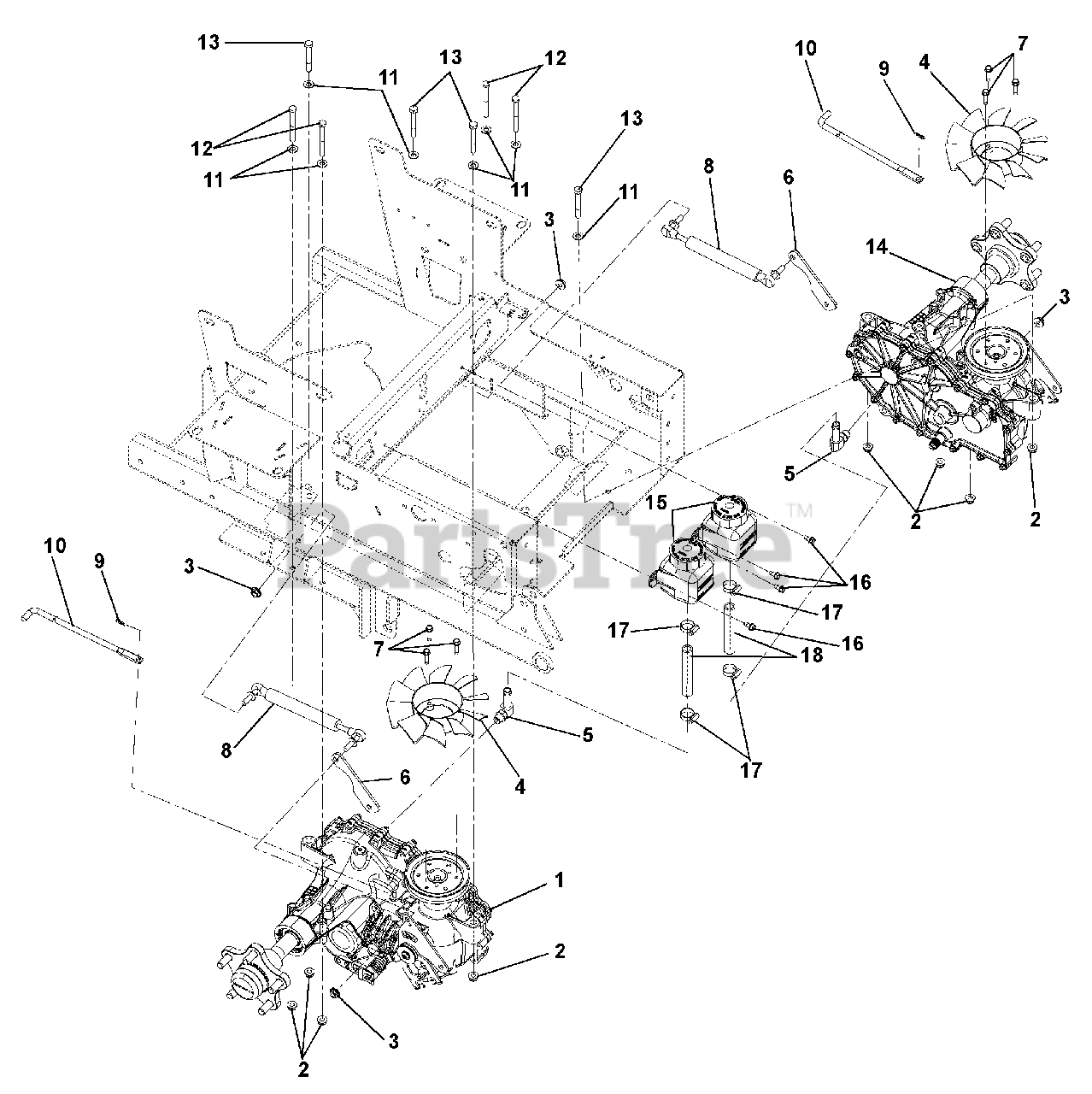

Transmission (Serial 000101 - 001999) Parts Diagram

  • Title
1

Gravely 03836100

Transaxle, ZT3400 Right Hand (Serial No. 000101–001999)

Note: (Serial No. 000101–001999)

$1551.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06500623

Nut, M8-1.25 Whiz Lock
(Superseded to 803-220C)

$

$

Not available

4

Gravely 03283500

Fan, 2800 Series Cooling

$25.99

$

In Stock, only 2 left!

0

5

Gravely 07001528

Fitting, Hydraulic (90 DEG)

Note: (90 DEG)

$

$

Not available

6

Gravely 03855000

Plate, Control Reforcement

$

$

Not available

7

Gravely 07412400

Screw, Tapping .25-20 x 1.00 Hex Washer Head Thread Rolling
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

8

$97.99

$

In Stock, only 1 left!

0

9

Gravely 06701900

Pin, Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

10

Gravely 03831100

Lever, 100I Dump Valve

$

$

Not available

11

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05962500

Bolt, Hex .31-18 x 3.00 Grade 5
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03836200

Transaxle, ZT3400 Left Hand (Serial No. 000101–001999)

Note: (Serial No. 000101–001999)

$1868.99

$

Usually ships in 4-12 days

0

15

Gravely 02970200

Tank, Expansion ZT2800 (Serial No. 000101–000999)

Note: (Serial No. 000101–000999)

$34.99

$

In Stock, only 2 left!

0

Gravely 03860200

Tank, Expansion ZT2800 (Serial No. 001000 & up)
(Superseded to 02970200)

Note: (Serial No. 001000 & up)

$34.99

$

In Stock, only 2 left!

0

16

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

In Stock, Qty 6

0

18

Gravely 03832300

Hose, 100I Hydro Overflow

$5.99

$

In Stock, only 2 left!

0

Gravely 21545100

Oil Filter, 2800 Transmission

$

$

Not available
