991060 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 001999) Discharge Chute & Belt Covers Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

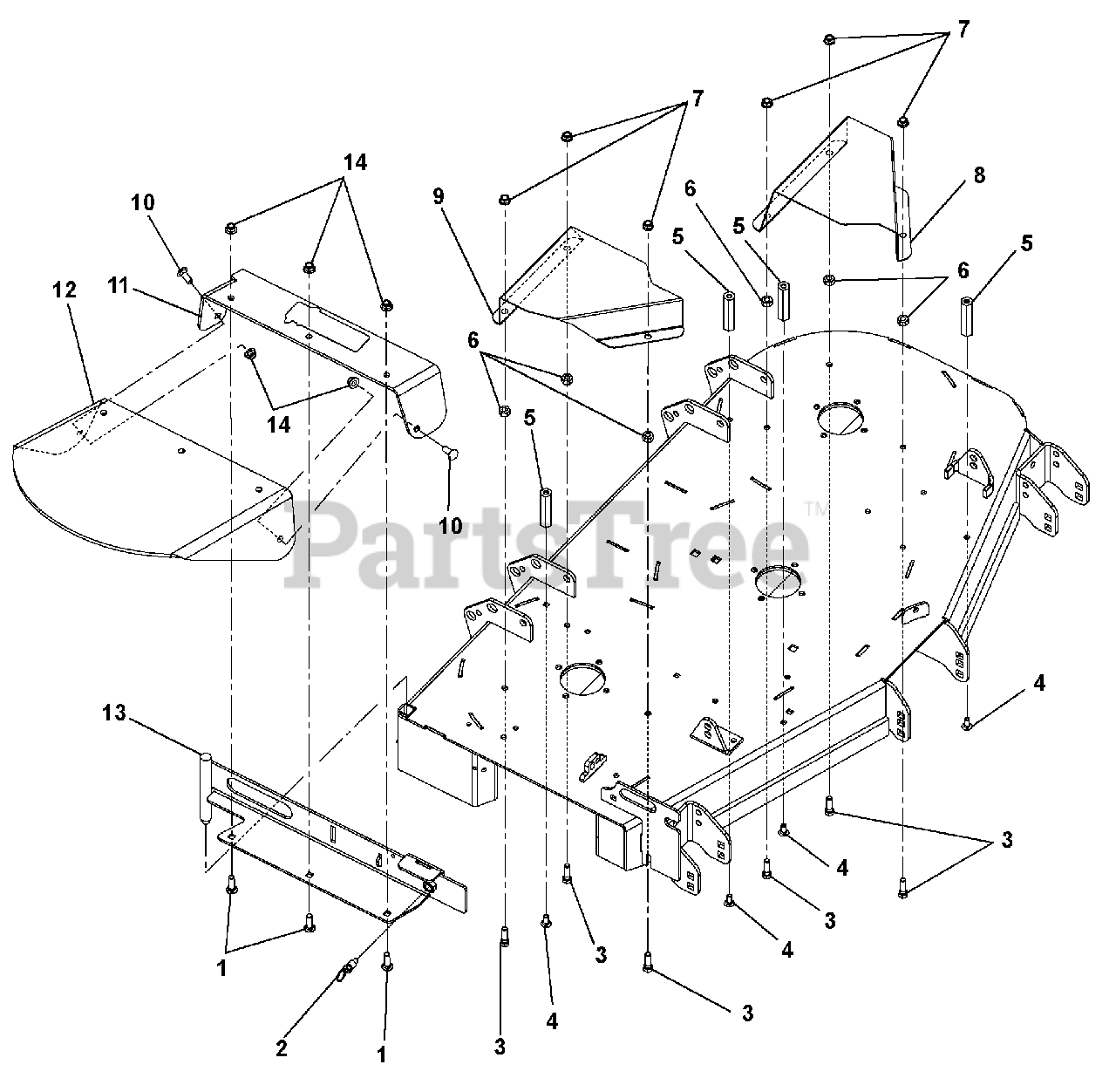

Discharge Chute & Belt Covers Parts Diagram

  • Title
1

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

2

Gravely 07000037

Pull Pin

$10.99

$

In Stock, only 1 left!

0

3

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

6

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03781153

Guard, 44-52 Left Hand Spindle Sheave (060, 061)

Note: (060, 061)

$70.99

$

Usually ships in 4-12 days

0

Gravely 03777853

Guard, 60 Left Hand Spindle Sheave (067)

Note: (067)

$81.99

$

Usually ships in 4-12 days

0

9

Gravely 03781253

Guard, 44-52 Right Hand Spindle Sheave (060, 061)

Note: (060, 061)

$51.99

$

Usually ships in 4-12 days

0

Gravely 03777953

Guard, 60 Right Hand Spindle Sheave (067)

Note: (067)

$72.99

$

Usually ships in 4-12 days

0

10

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

11

Gravely 00472353

Rubber Discharge Chute Support

$110.99

$

Usually ships in 4-12 days

0

12

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

13

Gravely 00472453

Weldment, 48" Discharge Chute Support (060)
(Superseded to 04757453)

Note: (060)

$112.99

$

Usually ships in 4-12 days

0

Gravely 00472553

Weldment, 52"-60" Discharge Chute Support (061, 067)
(Superseded to 04727953)

Note: (061, 067)

$129.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
