991056 (2560) - Ariens Max-Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Wheels Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 25hp Kohler

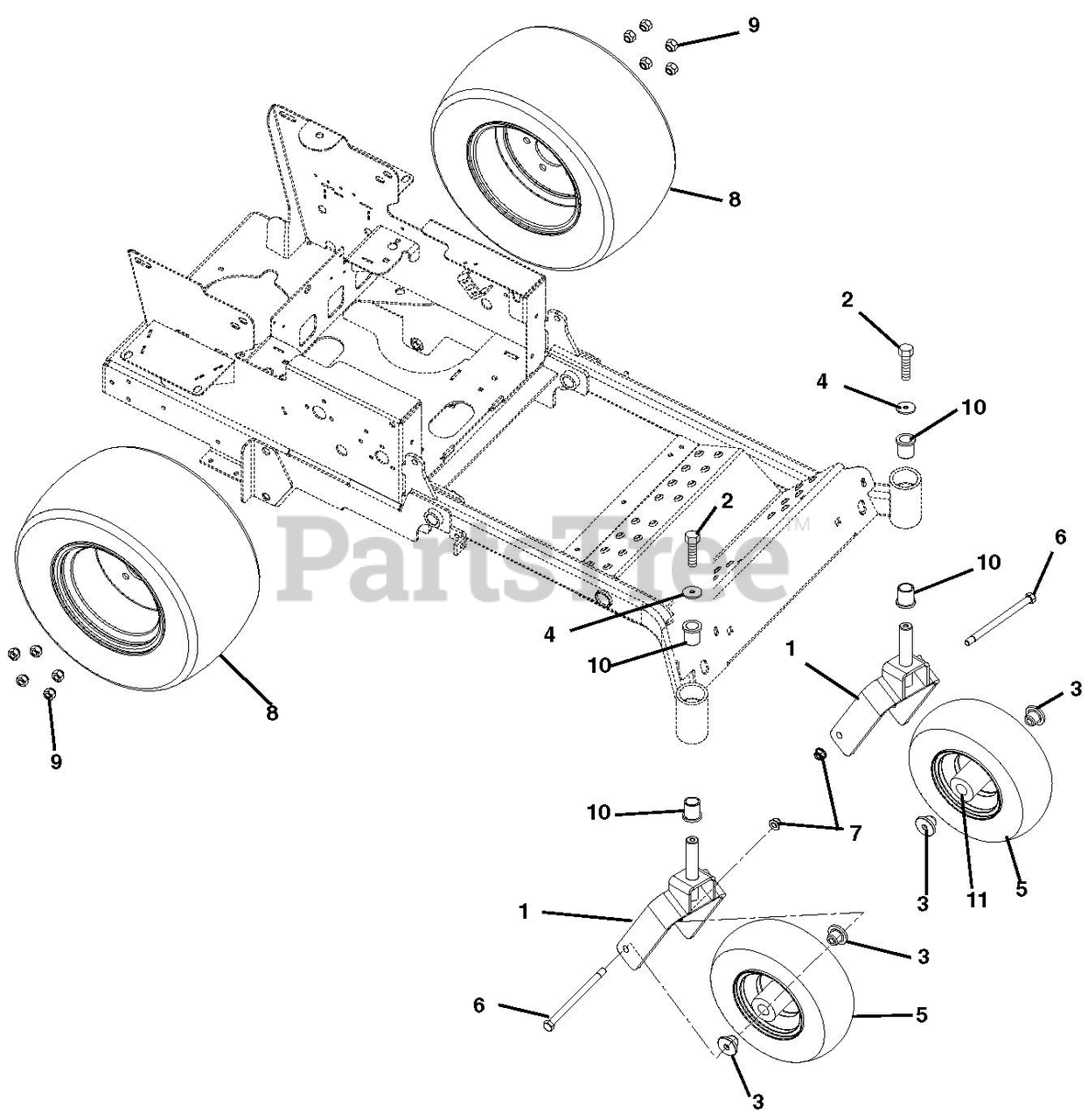

Wheels Parts Diagram

  • Title

1

Ariens 03774051

WMT, CASTER FORK (HD)

$170.99

$

Usually ships in 4-12 days

0

2

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

4

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0

5

Ariens 07100218

TIRE/WHEEL ASSY, 13X5.00-6
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

5

Ariens 07100219

TIRE, 13X5.00-6
(Superseded to 07101609)

$62.99

$

Usually ships in 4-12 days

0

6

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

7

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07100214

TIRE/WHEEL ASSY, 20X10.00-10

$193.99

$

Usually ships in 4-12 days

0

8

Ariens 07100215

TIRE, 20X10.00-10

$125.99

$

Usually ships in 4-12 days

0

9

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

11

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 19

0
