991056 (2560) - Ariens Max-Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Steering Controls Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 25hp Kohler

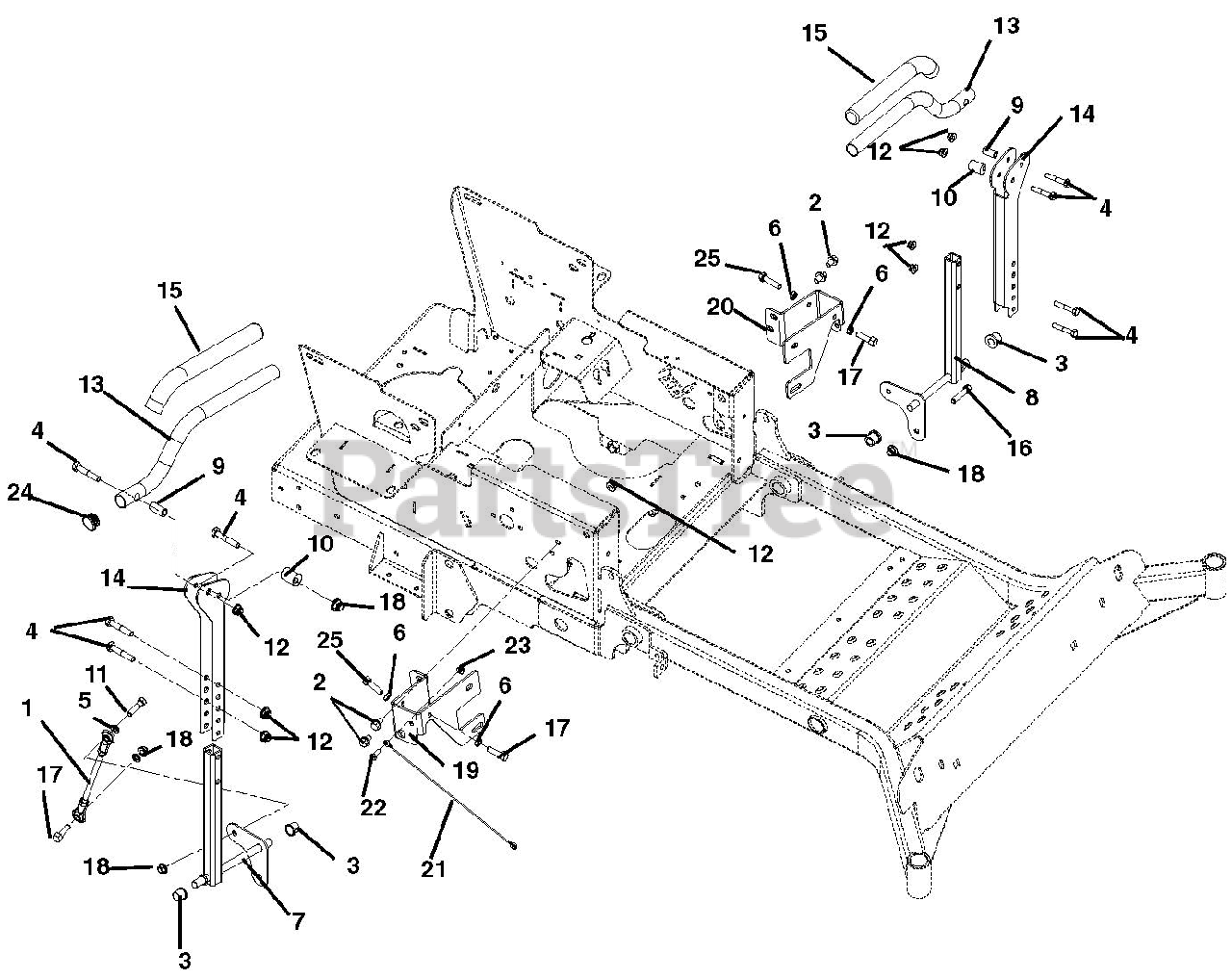

Steering Controls Parts Diagram

  • Title

1

Ariens 03251700

ASM, STEERING LINKAGE

$

$

Not available

2

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

4

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

5

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03752651

WMT, RH CTRL ARM

$

$

Not available

8

Ariens 03754551

WMT, LH CTRL ARM

$

$

Not available

9

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$6.49

$

In Stock, only 2 left!

0

10

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, only 4 left!

0

11

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02987851

HANDLEBAR, ZTXL

$83.99

$

Usually ships in 4-12 days

0

14

Ariens 03775051

BRKT, STEERING CONTROL (HD)

$77.99

$

In Stock, only 1 left!

0

15

Ariens 01570000

GRIP - HANDLEBAR

$17.99

$

In Stock, only 2 left!

0

16

Ariens 05942200

BLT-HEX .38-16X2.0 GR5 FTD YWZ

$2.99

$

In Stock, only 1 left!

0

17

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03752751

RH STEERING STOP BRKT - BLK

$82.99

$

Usually ships in 4-12 days

0

20

Ariens 03754751

BRKT, LH STEERING STOP

$87.99

$

Usually ships in 4-12 days

0

21

Ariens 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

22

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

24

Ariens 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

25

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0
