991056 (2560) - Ariens Max-Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Hydro-Gear Hydrostatic Pump - Left Hand Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 25hp Kohler

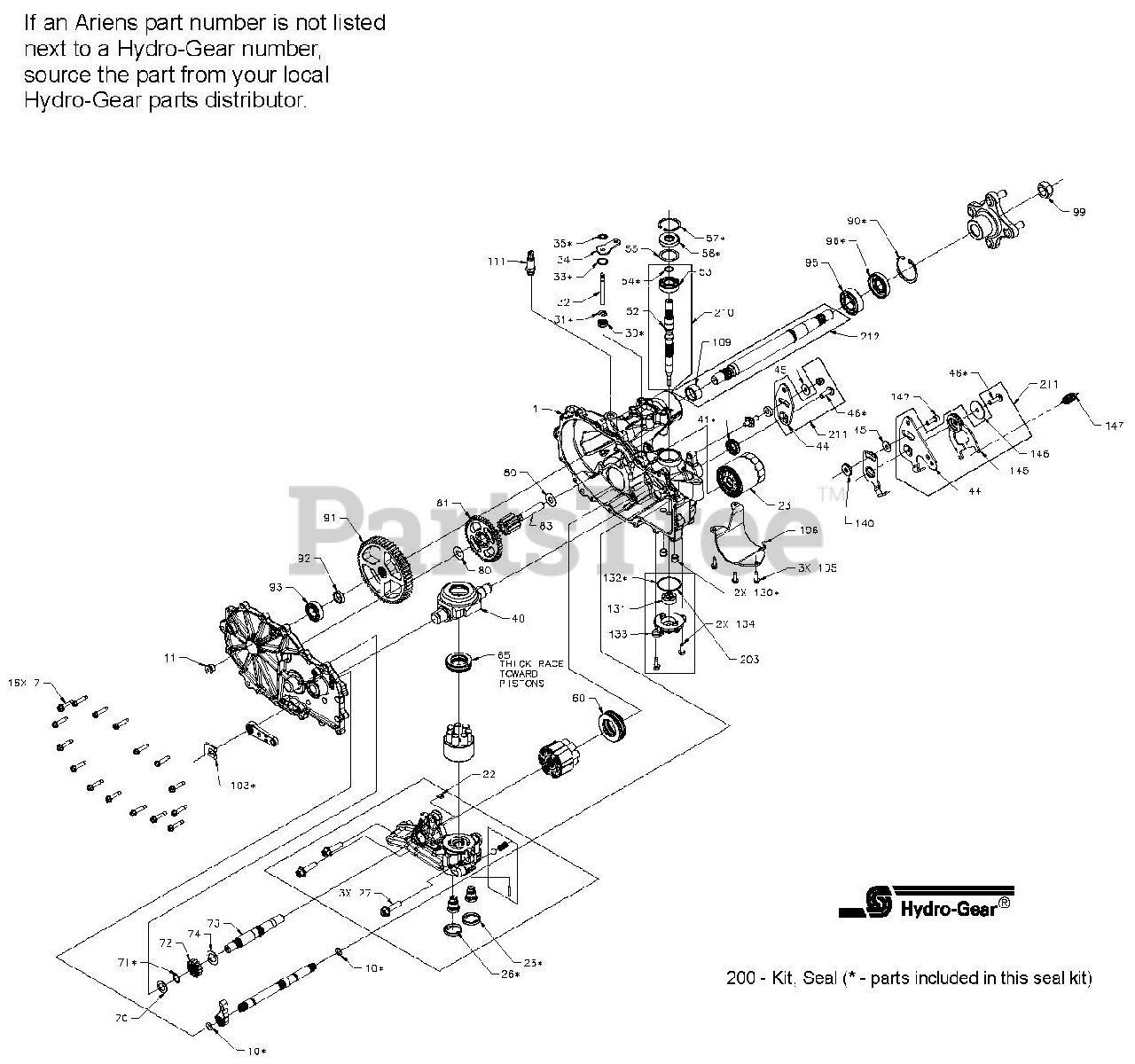

Hydro-Gear Hydrostatic Pump - Left Hand Parts Diagram

  • Title

1

Kit, Main Housing LH

Note: Hydro-Gear p/n 71421

$

$

Not available

7

Ariens 21543819

HFHCS 1/4-20 X 1.25"

Note: Hydro-Gear p/n 51190

$3.49

$

Usually ships in 4-12 days

0

10

O-Ring, 111 .103 x .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

Ariens 08613700

PLUG, STEEL (WITH SEAL)

Note: Hydro-Gear p/n 9005110-5600

$6.99

$

Usually ships in 4-12 days

0

NS

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

NS

20W50 Oil

Note: Hydro-Gear p/n N/A

$

$

Not available

22

Ariens 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$

$

Not available

23

Filter, Oil

Note: Hydro-Gear p/n 52114

$

$

Not available

26

Seal, Plug 1.25 x .25

Note: Hydro-Gear p/n 52162

$

$

Not available

27

HFHCS, 3/8-16 x 1.5

Note: Hydro-Gear p/n 52137

$

$

Not available

30

Ariens 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Ariens 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 14

0

32

Rod, Bypass

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Ariens 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Arm, Bypass

Note: Hydro-Gear p/n 52370

$

$

Not available

35

Ariens 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

Ariens 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

45

Ariens 08611200

WASHER

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

46

Ariens 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

52

Shaft, Input

Note: Hydro-Gear p/n 52155

$

$

Not available

53

Ariens 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$19.99

$

Usually ships in 4-12 days

0

54

Ring, Ret Wire .561 ID

Note: Hydro-Gear p/n 2000022

$

$

Not available

55

Ariens 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Ariens 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Ariens 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

Bearing, Thrust

Note: Hydro-Gear p/n 51462

$

$

Not available

65

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

70

Ariens 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

Ariens 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$

$

Not available

72

Gear, 13T, Steel

Note: Hydro-Gear p/n 52342

$

$

Not available

73

Shaft, Motor

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Ariens 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Ariens 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

81

Gear, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

83

Ariens 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Ariens 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

91

Gear, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

Spacer, .75 x 1.0 x .257

Note: Hydro-Gear p/n 52161

$

$

Not available

93

Bearing, Ball .75 x 40 x 12

Note: Hydro-Gear p/n 44121

$

$

Not available

95

Ariens 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 50771

$23.99

$

Usually ships in 4-12 days

0

96

Ariens 08614300

SEAL, LIP

Note: Hydro-Gear p/n 50772

$16.99

$

In Stock, only 1 left!

0

99

Ariens 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n 50863

$7.49

$

Usually ships in 4-12 days

0

103

Clip, Retaining

Note: Hydro-Gear p/n 52027

$

$

Not available

105

Ariens 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

106

Guard, Filter, LH

Note: Hydro-Gear p/n 52247

$

$

Not available

111

Fitting, Str 9/16-18 SAE .5 Barb

Note: Hydro-Gear p/n 71393

$

$

Not available

130

Tube, Connecting

Note: Hydro-Gear p/n 52157

$

$

Not available

131

Ariens 08611500

GEROTOR

Note: Hydro-Gear p/n 50273

$27.99

$

Usually ships in 4-12 days

0

132

O-Ring, -137, 0.103 x 2.05

Note: Hydro-Gear p/n 52250

$

$

Not available

133

Cover, Charge Pump

Note: Hydro-Gear p/n 52688

$

$

Not available

134

Ariens 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

140

Spacer, .320 x 1.00 x .179

Note: Hydro-Gear p/n 52527

$

$

Not available

142

Ariens 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Ariens 21543871

WASHER

Note: Hydro-Gear p/n 51950

$6.49

$

Usually ships in 4-12 days

0

147

Spring, Extension Rtn - 34 lbs

Note: Hydro-Gear p/n 51833

$

$

Not available

200

Kit, Seal ( * - parts included in this kit)

Note: Hydro-Gear p/n 71410

$

$

Not available

203

Kit, Charge Pump (includes items 131, 132, 133 & 134)

Note: Hydro-Gear p/n 71411

$

$

Not available

210

Kit, Input Shaft (includes items 52, 53 and 54)

Note: Hydro-Gear p/n 71442

$

$

Not available

211

Kit, Rtn CCW (includes items 44, 46 and 145)

Note: Hydro-Gear p/n 71599

$

$

Not available

212

Kit, Axle Shaft (includes items 94 & 109)

Note: Hydro-Gear p/n 71569

$

$

Not available
