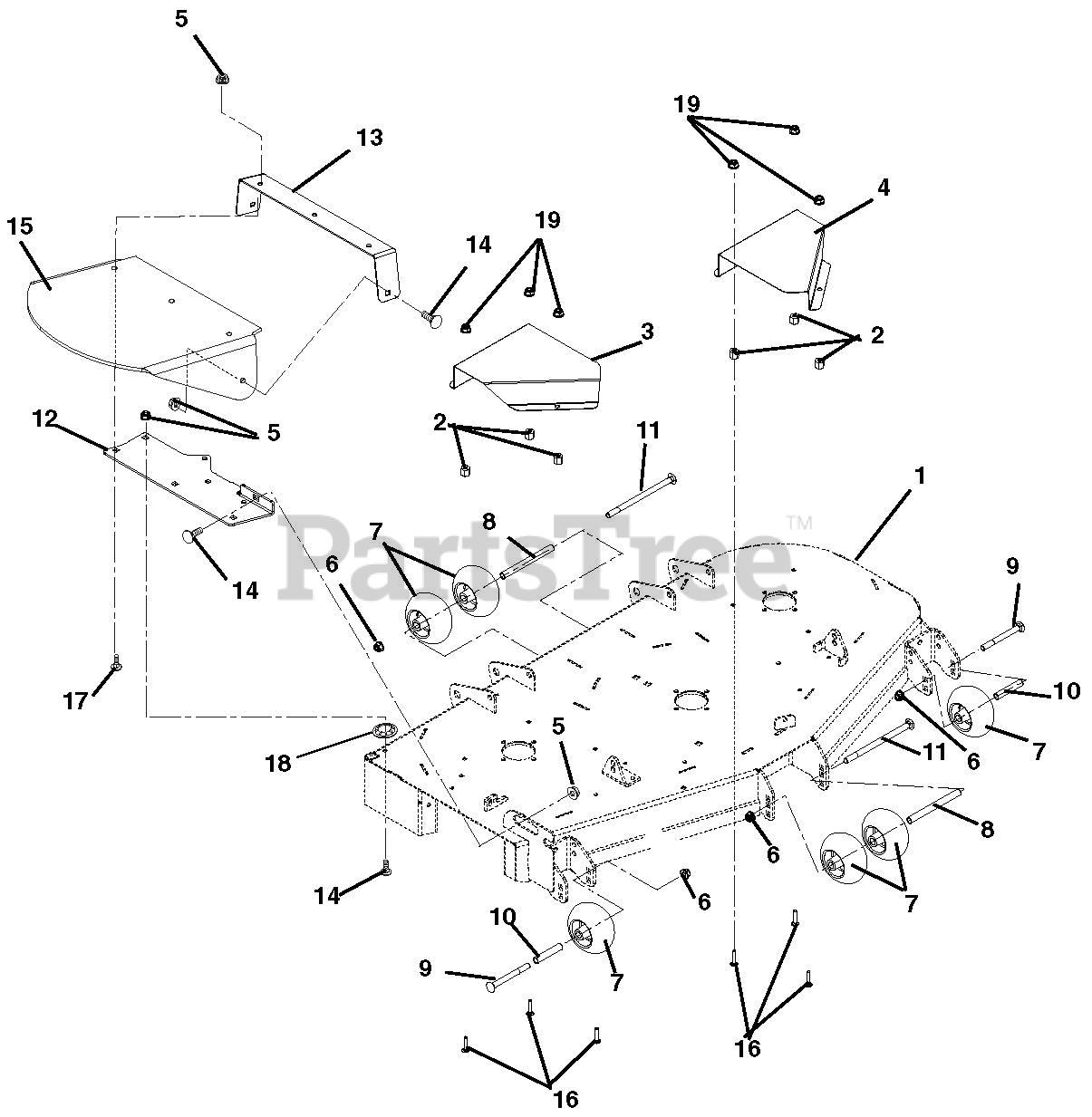

991056 (2560) - Ariens Max-Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Deck, Discharge Chute, anti-Scalp Rollers And Belt Covers Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 25hp Kohler

Deck, Discharge Chute, anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title
1

Ariens 02989259

60" 10GA SIDE DISCH DECK -ORNG
(Superseded to 59102700)

Note: (056)

$896.99

$

Usually ships in 4-12 days

0

1

Ariens 02984853

52" 10GA SIDE DISCH DECK - RED
(Superseded to 59102400)

Note: (065)

$1293.99

$

Usually ships in 4-12 days

0

2

Ariens 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03777959

GUARD, 60 RH SPINDLE SHEAVE

Note: (056)

$82.99

$

Usually ships in 4-12 days

0

3

Ariens 03781259

GUARD, 48-52 SPINDLE SHEAVE

Note: (065)

$

$

Not available

4

Ariens 03777859

GUARD, 60 LH SPINDLE SHEAVE

Note: (056)

$92.99

$

Usually ships in 4-12 days

0

4

Ariens 03781159

GUARD, 44-52 LH SPINDLE SHEAVE

Note: (065)

$

$

Not available

5

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$11.99

$

In Stock, Qty 20+

0

8

Ariens 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

9

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

11

Ariens 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

12

Ariens 03757259

PLATE,DISCH CHUTE SUPPORT (HD)

$75.99

$

Usually ships in 4-12 days

0

13

Ariens 03757159

BRKT, DISCHARGE CHUTE (HD)

$

$

Not available

14

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Ariens 00377800

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 4 left!

0

16

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 2 left!

0

19

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0
