991055 (ZT 2560 HD) - Gravely 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Steering Controls Parts Diagram

60" Zero-Turn Mower, 25hp Kohler

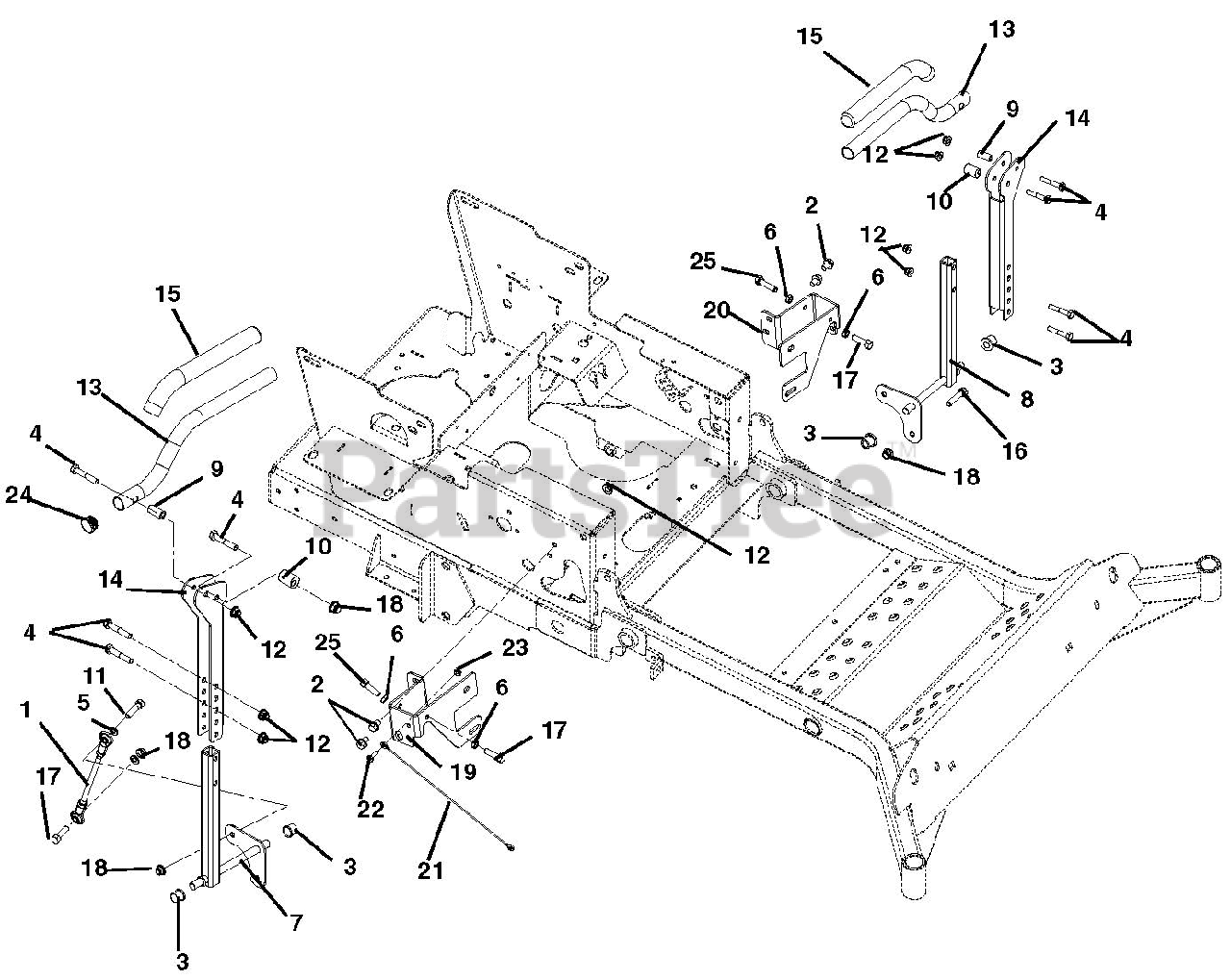

Steering Controls Parts Diagram

  • Title
1

Gravely 03251700

Assembly, Steering Linkage

$

$

Not available

2

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

4

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

5

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03752651

Weldment, RH Control Arm

$

$

Not available

8

Gravely 03754551

Weldment, LH Control Arm

$

$

Not available

9

Gravely 00364900

Bushing, Spacer .330 x .505/.500 x 1.01

$6.49

$

In Stock, only 2 left!

0

10

Gravely 00372300

Bushing, Spacer .328 x .750 x 1.01

$11.99

$

In Stock, only 4 left!

0

11

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 02987851

Handlebar, ZTXL

$83.99

$

Usually ships in 4-12 days

0

14

Gravely 03775051

Bracket, Steering Control

$77.99

$

In Stock, only 1 left!

0

15

Gravely 01570000

Grip, Handlebar

$17.99

$

In Stock, only 2 left!

0

16

Gravely 05942200

Bolt, Hex .375-16 x 2.00 Full Thread

$2.99

$

In Stock, only 1 left!

0

17

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03752751

Stop, Steering-Right Hand

$82.99

$

Usually ships in 4-12 days

0

20

Gravely 03754751

Stop, Steering-Left Hand

$87.99

$

Usually ships in 4-12 days

0

21

Gravely 06900317

Cable, 12.0 LANYARD, Nylon

$3.49

$

In Stock, only 2 left!

0

22

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06500012

Nut, Nyloc Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

24

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

25

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0
