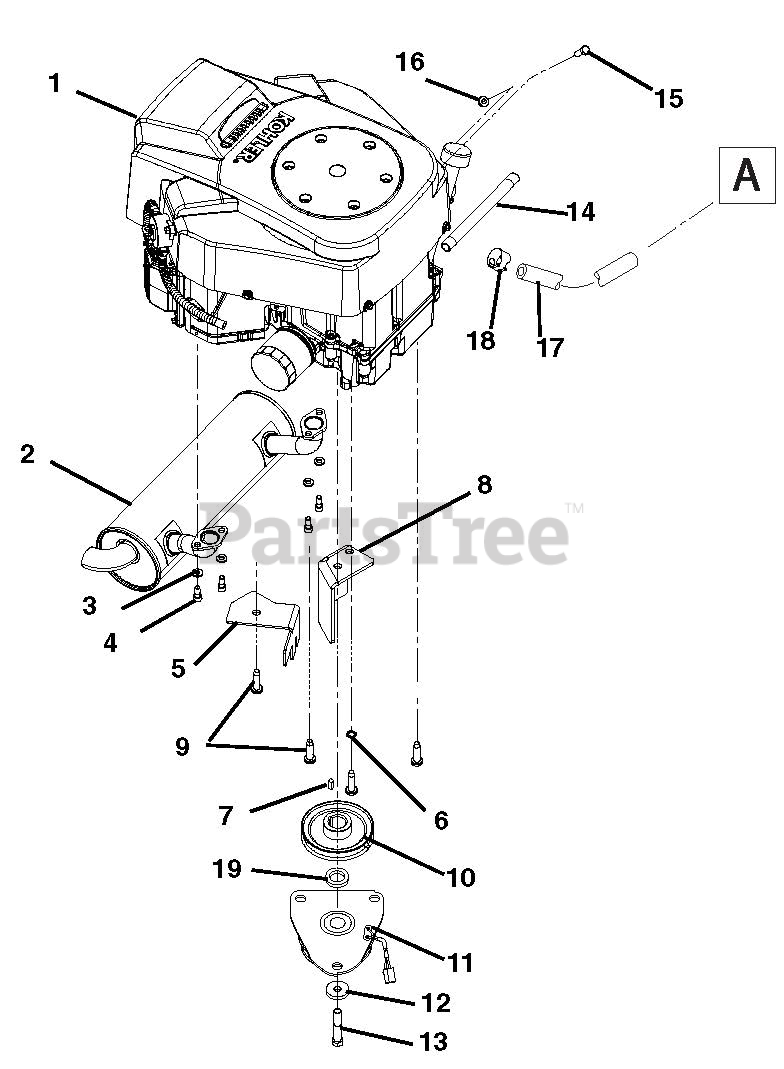

991053 (ZT 2348 HD) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200426

Engine, Kohler Courage

Note: (991055, 066)

$

$

Not available

1

Gravely 08200307

Engine, 25HP Kohler Courage-Pro

Note: (991054)

$

$

Not available

1

Gravely 08200323

Engine, 27HP Kohler Courage-Pro

Note: (991057)

$

$

Not available

1

Gravely 08200108

Engine, 23HP Kohler Courage

Note: (991052, 053)

$

$

Not available

2

Gravely 00470400

Muffler, Kohler Engine

$198.99

$

In Stock, only 1 left!

0

3

Gravely 06308600

Washer, Locking .31 x .078 Reg
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05933100

Screw, Cap .31-18 x .75 Socket Head
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 03772951

Guard, Clutch Wire

$31.99

$

Usually ships in 4-12 days

0

6

Gravely 06308700

Washer, Locking-EXT.391 x .682 x .036

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, only 3 left!

0

8

Gravely 03766851

Anchor, Ogura Clutch

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 07000104

Screw, Tapping Hex Washer Head .38-16 x 1.50

$3.99

$

In Stock, only 1 left!

0

10

Gravely 07300436

Sheave, 4.831 x 1.002 Engine
(Superseded to 07331767)

$113.99

$

In Stock, only 1 left!

0

11

Gravely 00200665

Clutch Assembly, OGURA

$362.99

$

In Stock, only 2 left!

0

12

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

13

Gravely 05900036

Bolt, Hex .44-20 x 2.50 Grade 5

$13.99

$

In Stock, only 1 left!

0

14

Gravely 00588700

Hose, Hydraulic .38-11-0K M6N0-F6J0

$50.99

$

Usually ships in 4-12 days

0

15

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

Hose, Gas Line Low Perm

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05500202

Spacer, 1.002ID x 1.75 OD x .266

$

$

Not available
