991052 (ZT 2344 HD) - Gravely 44" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Transmission Parts Diagram

44" Zero-Turn Mower, 23hp Kohler

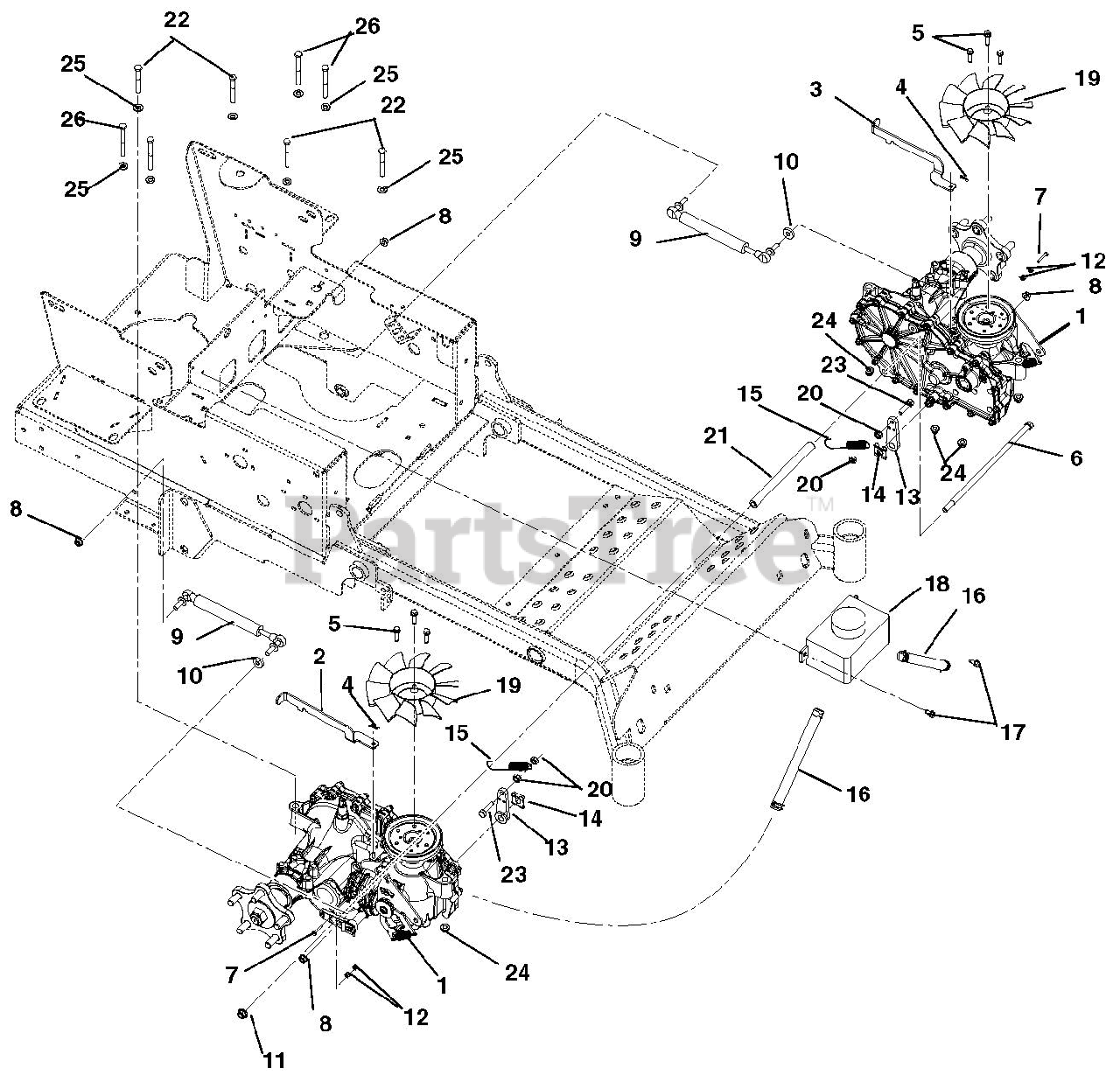

Transmission Parts Diagram

  • Title

1

Gravely 03283700

Transaxle, 2800 Series- Left Hand
(Superseded to 04827700)

$1571.99

$

Usually ships in 4-12 days

0

1

Gravely 03283600

Transaxle, 2800 Series- Right Hand
(Superseded to 04827800)

$1577.99

$

Usually ships in 4-12 days

0

2

Gravely 03282851

Right Hand Dump Valve Lever- Black

$33.99

$

In Stock, only 1 left!

0

3

Gravely 03282951

Left Hand Dump Valve Lever- Black

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 06701900

Pin-Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

5

Gravely 07412400

Screw, Tapping .25-20 x 1.00 Hex Washer Head Thread
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 05901315

Bolt, Hex .38-16 x 11.00 Grade 5
(Superseded to 05901921)

$7.99

$

In Stock, only 1 left!

0

7

Gravely 06117800

Screw, Machine 8-32 x 1.00 Hex Washer Head

Note: (SN 000101 - 000999)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06500623

Nut, M8-1.25 WHIZ Lock
(Superseded to 803-220C)

$

$

Not available

9

Gravely 00188700

Damper

$97.99

$

In Stock, only 2 left!

0

10

Gravely 06439100

Washer, Flat-Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06531300

Nut, Locking-Nylon 8-32

Note: (SN 000101 - 000999)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 02996500

Arm, Brake

Note: (SN 000101 - 000999)

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 02996600

Clip, Brake Arm

Note: (SN 000101 - 000999)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 08300436

Spring, Tension .056 x .60 x 4.60 LG

Note: (SN 000101 - 000999)

$36.99

$

In Stock, only 2 left!

0

16

Gravely 03251900

Assembly, Hydro Overflow Tank Hose

$17.99

$

In Stock, only 2 left!

0

17

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 02958700

Tank, Expansion

$31.99

$

In Stock, only 1 left!

0

19

Gravely 03283500

Fan, Cooling

$25.99

$

Usually ships in 4-12 days

0

20

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

Note: (SN 000101 - 000999)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03367200

Spacer, .38 ID x 5/8 OD x 7.72

$14.99

$

In Stock, only 1 left!

0

22

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

Note: (SN 000101 - 000999)

$2.49

$

In Stock, Qty 12

0

24

Gravely 06545400

Nut, Nyloc Flange .312-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05962500

Bolt, Hex .31-18 x 3.00 Grade 5
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0
