991051 (ZT 2648 HD) - Gravely 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: 000101 & Above) Engine And Clutch Parts Diagram

48" Zero-Turn Mower, 26hp Briggs & Stratton

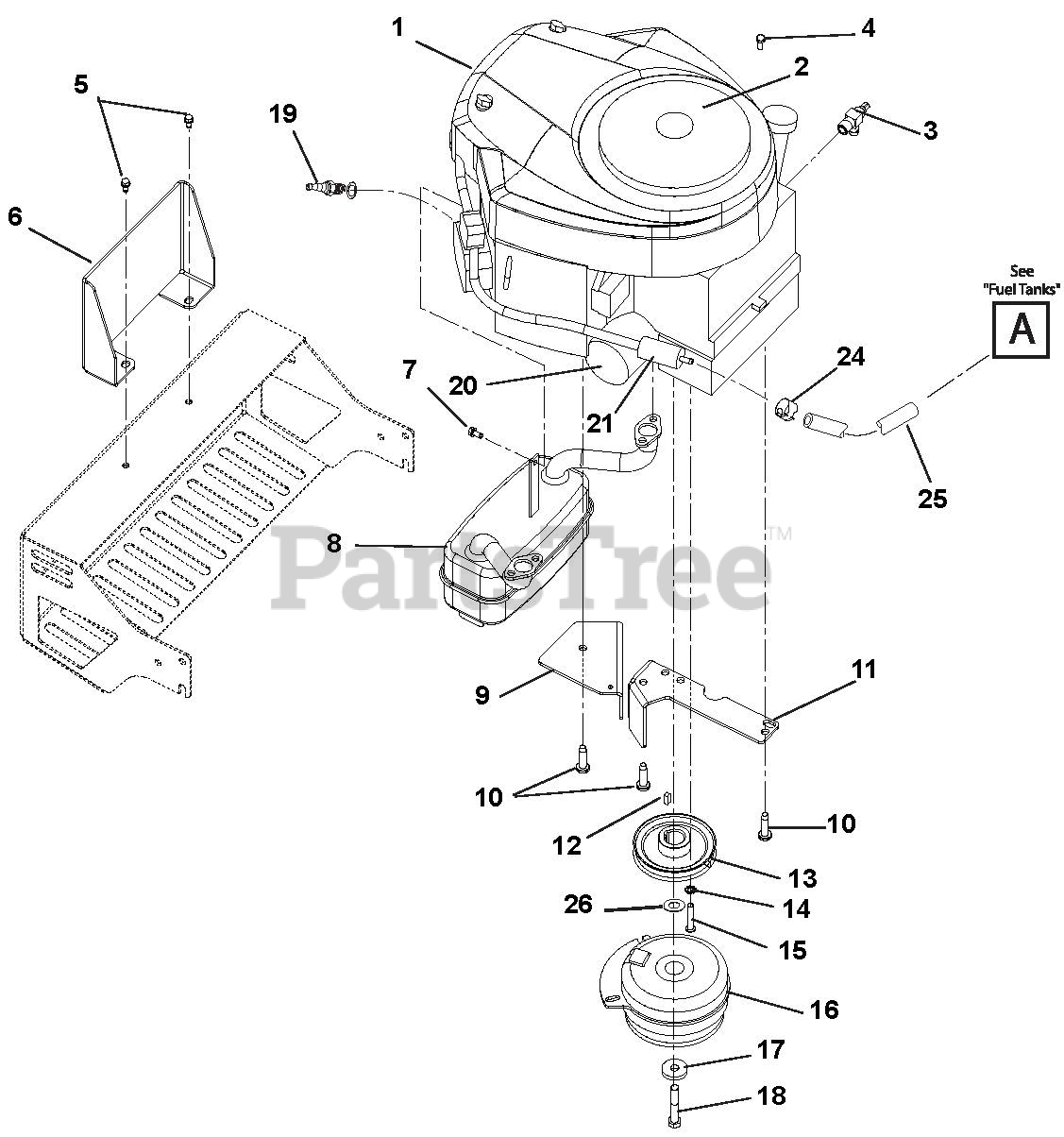

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200325

Engine, Briggs & Stratton 26HP ELS

$

$

Not available

1

Gravely 08200324

Engine, 24HP Briggs & Stratton ELS

Note: (991050)

$

$

Not available

1

Gravely 00181777

Engine, 26HP Briggs & Stratton ELS

Note: (051 - SN 000101 - 000499)

$

$

Not available

1

Gravely 08200325

Engine, 26HP Briggs & Stratton ELS

Note: (051 - SN 000500 and up)

$

$

Not available

2

Gravely 03275500

Guard, Briggs and Stratton Engine

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 00429000

Drain, .50 Oil

$39.99

$

In Stock, only 1 left!

0

4

Gravely 06100206

Screw, 8-16 x .87 PHPAN 3 LOBE

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03262151

Briggs and Stratton Carburetor Guard, Black

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 01557000

Muffler Assembly

$155.99

$

Usually ships in 4-12 days

0

9

Gravely 01059951

Guard, Clutch Wire- CZ

$25.99

$

In Stock, only 1 left!

0

10

Gravely 07000104

Bolt, Tapping .38-16 x 1.5

$3.99

$

In Stock, only 1 left!

0

11

Gravely 00395651

Weldment, Clutch Stop

$96.99

$

Usually ships in 4-12 days

0

12

Gravely 06602700

Key, Square .25 x .625 x .25

$3.99

$

In Stock, only 3 left!

0

13

Gravely 07300436

Sheave, 4.831 x 1.002 Engine
(Superseded to 07331767)

Note: (991050)

$113.99

$

In Stock, only 1 left!

0

13

Gravely 07300436

Sheave, 4.831 x 1.002 Engine
(Superseded to 07331767)

Note: (991051 - SN 000500 and up)

$113.99

$

In Stock, only 1 left!

0

13

Gravely 07300106

Sheave, 4.831 x 1.127
(Superseded to 07331667)

Note: (991051 - SN 000101 - 000499)

$

$

Not available

14

Gravely 06308700

Washer, Locking-EXT .326 x .599 x .031

$1.99

$

Usually ships in 4-12 days

0

15

Gravely 05901308

Bolt, Button Head .31-18 x 1.75

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 03368000

Clutch, Electric

Note: (991050)

$530.99

$

Usually ships in 4-12 days

0

16

Gravely 03368000

Clutch, Electric

Note: (991051 - SN 000500 and up)

$530.99

$

Usually ships in 4-12 days

0

16

Gravely 02999900

Clutch, Electric

Note: (991051 - SN 000101 - 000499)

$581.99

$

Usually ships in 4-12 days

0

17

Gravely 06443500

Washer, Flat-Steel .463 x 1.375 x .25

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 05900036

Bolt, Hex .44-20 x 2.50 Grade 5

$13.99

$

In Stock, only 1 left!

0

19

Gravely 21534100

Plug, Spark

Note: (CHAMPION #RC12YC)

$4.49

$

In Stock, Qty 20+

0

20

Gravely 21544500

Filter, Oil Briggs and Stratton

$13.99

$

In Stock, Qty 20+

0

21

Gravely 21544600

Filter, Fuel Briggs and Stratton
(Superseded to 00682500)

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 21544700

Filter, Air Briggs and Stratton

$34.99

$

Usually ships in 4-12 days

0

21

Gravely 21544800

Filter, Air Pre- Briggs and Stratton

$23.99

$

Usually ships in 4-12 days

0

24

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06434200

Washer, Thrust 1.125 x 1.750 x .123

$20.99

$

Usually ships in 4-12 days

0
