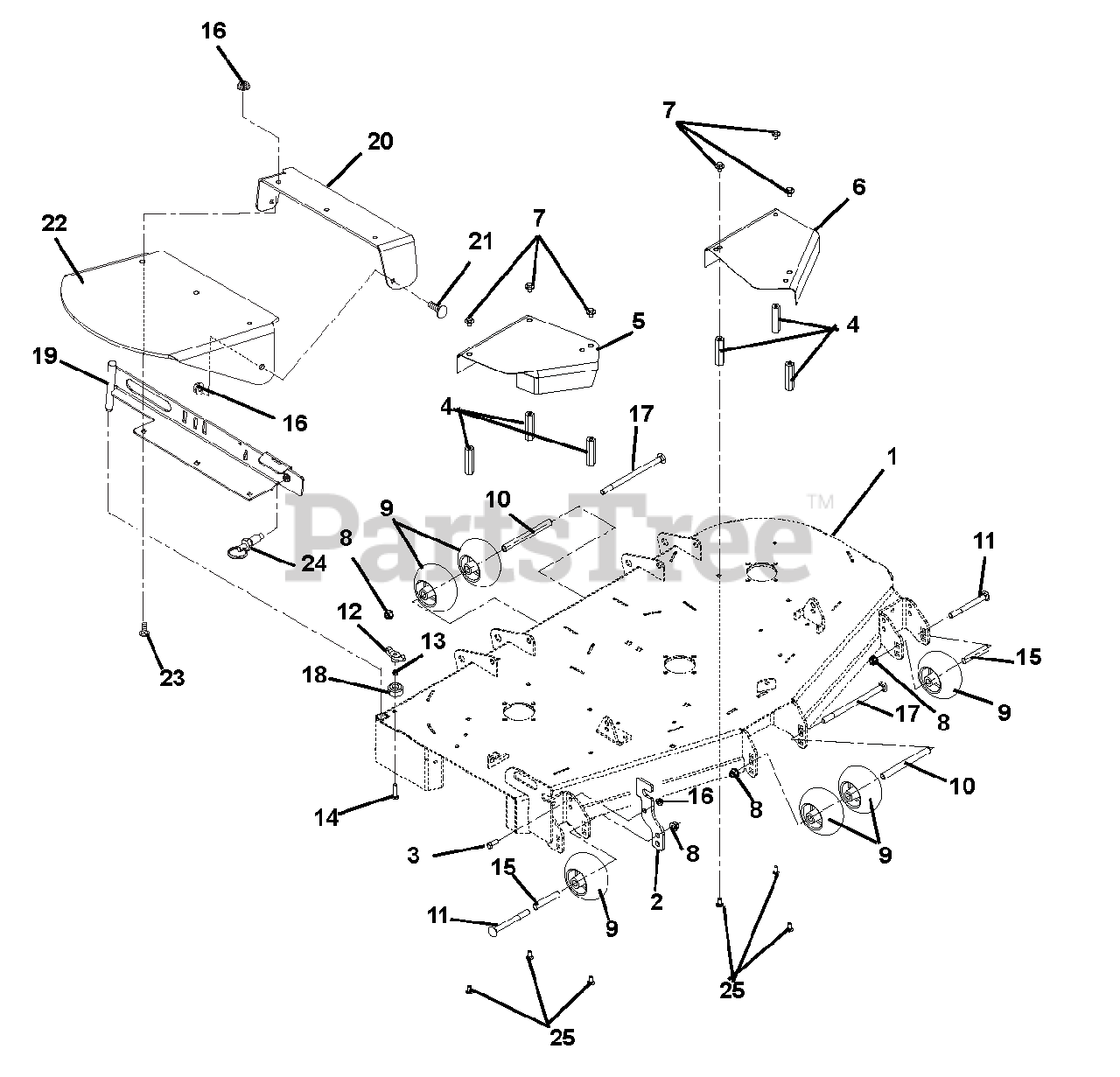

991039 (2452 HD) - Ariens Zoom 52" Zero-Turn Mower, 24hp Briggs & Stratton (SN: 000200 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

Zoom 52" Zero-Turn Mower, 24hp Briggs & Stratton

Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

  • Title

1

Ariens 02984859

52" 10GA SIDE DISCH DECK-ORNG
(Superseded to 59102800)

Note: (039)

$1099.99

$

Usually ships in 4-12 days

0

1

Ariens 02989259

60" 10GA SIDE DISCH DECK -ORNG
(Superseded to 59102700)

Note: (040)

$896.99

$

Usually ships in 4-12 days

0

2

Ariens 00474759

BRACKET, CHUTE STORAGE

$

$

Not available

3

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07000027

NUT, COUPLING .31-18 X 3.00

$28.99

$

In Stock, only 3 left!

0

5

Ariens 00439459

GUARD, 48"-52" RH SPNDL SHV

Note: (039)

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 00370659

GUARD, 60" RH SPINDLE SHEAVE

Note: (040)

$56.99

$

Usually ships in 4-12 days

0

6

Ariens 00438959

GUARD, 44"-52" LH SPNDL SHEAVE

Note: (039)

$

$

Not available

6

Ariens 00371459

GUARD, 60" LH SPINDLE SHEAVE

Note: (040)

$39.99

$

Usually ships in 4-12 days

0

7

Ariens 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$12.99

$

In Stock, Qty 20+

0

10

Ariens 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

11

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

12

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

15

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

16

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

18

Ariens 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

In Stock, only 1 left!

0

19

Ariens 00472559

WMT, 52"-60" DISCH CHUTE MTG
(Superseded to 00980559)

$136.99

$

Usually ships in 4-12 days

0

20

Ariens 00472359

SUPPORT, RUBBER DISCH CHUTE

$92.99

$

Usually ships in 4-12 days

0

21

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

22

Ariens 00377800

CHUTE, RUBBER DISCHARGE

$91.99

$

In Stock, only 4 left!

0

23

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

24

Ariens 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

Usually ships in 4-12 days

0

25

Ariens 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
