991039 (2452 HD) - Ariens Zoom 52" Zero-Turn Mower, 24hp Briggs & Stratton (SN: 000200 & Above) Brakes Parts Diagram

Zoom 52" Zero-Turn Mower, 24hp Briggs & Stratton

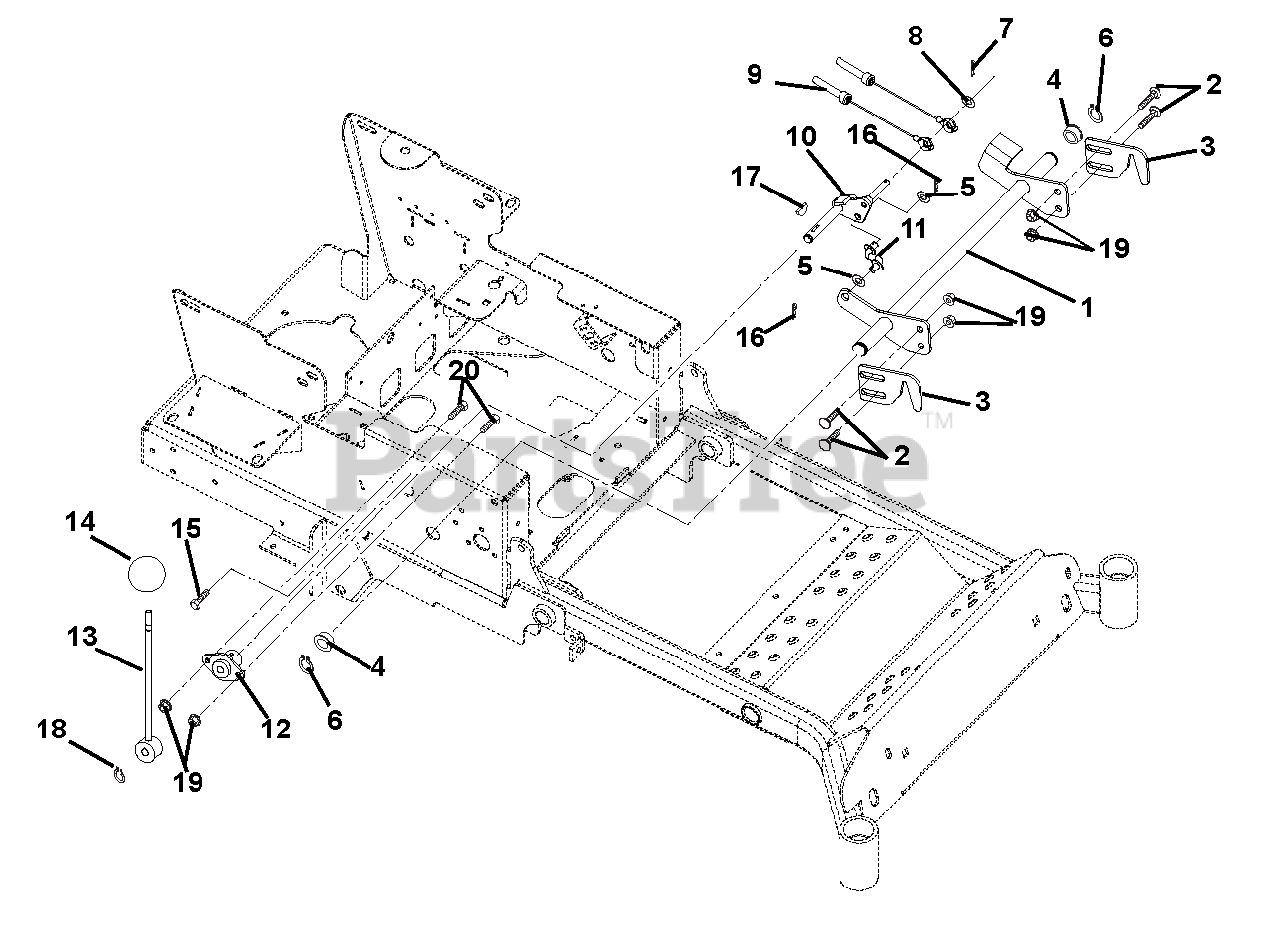

Brakes Parts Diagram

  • Title

1

Ariens 03251200

WMT, NEUTRAL LOCK ARM

$

$

Not available

2

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03251351

NEUTRAL LOCK LATCH - BLACK
(Superseded to 03861451)

$

$

Not available

4

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

7

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

8

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06900318

CABLE, BRAKE ACTUATING

$40.99

$

In Stock, only 2 left!

0

10

Ariens 03251100

WMT, PARK BRAKE ARM

$62.99

$

Usually ships in 4-12 days

0

11

Ariens 03251400

LINK, BRAKE INTERLOCK

$

$

Not available

12

Ariens 01522000

BUSHING, FLANGED

$34.99

$

In Stock, only 1 left!

0

13

Ariens 04912600

WMT, PARKING BRAKE LEVER

$122.99

$

Usually ships in 4-12 days

0

14

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 8

0

15

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

16

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

18

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

19

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
