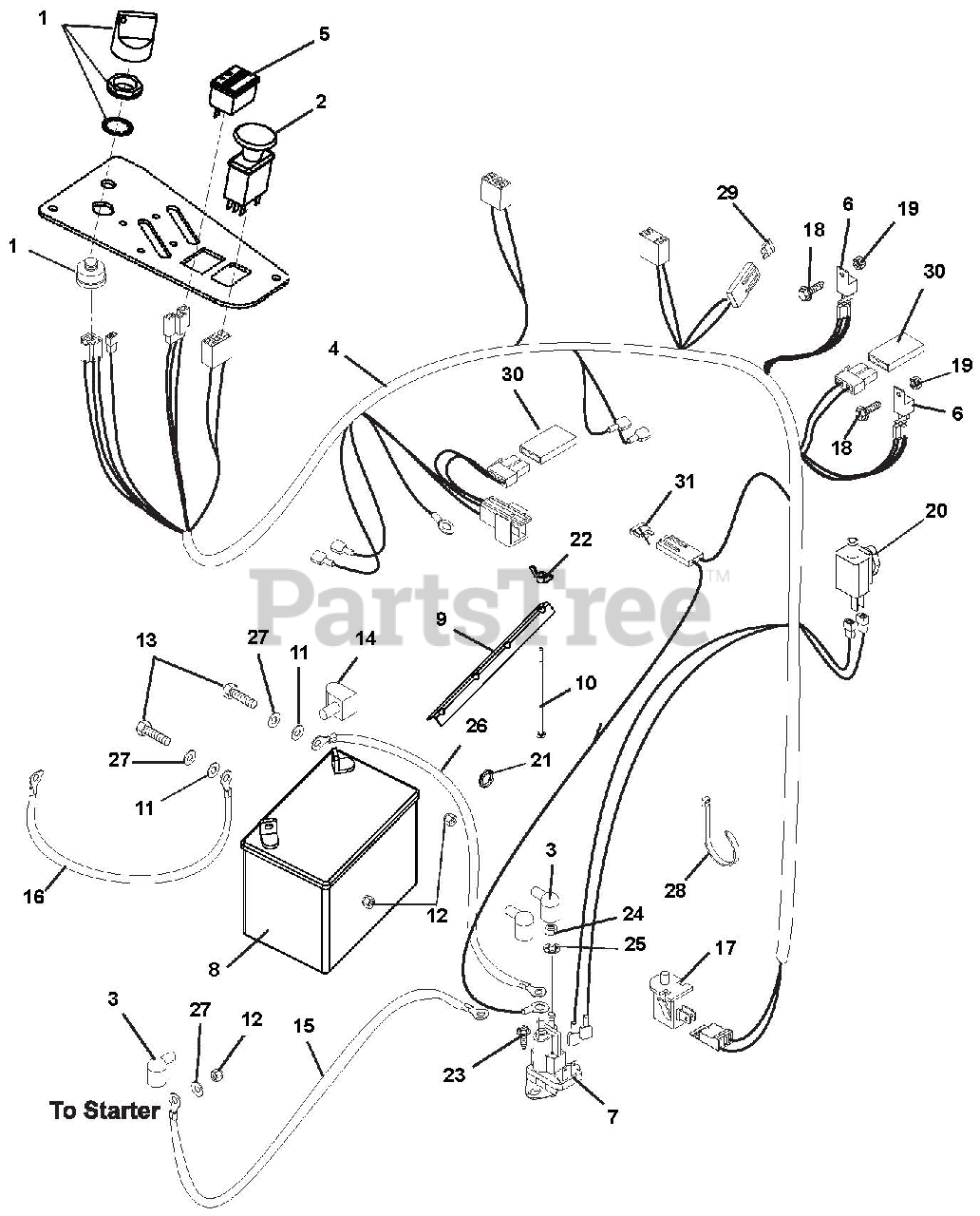

991038 (ZT 2760 HD) - Gravely 60" Zero-Turn Mower, 27hp Kohler Courage (SN: 000200 & Above) Electrical System Parts Diagram

60" Zero-Turn Mower, 27hp Kohler Courage

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

Key Switch
(Superseded to 04331700)

$43.99

$

In Stock, Qty 11

0

2

Gravely 03261900

PTO Switch
(Superseded to 04762400)

$155.99

$

In Stock, only 1 left!

0

3

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

4

Gravely 03288500

Harness- CZ Remote SOL.
(Superseded to 04762400)

$155.99

$

In Stock, only 1 left!

0

5

Gravely 00456600

Hour Meter – Digital
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

6

Gravely 00432100

Relay, Sealed W/Diode
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

7

Gravely 00696900

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

8

Gravely 01554800

Battery

$

$

Not available

9

Gravely 03494051

Hold Down

$11.99

$

In Stock, only 2 left!

0

10

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06437300

Washer, Flat Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 00182600

Cable, Positive Battery 9.00"
(Superseded to 03286000)

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 08940600

Cable, Negative Battery
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

17

Gravely 02754100

Switch, Snap Mounting

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

18

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 03252300

Switch, Single Pole

Note: (N.O.)

$13.99

$

In Stock, only 1 left!

0

21

Gravely 07500036

Grommet, 2.12"ID .12"Groove Width, 2.50"Groove Diameter

$

$

Not available

22

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

23

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

25

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 03492500

Cable, Starter

$21.99

$

Usually ships in 4-12 days

0

27

Gravely 06308400

Washer, Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07517300

Tie, Cable LG 5.50

$

$

Not available

29

Gravely 00580600

Fuse 20AMP

$5.99

$

In Stock, Qty 12

0

30

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

31

Gravely 09351100

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0
