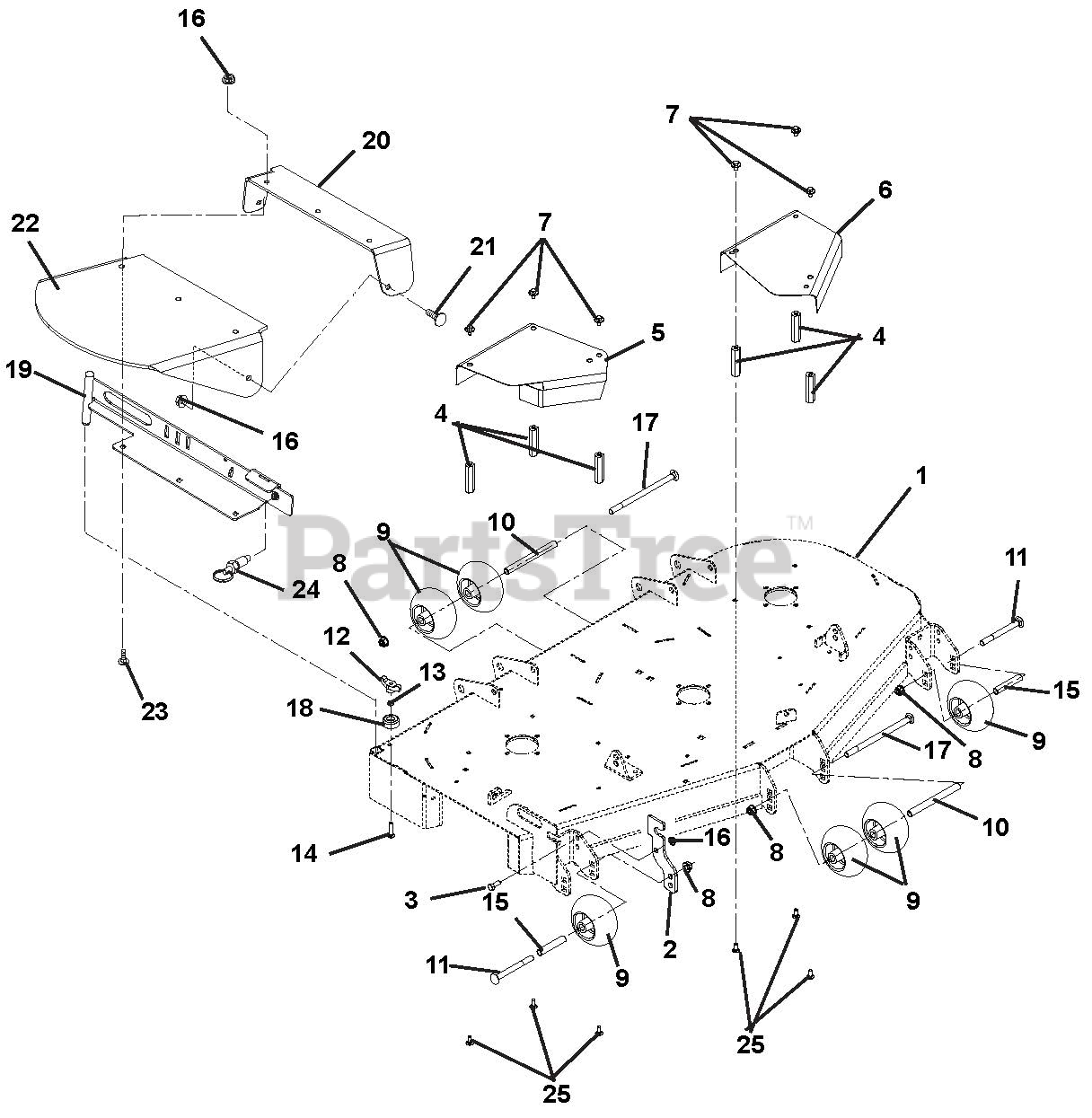

991037 (ZT 2552 HD) - Gravely 52" Zero-Turn Mower, 25hp Kohler Courage (SN: 000200 & Above) Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers - 52" And 60 Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Courage

Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers - 52" And 60 Parts Diagram

  • Title

1

Gravely 02984853

Weldment, 52" Side Discharge Deck
(Superseded to 59102400)

Note: (991037)

$1293.99

$

Usually ships in 4-12 days

0

1

Gravely 02989253

Weldment, 60" Side Discharge Deck
(Superseded to 59102300)

Note: (991038)

$1293.99

$

Usually ships in 4-12 days

0

2

Gravely 00474753

Bracket, Chute Storage

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

5

Gravely 00439453

Guard, 48"-52" Right Hand Spindle Sheave Guard

Note: (991037)

$48.99

$

Usually ships in 4-12 days

0

5

Gravely 00370653

Guard, 60" Right Hand Spindle Sheave

Note: (991038)

$45.99

$

In Stock, only 2 left!

0

6

Gravely 00438953

Guard, 44"-52" Left Hand Spindle Sheave

Note: (991037)

$

$

Not available

6

Gravely 00371453

60" DECK Left Hand Sheave Guard- Red

Note: (991038)

$56.99

$

In Stock, only 1 left!

0

7

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00473600

Anti-Scalp Wheel
(Superseded to 03905900)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

Spacer

$21.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 07531700

Knob, Wing .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

15

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

18

Gravely 07500009

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 00472553

52 in. & 60 in. Discharge Chute Mounting Weldment
(Superseded to 04727953)

$129.99

$

In Stock, only 2 left!

0

20

Gravely 00472353

Rubber Discharge Chute Support

$110.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

22

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

23

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 07000037

Pin, Pull

$10.99

$

In Stock, only 1 left!

0

25

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75 Loctite
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
