991036 (PM 48Z) - Gravely Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000200 & Above) Mechanical Lift Parts Diagram

Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki

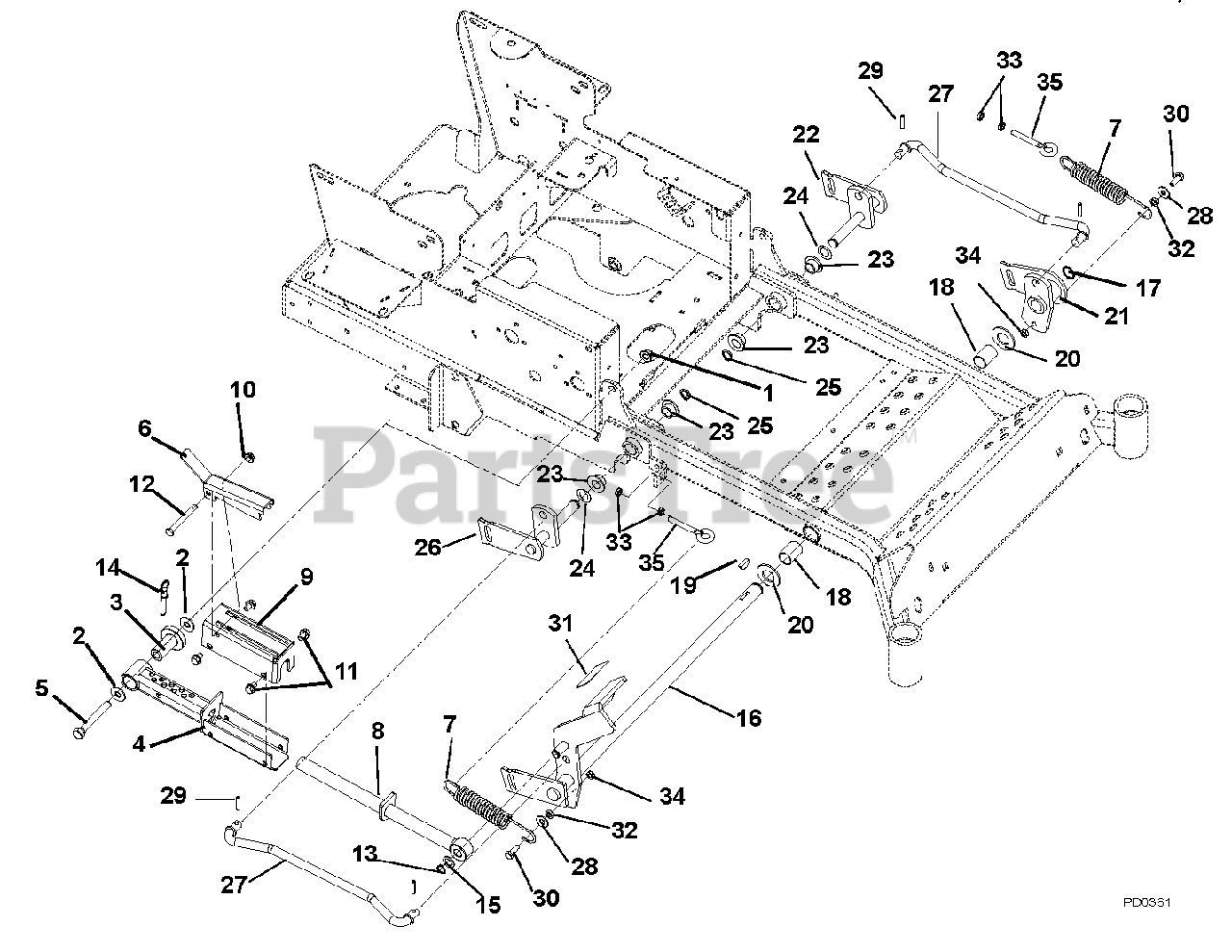

Mechanical Lift Parts Diagram

  • Title

1

Gravely 06500010

Nut, Locking Top Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06430200

Washer, Flat Steel .531 x 1.25 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

4

Gravely 09286251

Weldment, Mechanical Lift

$216.99

$

Usually ships in 4-12 days

0

5

Gravely 05960100

Bolt, Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 09299651

Lock-Up, Mechanical Lift

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 08319000

Spring, Tension .162 x 1.25 x 8.25 Weldment 25

$33.99

$

In Stock, Qty 6

0

8

Gravely 09291500

Weldment, Mechanical Lift Shaft

$150.99

$

Usually ships in 4-12 days

0

9

Gravely 09299451

Weldment, Mechanical Lift Cover

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 05709200

Ring, Retaining External .625 x .050

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 06436100

Washer, Flat Steel .630 x .005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 02988500

Weldment, Foot Operated Deck Lift

$

$

Not available

17

Gravely 05707300

Ring, Retaining External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

18

Gravely 05500034

Bushing 1.00 ID x 1.125 OD x 1.50

$6.99

$

In Stock, only 3 left!

0

19

Gravely 06608900

Key, Woodruff .25 x 1.00

$3.99

$

In Stock, Qty 18

0

20

Gravely 06443000

Washer, Flat Steel 1.062 x 2.0 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

21

Gravely 00441000

Weldment, Left Hand Mower Lift Arm

$99.99

$

Usually ships in 4-12 days

0

22

Gravely 00481600

Weldment, Left Hand Rear Mower Lift Arm

$66.99

$

Usually ships in 4-12 days

0

23

Gravely 05518400

Bushing, Flange Nylon .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

24

Gravely 06413400

Washer, Hardened Steel .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

25

Gravely 05714600

Ring, Retaining External .689 x .077

$2.49

$

In Stock, Qty 5

0

26

Gravely 00481500

Weldment, Right Hand Rear Mower Lift Arm

$83.99

$

Usually ships in 4-12 days

0

27

Gravely 00164700

Rod, Lift Assist
(Superseded to 04063000)

$

$

Not available

28

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05800001

Pin, Roll .25 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 00270100

Grip, Pedal

$3.49

$

In Stock, Qty 5

0

32

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

33

Gravely 06535900

Nut, Hex-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06537200

Nut, Locking-Jam-Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 07030000

Bolt, Eye .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0
