991027 (PM 148M XDZ) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

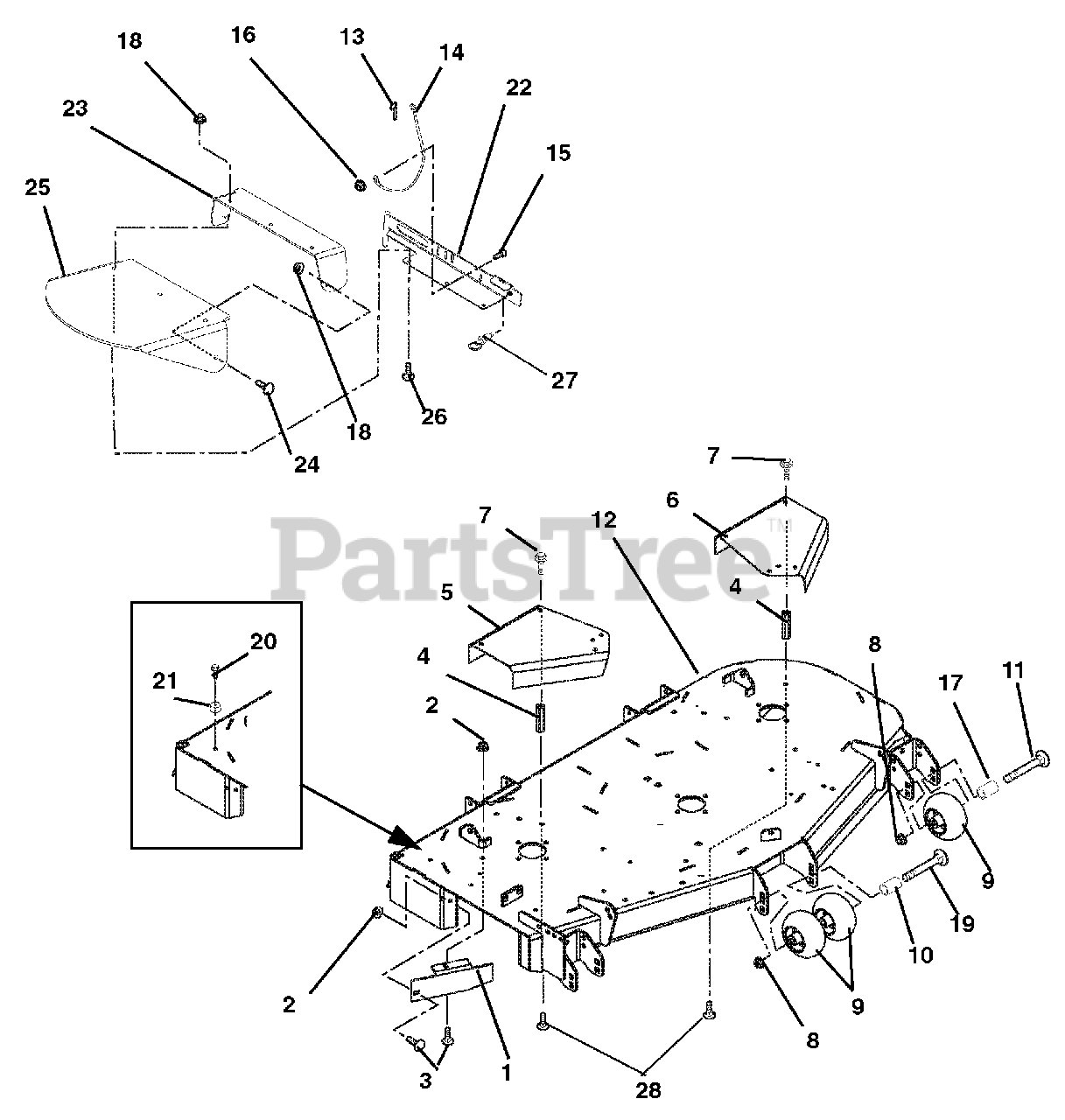

Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 00451653

44 in. & 48 in. Rear Discharge Baffle (991026, 027, 029, 032)

Note: (991026, 027, 029, 032)

$41.99

$

Usually ships in 4-12 days

0

Gravely 00440853

52 in. Rear Discharge Baffle (991028, 030, 031)

Note: (991028, 030, 031)

$37.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60 in. Discharge Baffle (991042)

Note: (991042)

$28.99

$

In Stock, only 1 left!

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

5

Gravely 00463153

44 in. Right Hand Spindle Guard (991026, 032)

Note: (991026, 032)

$70.99

$

In Stock, only 1 left!

0

Gravely 00439453

48 in. & 52 in. Right Hand Spindle Guard (991027, 028, 029, 030, 031)

Note: (991027, 028, 029, 030, 031)

$48.99

$

Usually ships in 4-12 days

0

Gravely 00370653

60 in. Right Hand Spindle Guard (991042)

Note: (991042)

$45.99

$

In Stock, only 2 left!

0

6

Gravely 00438953

44 in., 48 in., & 52 in. Left Hand Spindle Guard

$

$

Not available

Gravely 00371453

60 in. Left Hand Spindle Guard (991042)

Note: (991042)

$56.99

$

In Stock, only 1 left!

0

7

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00473600

Anti-Scalp Wheel
(Superseded to 03905900)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

Spacer

$21.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 00373153

44 in. Mower Deck (991026, 032)
(Superseded to 59102600)

Note: (991026, 032)

$950.99

$

Usually ships in 4-12 days

0

Gravely 00374853

48 in. Mower Deck (991027, 029)
(Superseded to 59108500)

Note: (991027, 029)

$1099.99

$

Usually ships in 4-12 days

0

Gravely 00370953

52 in. Mower Deck (991028, 030, 031)

Note: (991028, 030, 031)

$1086.99

$

Usually ships in 4-12 days

0

Gravely 00354453

60 in. Mower Deck, Side Discharge (991042)

Note: (991042)

$

$

Not available

13

Gravely 01593500

Pin, Spring Ball .375 OD x 1.50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06900037

Cable, 5-in.

$

$

Not available

15

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

20

Gravely 07414400

Screw, Tapping .31-18 x .75 Hex Washer Head Thread
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

21

Gravely 07500009

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 00472553

52 in. & 60 in. Discharge Chute Mounting Weldment (991028, 030, 031, 042)
(Superseded to 04727953)

Note: (991028, 030, 031, 042)

$129.99

$

In Stock, only 2 left!

0

Gravely 00472453

44 in. & 48 in. Discharge Chute Mounting Weldment (991026, 027, 029, 032)
(Superseded to 04757453)

Note: (991026, 027, 029, 032)

$112.99

$

Usually ships in 4-12 days

0

23

Gravely 00472353

Rubber Discharge Chute Support

$110.99

$

Usually ships in 4-12 days

0

24

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

25

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

26

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 07000037

Pin, Pull

$10.99

$

In Stock, only 1 left!

0

28

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75 Loctite
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
