991026 (PM 144M XDZ) - Gravely Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Hydro_Gear_Pump_00438600 Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

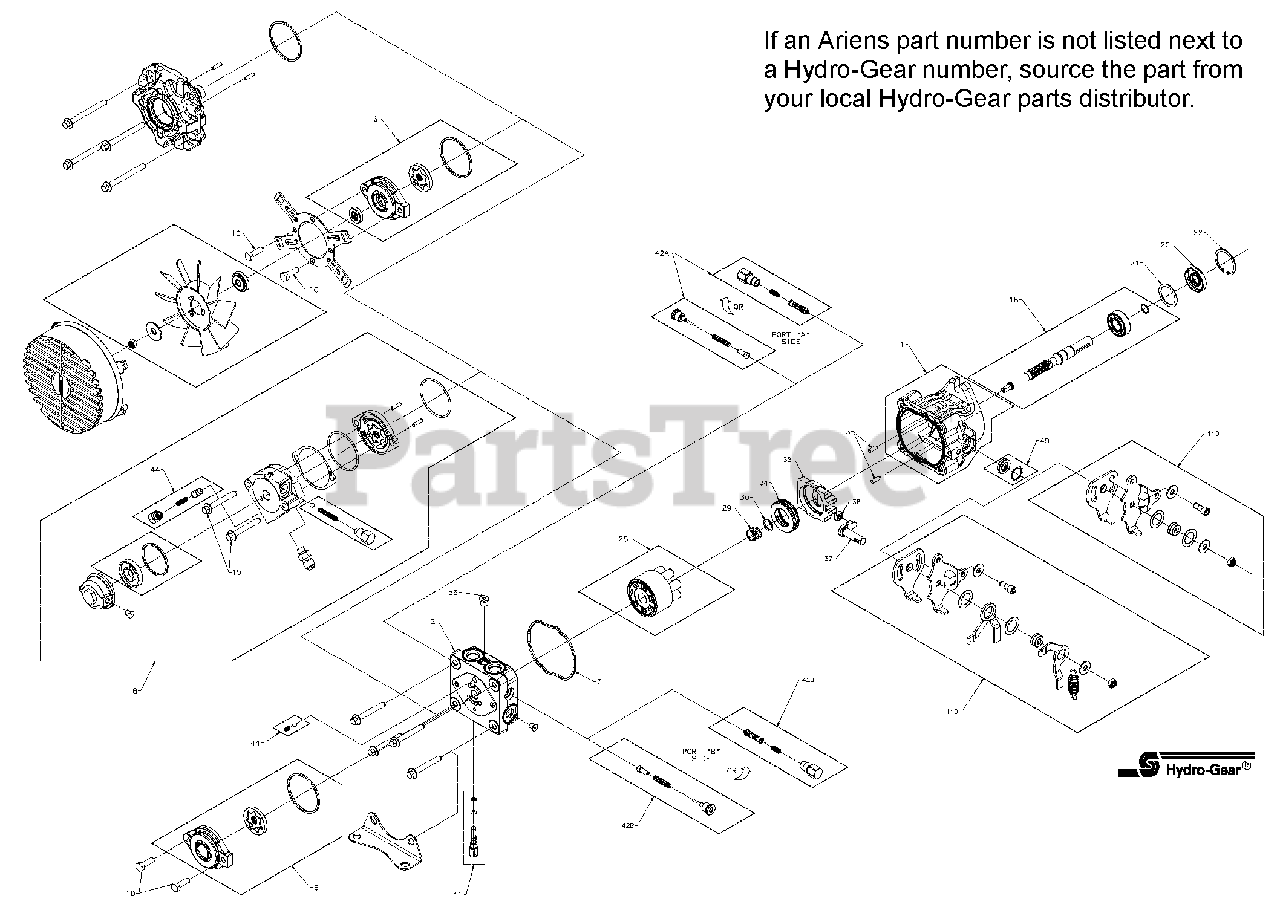

Hydro_Gear_Pump_00438600 Parts Diagram

  • Title

1

Gravely 21543929

Kit, Housing

Note: HydroGear p/n:70797

$

$

Not available

2

Gravely 21543873

End Cap

Note: HydroGear p/n:52038

$

$

Not available

3

Gravely 21543750

Pin, .219 x 1

Note: HydroGear p/n:50641

$

$

Not available

5

Gravely 21543824

O-Ring, Housing

Note: HydroGear p/n:51232

$

$

Not available

6

Kit, Charge Pump

Kit, Charge Pump

Note: HydroGear p/n:71246

$

$

Not available

10

Gravely 21543994

HHCS 5/16-18 x 1

Note: HydroGear p/n:9007200-3116

$

$

Not available

15

Gravely 21543954

Kit, Bypass Valve

Note: HydroGear p/n:71248

$

$

Not available

18

Gravely 21543903

Kit, Pump Shaft 15mm Key

Note: HydroGear p/n:70522

$135.99

$

Usually ships in 4-12 days

0

20

Gravely 21543816

Seal, Lip 17 x 40 x 7

Note: HydroGear p/n:51161

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 21543773

Washer 1.23 x 1.56 X .04

Note: HydroGear p/n:50951

$5.99

$

In Stock, only 2 left!

0

22

Gravely 21543741

Ring, Ret 1.56 Int

Note: HydroGear p/n:50329

$6.99

$

Usually ships in 4-12 days

0

25

Cylinder Block Kit

Cylinder Block Kit

Note: HydroGear p/n:71170

$

$

Not available

29

Gravely 08621500

Spring, Block

Note: HydroGear p/n:2003014

$1.99

$

In Stock, Qty 6

0

30

Gravely 08609400

Washer, Thrust .59 x .78 x .04

Note: HydroGear p/n:2003017

$1.99

$

In Stock, only 1 left!

0

32

Gravely 08609000

Swashplate 10cc

Note: HydroGear p/n:2003087

$

$

Not available

34

Gravely 08609100

Bearing, Thrust Ball 30 x 52 x 13

Note: HydroGear p/n:50551

$17.99

$

Usually ships in 4-12 days

0

37

Gravely 08610800

Arm, Trunnion

Note: HydroGear p/n:50807

$57.99

$

Usually ships in 4-12 days

0

38

Gravely 08610700

Guide, Slot

Note: HydroGear p/n:2000015

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve 200 Bar

Note: HydroGear p/n:70743

$

$

Not available

44

Gravely 21543956

Kit, Charge Relief

Note: HydroGear p/n:71361

$

$

Not available

49

Gravely 58803300

Kit, BDP-10l Seal

Note: HydroGear p/n:2513043

$9.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

Plug 7/16-20 (Metal)

Note: HydroGear p/n:9005110-4400

$

$

Not available

110

Gravely 21543933

Return Kit

Note: HydroGear p/n:70846

$

$

Not available

NS

Gravely 59203600

Kit, Overhaul Seal

Note: HydroGear p/n:70525

$77.99

$

Usually ships in 4-12 days

0
