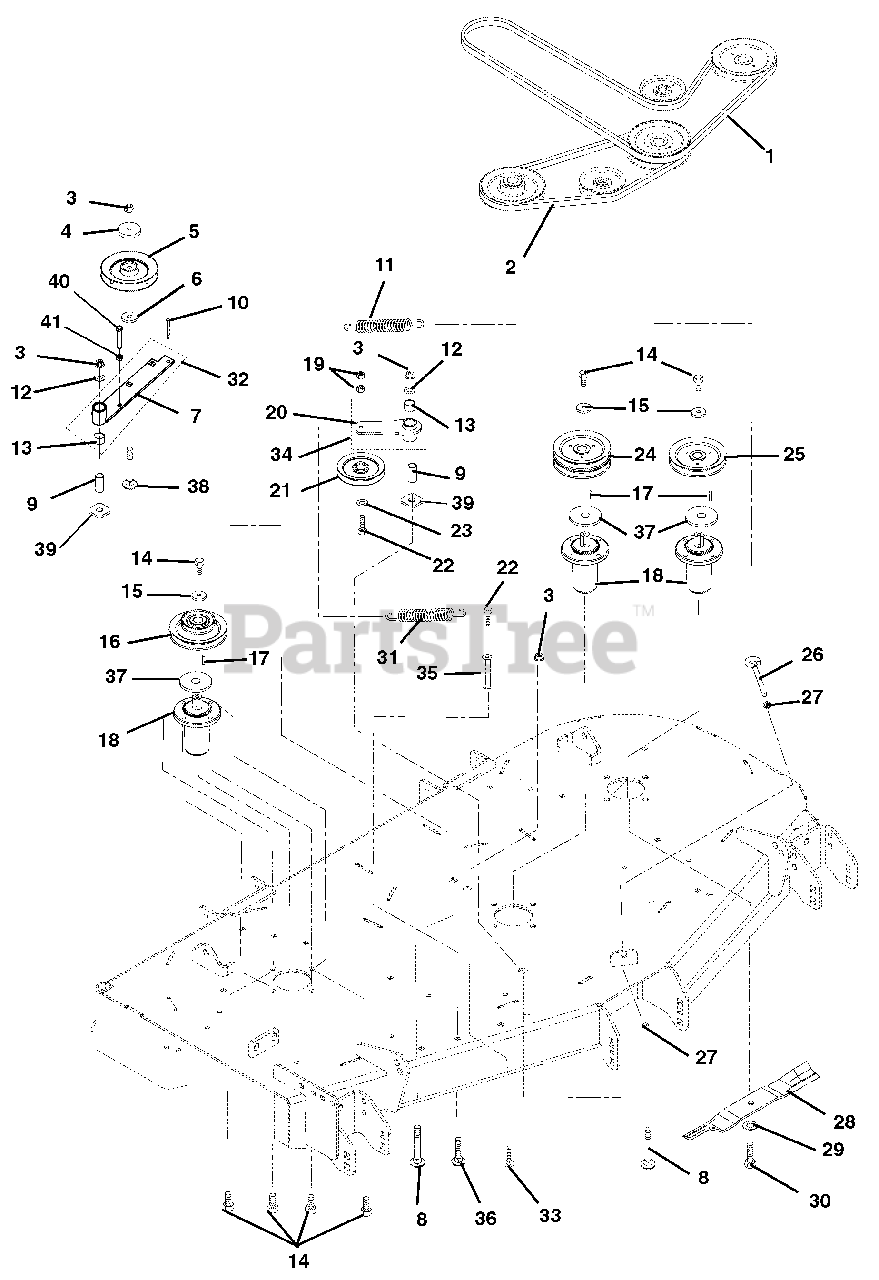

Gravely 991026 (PM 144M XDZ) - Gravely Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Belts, Spindles, Idlers And Mower Blades Parts Lookup with Diagrams

1

Gravely 07200024

Belt, 118.00" Long, PTO Drive Hex (991026, 032)

Note: (991026, 032)

$136.99

$

In Stock, only 3 left!

Gravely 07200025

Belt, 114.50" Long, PTO Drive Hex (991027, 029)

Note: (991027, 029)

$113.99

$

In Stock, only 1 left!

Gravely 07200026

Belt, 120.50" Long, PTO Drive Hex (991028, 030, 031)

Note: (991028, 030, 031)

$133.99

$

In Stock, only 4 left!

Gravely 07200028

Belt, 130.00" Long, PTO Drive Hex (991042)

Note: (991042)

$133.99

$

Usually ships in 4-12 days

2

Gravely 07200035

V-Belt, 51.18" Long Cog B-Section (991026, 027, 029, 032)

Note: (991026, 027, 029, 032)

$54.99

$

Usually ships in 4-12 days

Gravely 07200036

V-Belt, 56.00" Long Cog B-Section (991028, 030, 031)

Note: (991028, 030, 031)

$62.99

$

In Stock, Qty 15

Gravely 07200038

V-Belt, 63.00" Long Cog B-Section (991042)

Note: (991042)

$67.99

$

In Stock, Qty 20+

3

Gravely 06500010

Nut, .50-13 Nyloc Flange

(Superseded to 06500810) 

$1.49

$

In Stock, Qty 20+

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

5

Gravely 07300429

Pulley, V 6.0 x 5.00 ID Single Bearing (Serial Numbers 6500 and up)

(Superseded to 07300527) 

Note: (Serial Numbers 6500 and up)

$53.99

$

In Stock, Qty 20+

Gravely 07328000

Pulley, V 6.0 x .500 ID DBL. Bearing (Serial Numbers 000101 006499)

Note: (Serial Numbers 000101 006499)

$108.99

$

In Stock, only 2 left!

6

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

7

Gravely 03774251

Weldment, Idler Arm

$68.99

$

In Stock, only 1 left!

8

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50

(Superseded to 06200340) 

$5.99

$

In Stock, only 4 left!

9

Gravely 01581700

Bushing, Spacer .502 x .997 x 2.03 (991026 serial no. 7690 & up; 991027 serial no. 7790 & up; 991028 serial no. 8107 &

Note: (991026 serial no. 7690 & up; 991027 serial no. 7790 & up; 991028 serial no. 8107 & up)

$5.99

$

In Stock, Qty 20+

Gravely 07000031

Bearing, Pedestal (also replaces item 39) (991026 serial no. 7689 & under; 991027 serial no. 7789 & under; 991028 seria

Note: (also replaces item 39) (991026 serial no. 7689 & under; 991027 serial no. 7789 & under; 991028 serial no. 8106 & under; 991029, 991030, 991031, 991042 101 & up; 991032 500 & up)

$80.99

$

In Stock, only 1 left!

10

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 2 left!

11

Gravely 08300030

Spring, Extension (Deck Idler)

(Superseded to 08300505) 

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

12

Gravely 06430200

Washer, Flat Steel .531x 1.250 x.100

(Superseded to 06401128) 

$0.99

$

In Stock, Qty 20+

13

Gravely 05500123

Bushing, 1.00 x 1.25 x 1.936

(Superseded to 05501234) 

$10.99

$

In Stock, Qty 20+

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00

(Superseded to 05901721) 

$1.99

$

In Stock, Qty 20+

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245

(Superseded to 06401110) 

$3.99

$

In Stock, Qty 20+

16

Gravely 07300029

Sheave, Double, 1" I.D. x 5.44" O.D. x 3.50" O.D. (991026, 027, 029, 032)

(Superseded to 07329467) 

Note: (991026, 027, 029, 032)

$100.99

$

In Stock, only 1 left!

Gravely 07300025

Sheave, Double, 1" I.D. x 6.00" O.D. and 3.50" O.D. (991028, 030, 031)

(Superseded to 07332267) 

Note: (991028, 030, 031)

$79.99

$

In Stock, only 1 left!

Gravely 07300026

Seave, Double 1" I.D. x 6.75 x 4.35 O.D. (991042)

(Superseded to 07329167) 

Note: (991042)

$84.99

$

In Stock, Qty 7

17

Gravely 06611200

Key, Square .25 x .25 x 1 RC 40-50

$2.99

$

In Stock, Qty 20+

18

Gravely 69219700

Spindle Assembly

(Superseded to 59225700) 

$239.99

$

In Stock, Qty 20+

19

Gravely 06529600

Nut, Locking-Center .38-16

(Superseded to 06500825) 

$1.49

$

In Stock, Qty 20+

20

Gravely 03774100

Weldment, Idler Arm

(Superseded to 03774151) 

$51.99

$

In Stock, only 1 left!

21

Gravely 07300015

Sheave, .38" ID x 5" OD

(Superseded to 07351800) 

$30.99

$

In Stock, Qty 20+

22

Gravely 05962900

Bolt, Hex .38-16 x 2.25

(Superseded to 05901640) 

$3.99

$

In Stock, Qty 20+

23

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065

(Superseded to 06401013) 

$0.99

$

In Stock, Qty 20+

24

Gravely 07300031

Sheave, Double 1" I.D. x 5.44" O.D. (991026, 027, 029, 032)

(Superseded to 07329267) 

Note: (991026, 027, 029, 032)

$80.99

$

In Stock, only 1 left!

Gravely 07300020

Sheave, Double 1" I.D. x 6.00" O.D. (991028, 030, 031)

(Superseded to 07332367) 

Note: (991028, 030, 031)

$77.99

$

In Stock, Qty 16

Gravely 07300021

Sheave, Double 1" I.D. x 6.75" O.D. (991042)

(Superseded to 59211500) 

Note: (991042)

$91.99

$

In Stock, Qty 20+

25

Gravely 07300030

Sheave, Single 1" I.D. x 5.44" O.D. (991026, 027, 029, 032)

(Superseded to 07329367) 

Note: (991026, 027, 029, 032)

$68.99

$

In Stock, Qty 18

Gravely 07300019

Sheave, Single 1" I.D. x 6.00" O.D. (991028, 030, 031)

(Superseded to 59211700) 

Note: (991028, 030, 031)

$82.99

$

In Stock, only 1 left!

Gravely 07300022

Sheave, Single 1" I.D. x 6.75" O.D. (991042)

(Superseded to 59211600) 

Note: (991042)

$82.99

$

In Stock, Qty 13

26

Gravely 07000030

Bolt, .38-16 x 4.00 .62 Diameter Eye

(Superseded to 07001604) 

$6.99

$

Usually ships in 4-12 days

27

Gravely 06535900

Nut, Hex, Jam .375-16

(Superseded to 06500910) 

$0.99

$

In Stock, Qty 20+

28

Gravely 00450200

Blade, Mower, 44 in. & 48 in. Decks (991026, 027, 029, 032)

Note: (991026, 027, 029, 032)

$29.99

$

In Stock, Qty 20+

Gravely 00450300

Blade, Mower, 52 in. Decks (991028, 030, 031)

Note: (991028, 030, 031)

$29.99

$

In Stock, Qty 20+

Gravely 09081200

Blade, Mower, 60 in. Decks (991042)

Note: (991042)

$29.99

$

In Stock, Qty 20+

29

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, Qty 20+

30

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8

(Superseded to 05901822) 

$3.49

$

In Stock, Qty 20+

31

Gravely 08336000

Spring, Extension

(Superseded to 08300728) 

$26.99

$

In Stock, Qty 20+

32

Gravely 03796300

Assembly, PTO Idler Pivot Arm (Includes item # 7 and item # 13)

(Superseded to 59218300) 

Note: (Includes item # 7 and item # 13)

$79.99

$

Usually ships in 4-12 days

Gravely 00449000

Assembly, PTO Idler Pivot Arm (Includes item # 7 and item # 13) (991026 serial no. 7689 & under; 991027 serial no. 7789 &

Note: (Includes item # 7 and item # 13) (991026 serial no. 7689 & under; 991027 serial no. 7789 & under; 991028 serial no. 8106 & under; 991029, 991030, 991031, 991042 101 & up; 991032 500 & up)

$85.99

$

Usually ships in 4-12 days

33

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

34

Gravely 03796400

Assembly, Idler Pivot Arm (Includes item # 13 and item # 20) (991026 serial no. 7690 & up; 991027 serial no. 7790 & up; 99

Note: (Includes item # 13 and item # 20) (991026 serial no. 7690 & up; 991027 serial no. 7790 & up; 991028 serial no. 8107 & up)

$62.99

$

Usually ships in 4-12 days

Gravely 00349100

Assembly, Idler Pivot Arm (Includes item # 13 and item # 20) (991026 serial no. 7689 & under; 991027 serial no. 7789 & und

Note: (Includes item # 13 and item # 20) (991026 serial no. 7689 & under; 991027 serial no. 7789 & under; 991028 serial no. 8106 & under; 991029, 991030, 991031, 991042 101 & up; 991032 500 & up)

$63.99

$

In Stock, only 2 left!
