991024 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Mechnical Deck Lift Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kohler

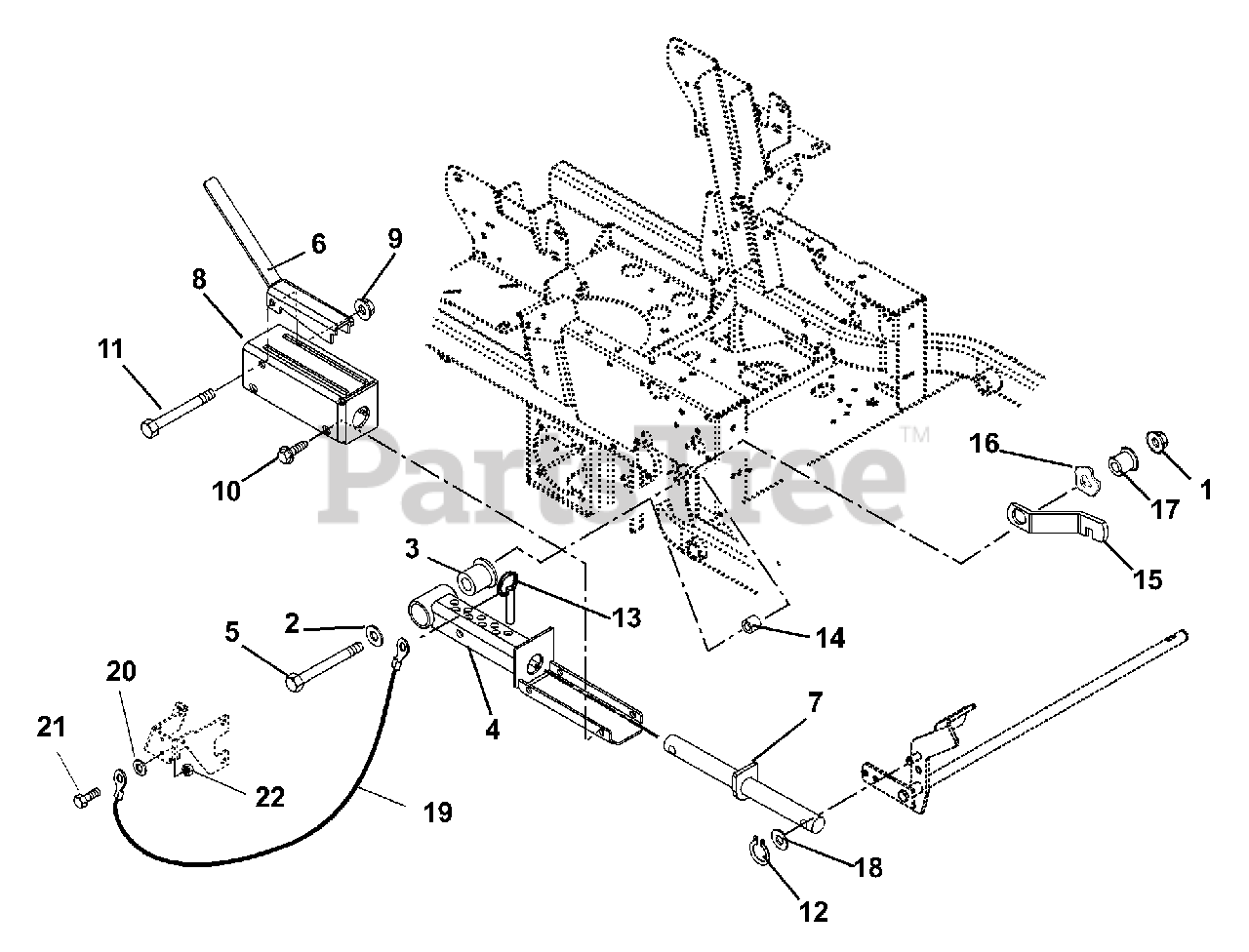

Mechnical Deck Lift Parts Diagram

  • Title
1

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06430200

Washer, Flat Steel .531 x 1.25 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

4

Gravely 09286251

Weldment, Mechanical Lift

$216.99

$

Usually ships in 4-12 days

0

5

Gravely 05962200

Bolt-Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 00586551

Lock-Up, Mechanical Lift

$

$

Not available

7

Gravely 09291500

Weldment, Mechanical Lift Shaft

$150.99

$

Usually ships in 4-12 days

0

8

Gravely 09299451

Weldment, Mechanical Lift Cover

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 05709200

Ring, Retaining External .625 x .05

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 09293600

Spacer .516 ID x 1.00 OD x .875

$4.99

$

Usually ships in 4-12 days

0

15

$

$

Not available

16

Gravely 09252000

Washer-Wave .076 x 1.120 x .080

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 05532100

Bushing-Flange .515 x .750 x .275 x 1.120

$

$

Not available

18

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 06927100

Cable, Hood

$14.99

$

In Stock, only 1 left!

0

20

Gravely 06439500

Washer, Flat Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0
