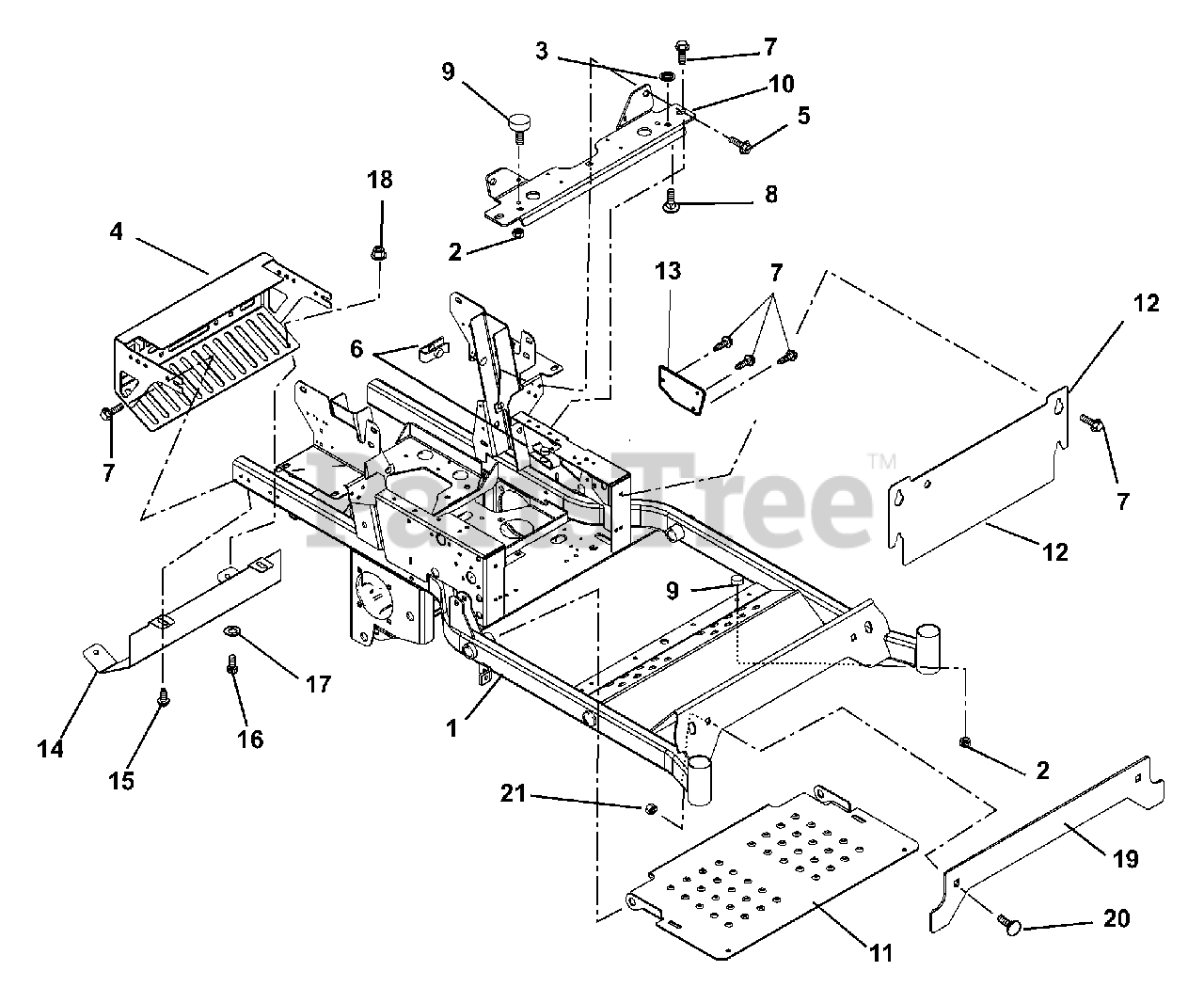

991024 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kohler

Frame Parts Diagram

  • Title

1

Gravely 00607251

Intermediate-Z Frame

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

4

Gravely 00606751

Bumper, IZ with Standard air cleaner

$

$

Not available

5

Gravely 07049900

Bolt, Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

7

Gravely 07412900

Screw, Tapping Hex Washer Head .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

10

Gravely 00433251

Seat Support

$

$

Not available

11

Gravely 00385600

Footrest Panel

$

$

Not available

12

Gravely 09297253

Access Panel

$55.99

$

Usually ships in 4-12 days

0

13

Gravely 09298551

Valve Cover

$

$

Not available

14

Gravely 00462451

Heat Shield

$

$

Not available

15

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head Thread Rolling YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 17

0

17

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00462053

Plate, Counterweight

$

$

Not available

20

Gravely 06224800

Bolt-Round Head Square Neck .50-13 x 1.75 Grade 5
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
