991024 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kohler

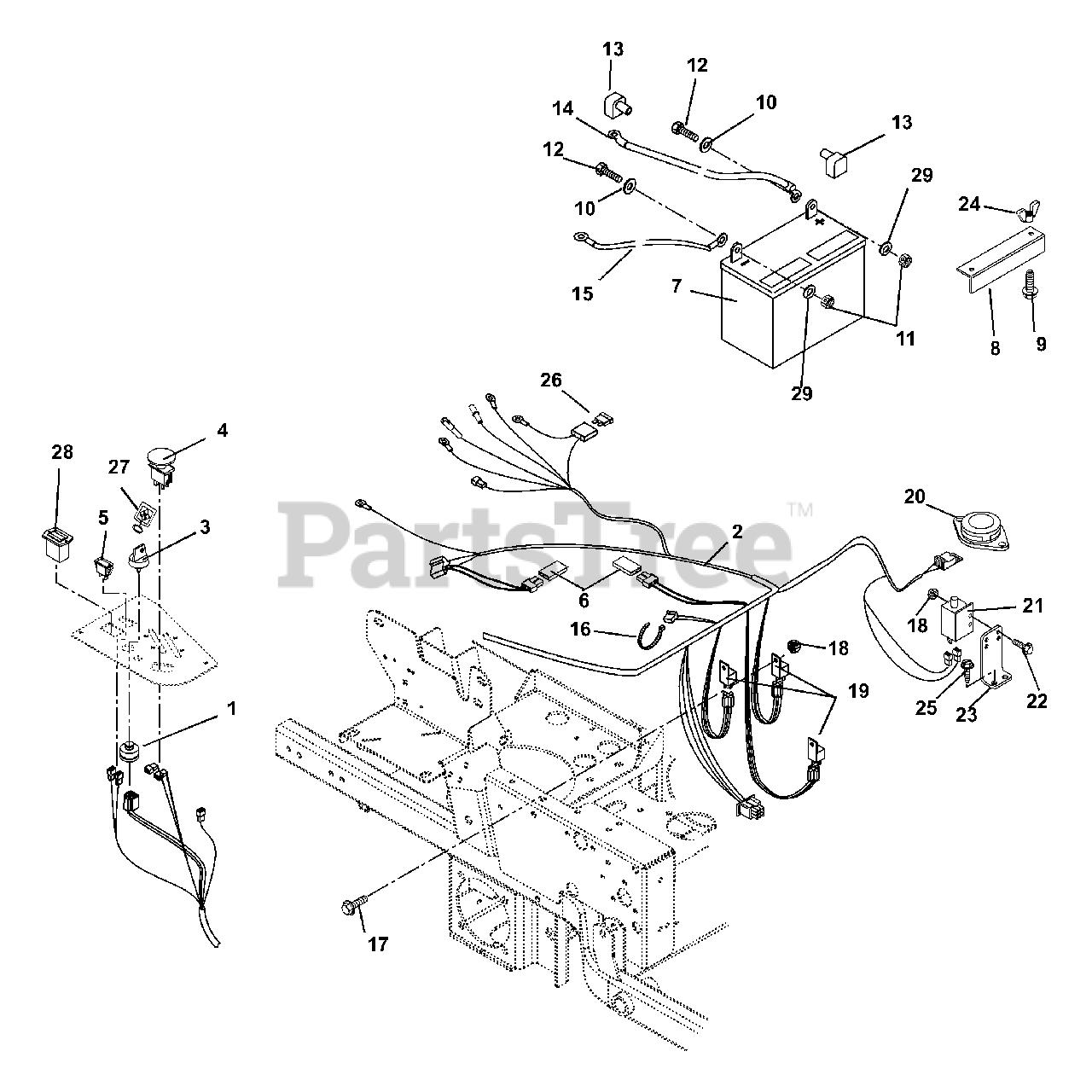

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Key Switch
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

2

Gravely 00449900

Harness, IZ/CZ
(Superseded to 03286600)

$170.99

$

In Stock, only 1 left!

0

3

Gravely 09287000

Key with Shield

$14.99

$

In Stock, Qty 20+

0

4

Gravely 01545600

Switch, Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

5

Gravely 09003300

Switch, Blank

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

7

Gravely 01554800

Battery

$

$

Not available

8

Gravely 015258

Hold Down
(Superseded to 03494051)

$11.99

$

In Stock, only 2 left!

0

9

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06437300

Washer, Flat Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 09295800

Cable, Positive, 26 inch
(Superseded to 03288400)

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 042130

Cable, Negative Battery
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

16

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

17

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00432100

Relay, Sealed with diode
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

20

Gravely 03654200

Seat Switch

$

$

Not available

21

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

22

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

23

Gravely 00269351

Mount, Brake Switch

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

25

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

27

Gravely 00457400

Key Chain

$

$

Not available

28

Gravely 00456600

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

29

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0
