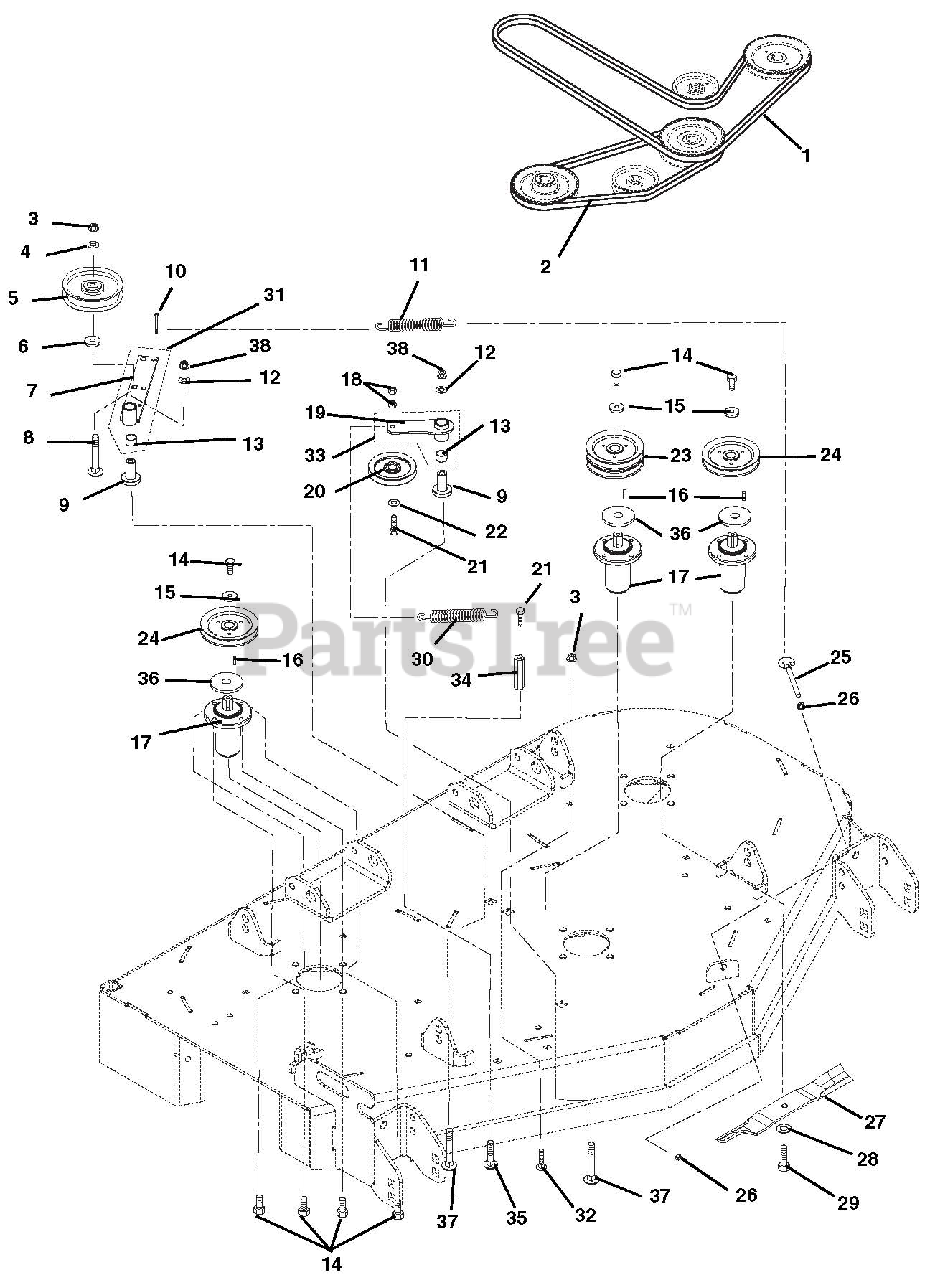

991023 (PM 44M) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000500 & Above) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200012

Belt, HB 119.75" Long, Wrapped

$125.99

$

Usually ships in 4-12 days

0

2

Gravely 07200035

V-Belt, 51.18" Long Cog B-Section

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06425500

Washer, Flat Steel .375x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 07300006

Idler, Flat, 3.8 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

6

Gravely 02506200

Spacer, .380 x .750 x .236

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 00867551

PTO Idler Pivot Arm

$

$

Not available

8

Gravely 06213400

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

10

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

11

Gravely 08300030

Spring, Extension (Deck Idler)
(Superseded to 08300505)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 06430200

Washer, Flat Steel .531x 1.250 x.100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06611200

Key, Square .25 x .25 x 1 RC 40-50

$2.99

$

In Stock, Qty 16

0

17

Gravely 69219700

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03774100

Weldment, Idler Arm
(Superseded to 03774151)

$51.99

$

In Stock, only 1 left!

0

20

Gravely 07300015

Sheave, .38" ID x 5" OD
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

21

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07300031

Sheave, Double 1" ID x 5.50" OD
(Superseded to 07329267)

$80.99

$

In Stock, only 1 left!

0

24

Gravely 07300030

Sheave, Single 1" ID x 5.50" OD
(Superseded to 07329367)

$68.99

$

In Stock, Qty 18

0

25

Gravely 07000030

Bolt, .38-16 x 4.00 .62 Diameter Eye
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 00450200

Blade, Mower, 44 in. & 48 in. Decks

$29.99

$

In Stock, Qty 20+

0

28

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, Qty 9

0

29

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Gravely 00867600

Assembly, PTO Idler Pivot Arm

Note: (Includes item # 7 and item # 13)

$

$

Not available

32

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

33

Gravely 00349100

Assembly, Idler Pivot Arm

Note: (Includes item # 13 and item # 19)

$63.99

$

In Stock, only 2 left!

0

34

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

35

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

37

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200340)

$5.99

$

In Stock, only 3 left!

0

38

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
