991023 (PM 44M) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 000499) Motors And Wheels Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

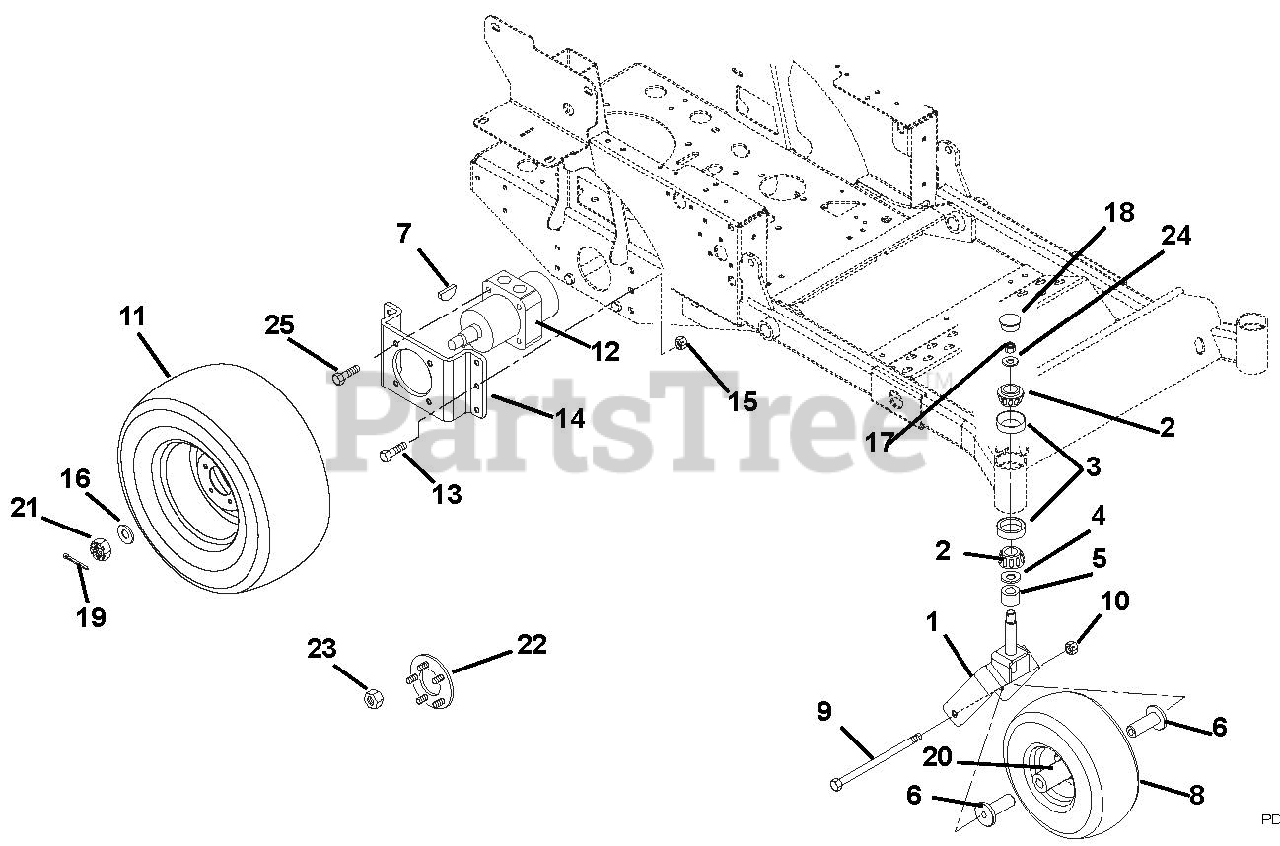

Motors And Wheels Parts Diagram

  • Title

1

Gravely 00490251

Weldment, Front Fork
(Superseded to 59208400)

$206.99

$

Usually ships in 4-12 days

0

2

Gravely 05406900

Bearing, Cone with Grease, 1.0 x .58

$18.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 4 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 7

0

6

Gravely 00160700

Spacer, Wheel

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 06608700

Key, Woodruff .31 x 1.00

Note: (Included with Item 12)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07160100

Wheel/Tire Assembly 5.25 x 13.00
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

9

Gravely 05978200

Bolt, Hex .50-13 x 7.50 Grade 5
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

10

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07160200

Wheel, Tire Assembly 20 x 10-10
(Superseded to 07100216)

Note: (022)

$

$

Not available

11

Gravely 07160100

Wheel, Tire Assembly 5.25 x 13
(Superseded to 07101111)

Note: (023)

$119.99

$

In Stock, Qty 20+

0

11

Gravely 07100010

Tire, 20 x 10.00-NHS Turf Saver

Note: (023)

$

$

Not available

11

Gravely 07100023

Tire, 20 x 10.00 Multi Trac C-S
(Superseded to 07100215)

Note: (023)

$125.99

$

Usually ships in 4-12 days

0

11

Gravely 07100025

Wheel, Tire 20 x 10-10
(Superseded to 07100214)

Note: (023)

$193.99

$

Usually ships in 4-12 days

0

11

Gravely 07100008

Tire, 21 x 7.00 Turf Saver

Note: (022)

$205.99

$

Usually ships in 4-12 days

0

12

Gravely 04915500

Motor, Hydraulic Wheel
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

13

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09296600

Bracket, Wheel Motor

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 06536900

Nut, Center Lock Jam .75-16

$5.99

$

In Stock, only 3 left!

0

18

Gravely 00456800

Cap, Dust

$18.99

$

In Stock, Qty 9

0

19

Gravely 06713400

Pin-Cotter .09 x 1.25 Extended Prong Square Cut

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 05435700

Bearing, 25MM I.D. x 52MM OD x 15MM

Note: (Included with item 8)

$22.99

$

In Stock, Qty 19

0

21

Gravely 06528300

Nut, Hex .75-20

$

$

Not available

22

Gravely 07100013

Assembly, Service Hub with Studs
(Superseded to 07100028)

Note: (022)

$83.99

$

In Stock, only 1 left!

0

22

Gravely 07100028

Assembly, Service Hub with .50 Studs

Note: (023)

$83.99

$

In Stock, only 1 left!

0

23

Gravely 06517600

Wheel Nut .50-20
(Superseded to 06500926)

Note: (023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06511400

Wheel Nut .437-20

Note: (022)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06436900

Washer, Flat, Steel .880 x 1.250 x .062

$2.49

$

In Stock, Qty 11

0

25

Gravely 05900013

Bolt, Hex .38-16 x 1.00 Grade 8 Epoxy 30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0
