991013 (PM 160 XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

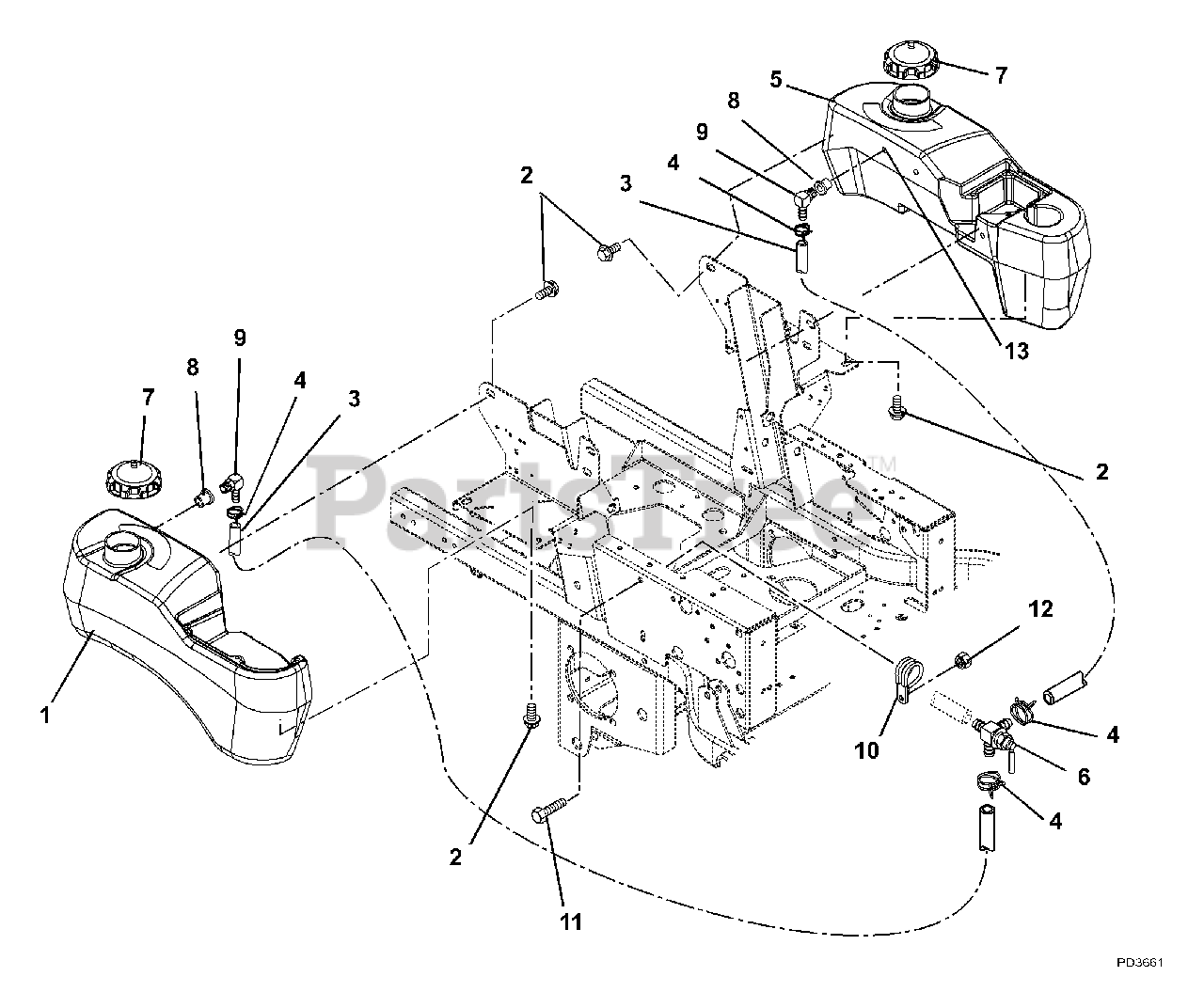

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00445900

Tank, Gas - Right Hand

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, Hex .31-18 x .75 Grade 5

$3.99

$

In Stock, Qty 20+

0

3

Gravely 021134

Gas Line, Bulk .25" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 10

0

5

Gravely 00191100

Tank, Left Hand Fuel

Note: (EYE-Q) 100 Series

$276.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

7

Gravely 00273700

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

8

Gravely 00387300

Grommet, Orange

Note: (Will not replace black)

$9.49

$

In Stock, Qty 20+

0

9

Gravely 21539200

Fuel Tank Fitting

$14.99

$

In Stock, only 2 left!

0

10

Gravely 06908200

Clamp, Cushioned Steel

Note: (991018, 020)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

Note: (991018, 020)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

Note: (991018, 020)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 59207200

20" Fuel Line Kit (inside of tank)
(Superseded to 04320900)

Note: (inside of tank)

$39.99

$

In Stock, Qty 20+

0
