991013 - Homelite 42" Grade Blade Grader Blade Group - 42" (3848I01) Parts Diagram

42" Grade Blade

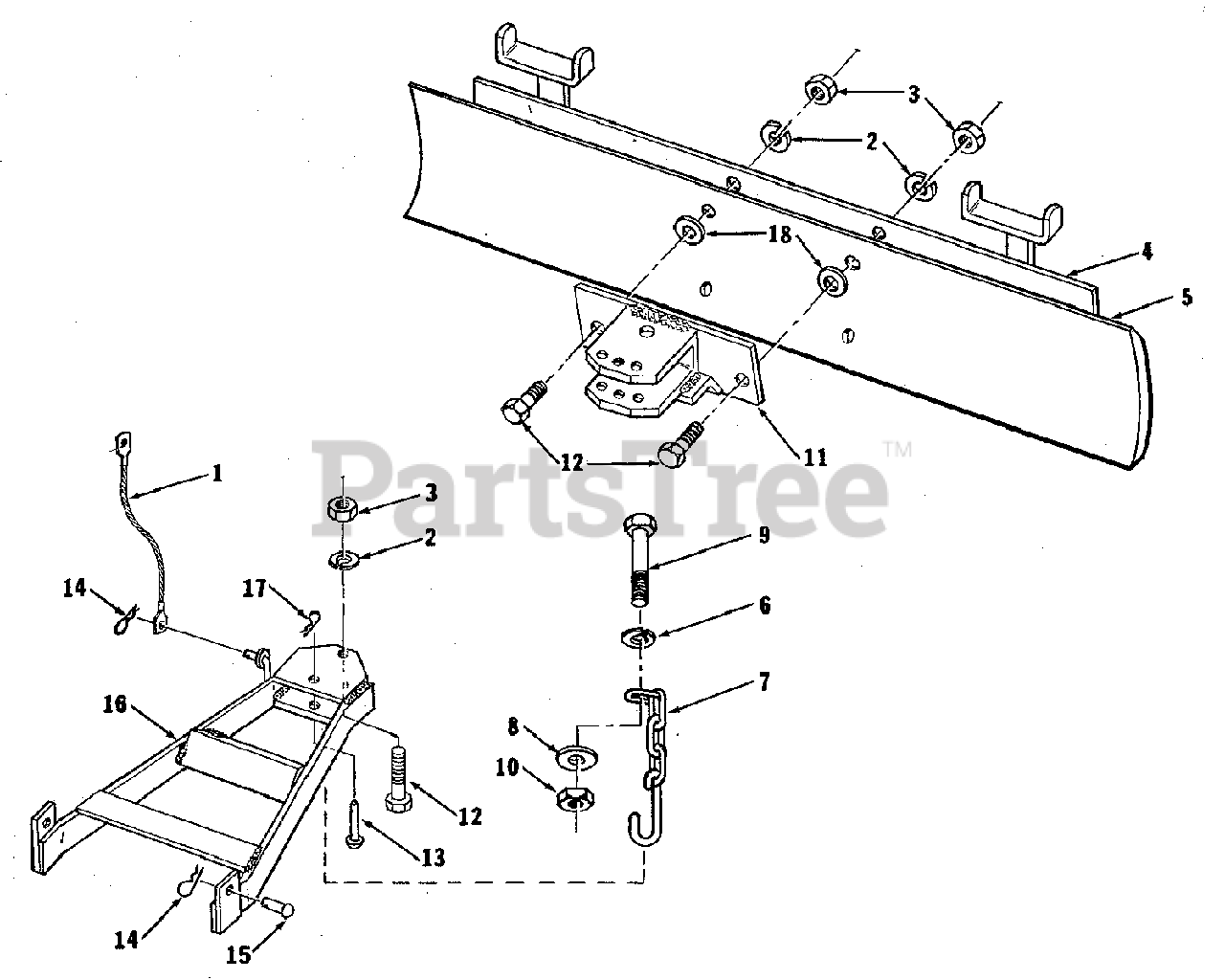

Grader Blade Group - 42" (3848I01) Parts Diagram

  • Title
1

Simplicity LM-16064-73

CABLE ASSEMBLY, Lift

$

$

Not available

2

Simplicity LM-09173-73

WASHER, Lock, 5/8

$

$

Not available

3

Simplicity LM-09157-26

NUT, Hex, 5/8-11

$

$

Not available

4

Simplicity LM-01727-38

BRACKET ASSEMBLY

$

$

Not available

5

Simplicity LM-01070-56

BLADE, Grader, 42"

$

$

Not available

6

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

7

Simplicity LM-01779-73

HOOK, Transport Lift

$

$

Not available

8

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

9

Simplicity LM-09174-00

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

10

Simplicity LM-09234-28

NUT, Hex, 3/8-16

$

$

Not available

11

Simplicity LM-01070-58

HITCH ASSEMBLY

$

$

Not available

12

Simplicity LM-09221-18

SCREW, Hex Cap, 5/8-11 x 3

$

$

Not available

13

$

$

Not available

14

$

$

Not available

$

$

Not available

16

Simplicity LM-01070-62

DRAW BAR ASSEMBLY

$

$

Not available

17

$

$

Not available

$

$

Not available
