991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

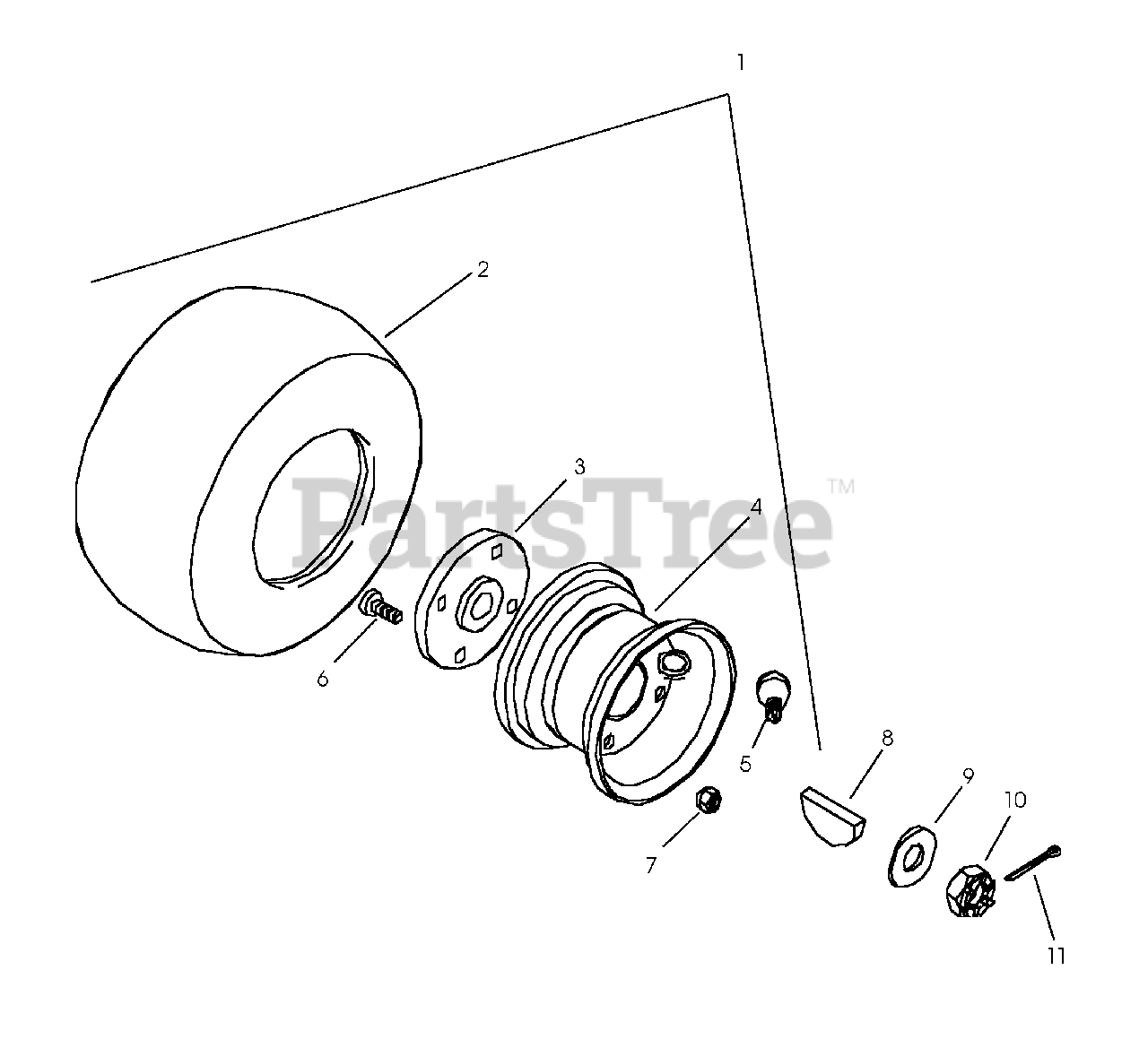

WHEELS Parts Diagram

  • Title
1

Gravely 053181

Tire/Wheel Assembly
(Superseded to 07135500)

$

$

Not available

2

Gravely 048882

Tire 18 x 8.50-8
(Superseded to 07130800)

$

$

Not available

3

Gravely 052056

Assembly-Hub
(Superseded to 07131600)

$113.99

$

Usually ships in 4-12 days

0

4

Gravely 052055

Assembly-Rim
(Superseded to 07107700)

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

6

Gravely 052057

Bolt .50-20 x 1.25
(Superseded to 00510800)

$

$

Not available

7

Gravely 06525400

Nut-Hex .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06600300

Key-Woodruff .188 x .75 x .313

$1.49

$

In Stock, Qty 11

0

9

Gravely 06409500

Washer-Flat-Steel .781 x 1.50 x .060

$

$

Not available

10

Gravely 052053

Nut-Hex 3/4-28
(Superseded to 08846900)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 06707000

Pin-Cotter .09 x 1.00
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0
