991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) STEERING & DIRECTION CONTROLS Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

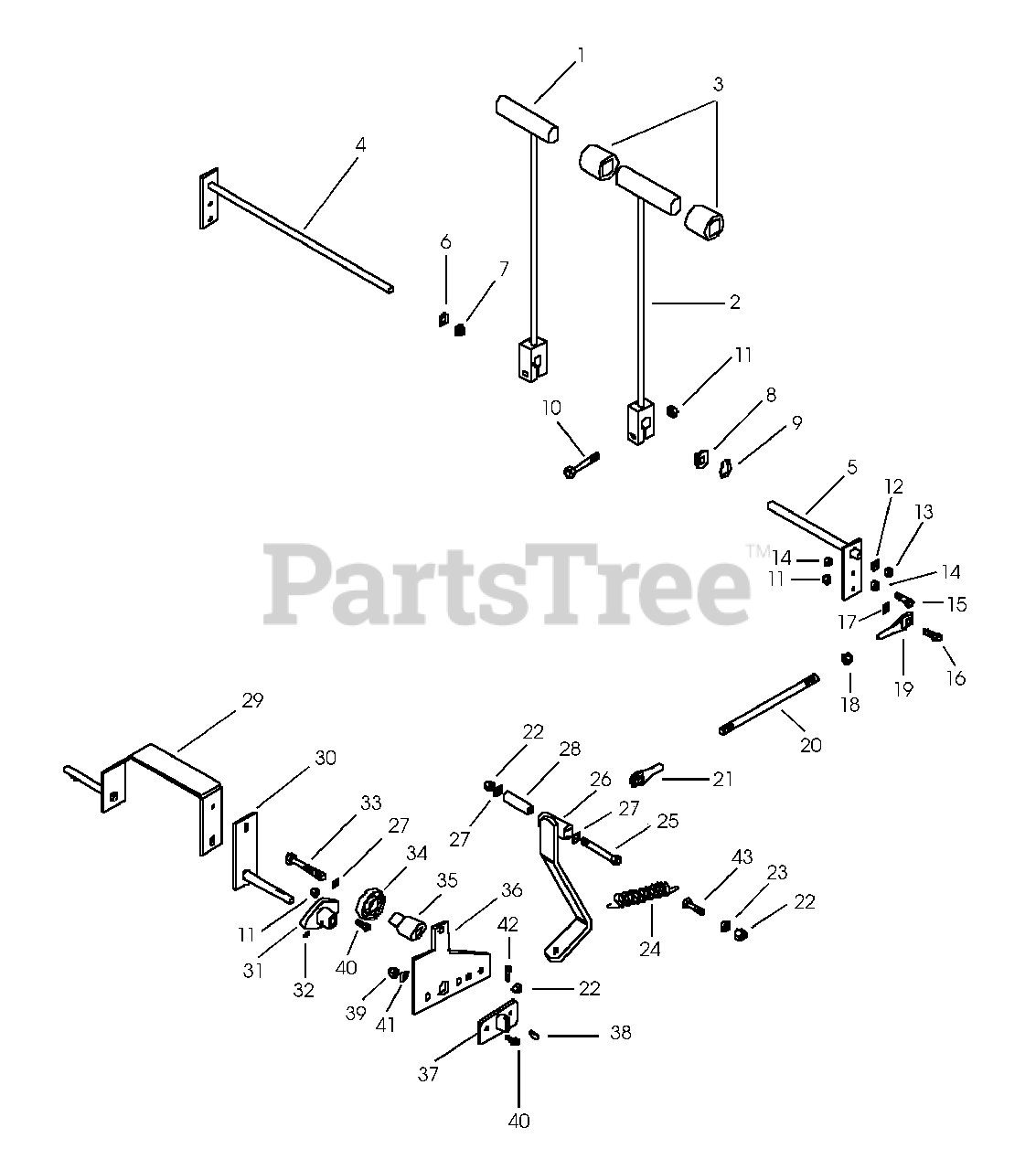

STEERING & DIRECTION CONTROLS Parts Diagram

  • Title

1

Gravely 09102700

Weldment-Steering Lever Left Hand

$

$

Not available

2

Gravely 09102600

Weldment-Steering Lever Right Hand

$

$

Not available

3

Gravely 09108500

Grip-T-Bar

$

$

Not available

4

Gravely 09102500

Weldment-Steering Left Hand

$

$

Not available

5

Gravely 09102400

Weldment-Steering Tube Right Hand

$30.99

$

Usually ships in 4-12 days

0

6

Gravely 053329

Ring-Retaining-External .500 x .460
(Superseded to 05717100)

$2.49

$

In Stock, Qty 8

0

7

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

11

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

15

Gravely 274550

Screw-Set .32-18 x 1.50
(Superseded to 06003400)

$

$

Not available

16

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

17

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06537400

Nut-Jam Left-Hand .375-24
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 045002

Rod End-5/16" Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

20

Gravely 09105300

Rod-Steering Adjuster

$

$

Not available

21

Gravely 053366

Rod End-5/16-24 Left Hand Female
(Superseded to 09107800)

$

$

Not available

22

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 051233

Apring-Tension .063 x .62 x 2.75
(Superseded to 08345500)

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

26

Gravely 09107400

Weldment-Neutral Detent

$

$

Not available

27

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 049022

Shaft-Jack
(Superseded to 08831500)

$5.99

$

In Stock, only 2 left!

0

29

Gravely 052682

Weldment-Pump Control Right Hand
(Superseded to 08848400)

$

$

Not available

30

Gravely 052683

Weldment-Pump Control Left Hand
(Superseded to 08848500)

$109.99

$

Usually ships in 4-12 days

0

31

Gravely 01522000

Bushing-Flanged

$34.99

$

In Stock, only 1 left!

0

32

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

33

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

34

Gravely 05407900

Bearing-Ball .500 x 1.375 x .437
(Superseded to 05408000)

$5.99

$

In Stock, Qty 20+

0

35

Gravely 09107200

Hub-Bearing Mount

$

$

Not available

36

Gravely 09103100

Arm-Speed Control
(Superseded to 01539700)

$26.99

$

Usually ships in 4-12 days

0

37

Gravely 01525500

Arm-Speed Control

$20.99

$

Usually ships in 4-12 days

0

38

Gravely 124547

Key-Woodruff .13 x .75
(Superseded to 06608600)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0
