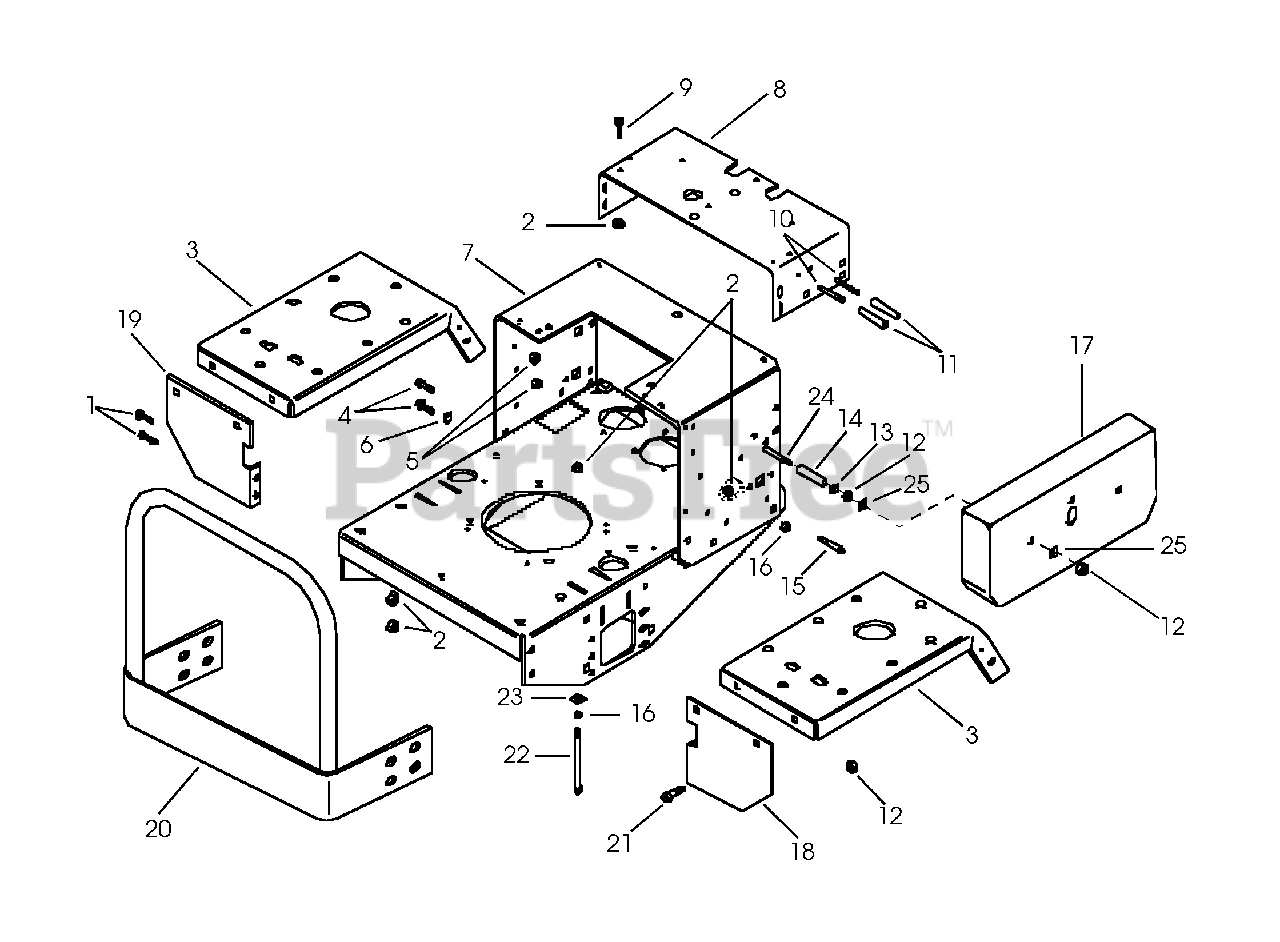

991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

FRAME Parts Diagram

  • Title
1

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

$

$

Not available

4

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09103000

Weldment-Frame Z

$

$

Not available

8

Gravely 09113200

Support Control Weldment

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05963200

Bolt-Hex .31-18 x 4.00 Grade 5
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 09108300

Spacer-Split-Rolled

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09108400

Spacer-Split-Rolled

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05957800

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 09108200

Guard-Linkage

$

$

Not available

18

Gravely 09107000

Support-Fender Right Hand

$13.99

$

Usually ships in 4-12 days

0

19

Gravely 09107100

Support-Fender Left Hand

$

$

Not available

20

Gravely 09113500

Weldment-Rear Guard

$

$

Not available

21

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05965400

Bolt-Hex .38-16 x 4.00 Grade 5

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05965000

Bolt-Hex .31-18 x 3.75
(Superseded to 05901936)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0
