991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER MANUAL LIFT SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

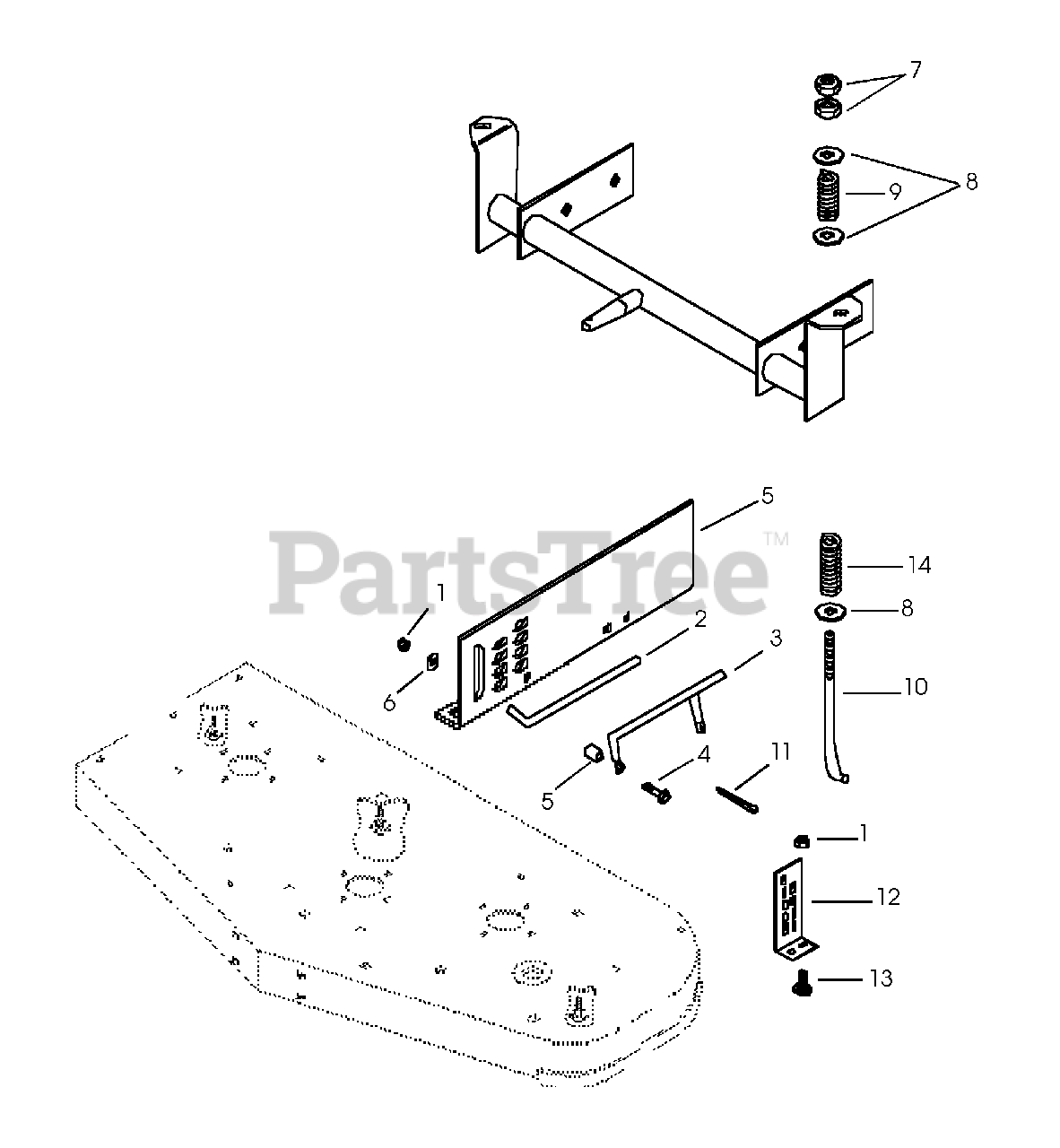

50" MOWER MANUAL LIFT SYSTEM Parts Diagram

  • Title

1

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 08875900

Pin-Mower Locking

$18.99

$

Usually ships in 4-12 days

0

3

088780

Handle

$

$

Not available

4

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

5

Gravely 08553700

Bushing

$5.99

$

In Stock, only 1 left!

0

6

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 08327000

Spring-Compression .125 x .78 x 1.00

$15.99

$

In Stock, only 2 left!

0

10

Gravely 08599000

Rod-Height Adjustment

$93.99

$

Usually ships in 4-12 days

0

11

Gravely 07014500

Pin-Klik 1.000 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 09105600

Bracket Rear Adjustment-Right Hand

$

$

Not available

12

Gravely 09105700

Bracket Rear Adjustment-Left Hand

$

$

Not available

13

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

14

Gravely 08316500

Spring-Compression .095 x .75 x 6.25

$9.49

$

Usually ships in 4-12 days

0
