991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER FRAME 1 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

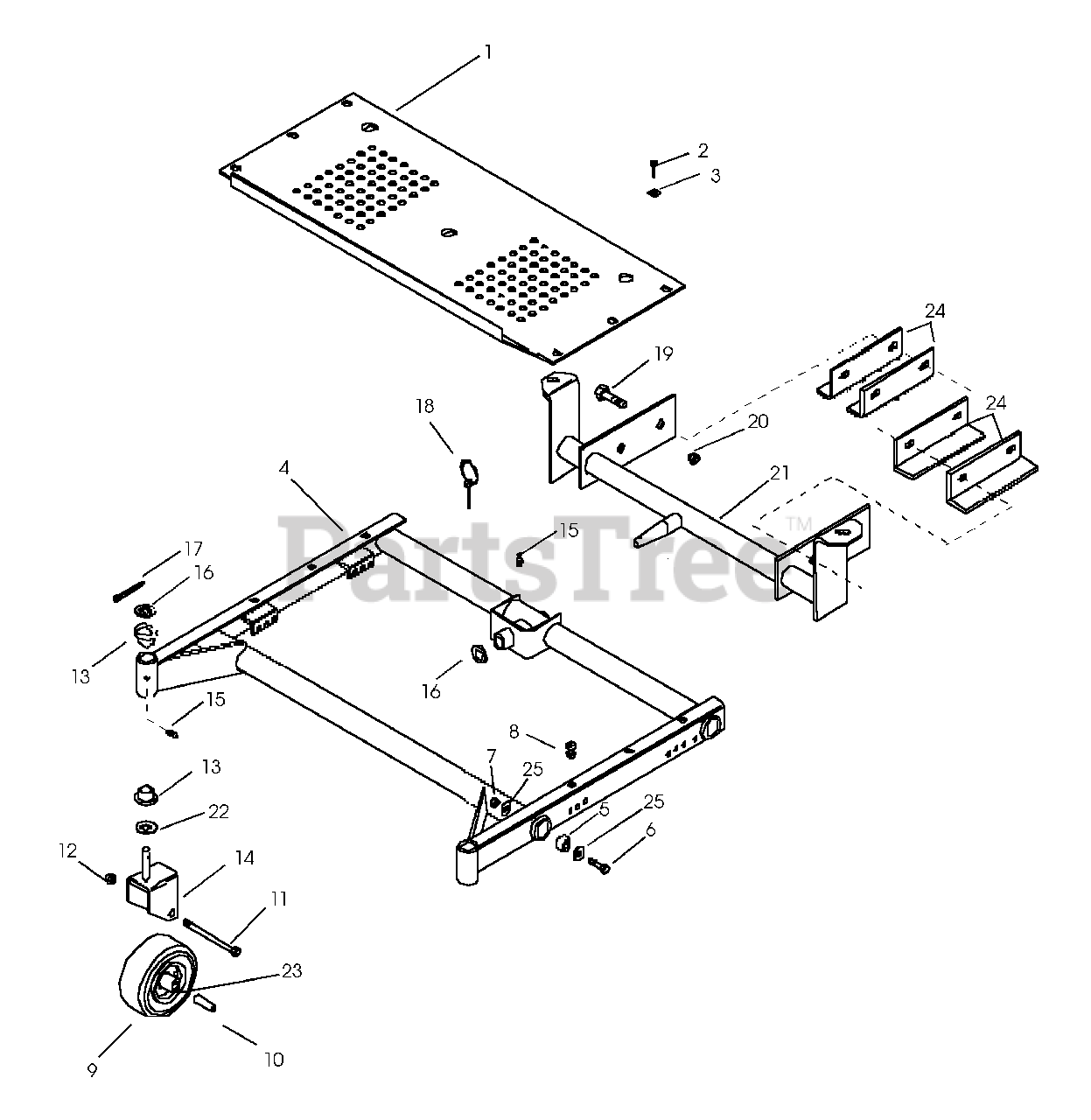

50" MOWER FRAME 1 Parts Diagram

  • Title
1

Gravely 09113100

Footboard

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 06118000

Screw-Machine-Hex Washer Head .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

3

064373

Washer-Flat-Steel .281 x .620 x .065

$

$

Not available

4

Gravely 09114500

Frame-Mower

Note: (Model 007)

$

$

Not available

4

Gravely 09114600

Frame-Mower

Note: (Model 008)

$

$

Not available

5

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06527400

Clip-U-Type

$

$

Not available

9

Gravely 053180

Wheel-Gauge 11 x 4-4
(Superseded to 09105800)

$136.99

$

Usually ships in 4-12 days

0

10

Gravely 09105200

Bushing-Caster Fork

$37.99

$

In Stock, only 3 left!

0

11

Gravely 05964400

Bolt-Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

12

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

14

Gravely 09114200

Weldment-Castor Fork

$256.99

$

Usually ships in 4-12 days

0

15

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

16

Gravely 05421600

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 06712800

Pin-Cotter .18 x 1.50

$1.99

$

In Stock, only 2 left!

0

18

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

19

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.99

$

In Stock, only 3 left!

0

20

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 09104900

Weldment-Mower Frame Mounting

$

$

Not available

22

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

23

Gravely 05408900

Bearing-Ball-Flange .752 x 1.50 x .50

$18.99

$

In Stock, only 3 left!

0

24

Gravely 09114800

Plate/Shim

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
