991007 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER HYDRAULIC LIFT SUSPENSION Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

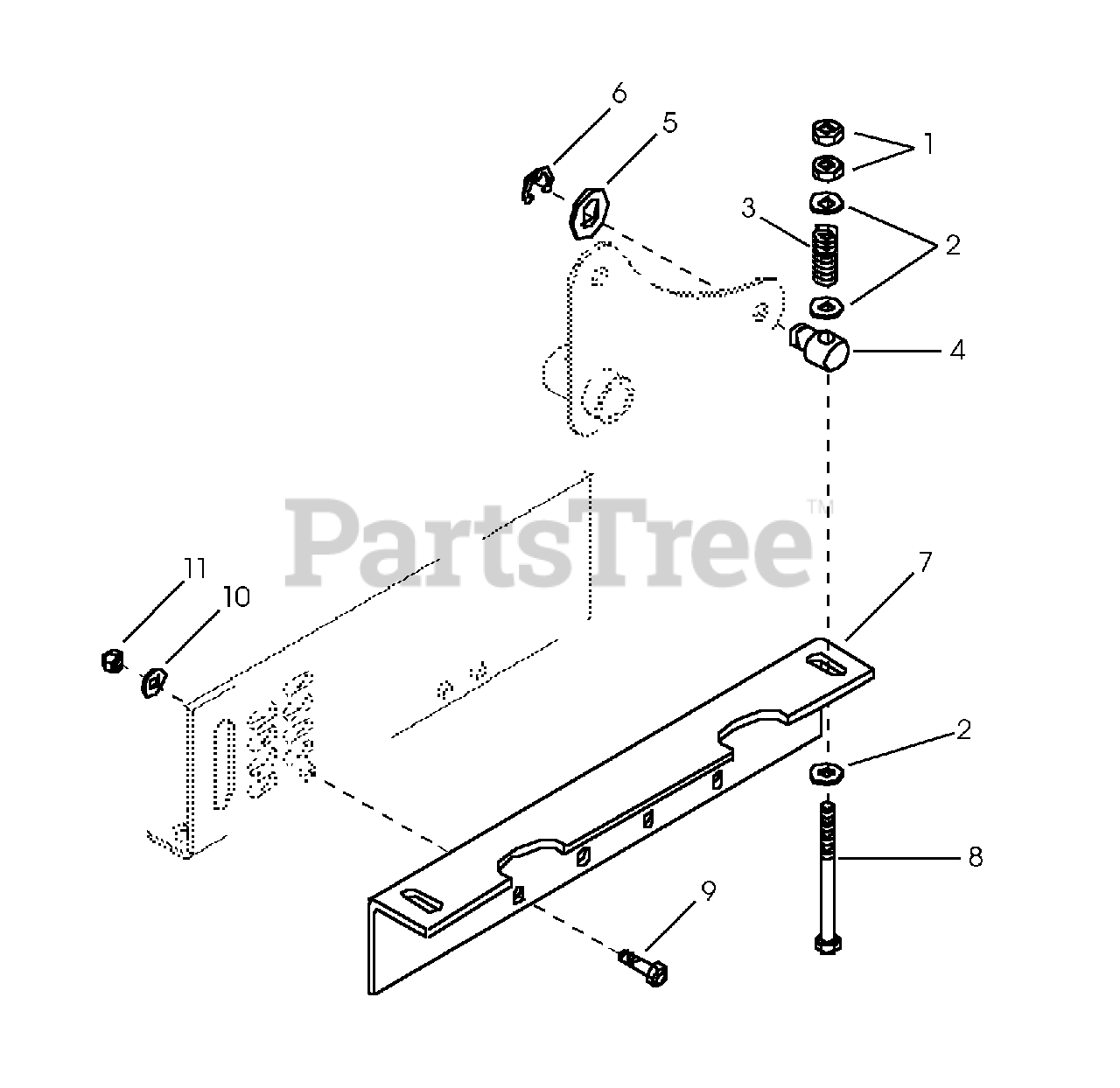

50" MOWER HYDRAULIC LIFT SUSPENSION Parts Diagram

  • Title
1

Gravely 06529300

Nut-Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06441000

Washer-Flat-Steel .52 x .827 x .062
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

3

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

4

Gravely 09212700

Pivot, Mower Lift

$

$

Not available

5

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 036278

Ring-Retaining-External .750 x .050
(Superseded to 05707400)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 09111000

Lift Bracket

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05964400

Bolt-Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

9

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut-Locking-Nylon .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
