991006 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER LIFT SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

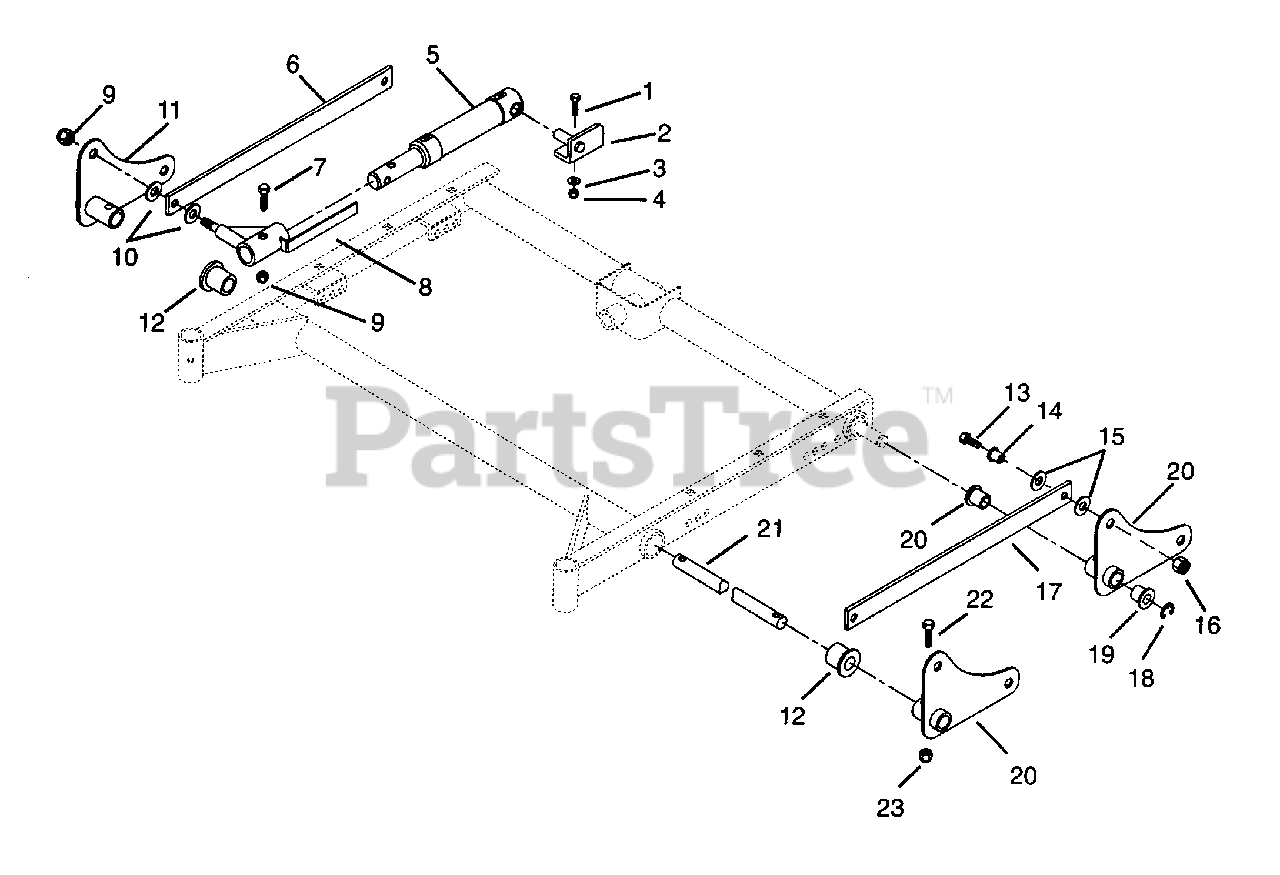

50" MOWER LIFT SYSTEM Parts Diagram

  • Title
1

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

2

Gravely 09103800

Deck Lift Rear Deck Bracket Left Hand

$

$

Not available

3

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 031284

Cylinder, Hydraulic
(Superseded to 08727500)

$

$

Not available

6

Gravely 09111500

Link Bar, Right Hand Deck Lift

$

$

Not available

7

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

8

Gravely 09103900

Lift Ram Terminal Pin

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06412000

Washer-Flat-Steel .563 x 1.375 x .109
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 09103300

Lift Arm Weldment

$

$

Not available

12

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

13

Gravely 180081

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

14

Gravely 05514900

Bushing-Flange .325 x .500 x .513 x .875

$3.99

$

In Stock, Qty 12

0

15

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 09103500

Link Bar - Deck Lift

$

$

Not available

18

Gravely 036278

Seal 1.250 x 1.979
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 09103600

Lift Arm Weldment Left Hand

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 09101900

X-Shaft 50 Deck Lift

$

$

Not available

22

Gravely 180085

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

23

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
